Motion & Infrared RI24-4T&F.pdf

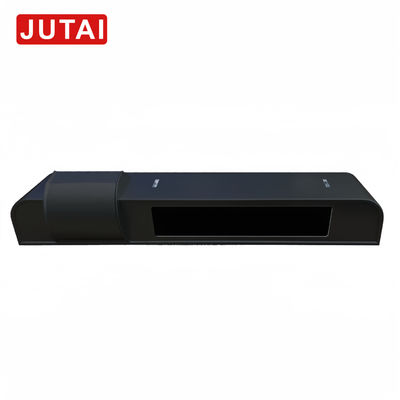

RI24-4T&F Motion & Presence Safety Combined Sensor Product Description

I. General Information

• EMC Test Number: BSTDG 1001420419 26C-1
• Certification: CE
• Device Requirement: Must use protected safety insulation low voltage. All adjustment and maintenance work must be carried out by professional engineering installers.

II. Product Overview

1. Components and Functions
   • Microwave receiving module: 8
   • Microwave sensitivity adjustment knob: Adjusts the microwave sensitivity. Turning clockwise increases sensitivity; counterclockwise decreases it.
   • Background updated time dial switch: Allows selection of 15s or 30min for the background learning process.
   • Activation Indicator: Lights up during activation.
   • Safety Indicator: Provides safety status indication.
   • Wiring socket: For connecting wires.
   • Infrared adjustment screw: Adjusts the infrared detection range. Clockwise moves the range inward; counterclockwise moves it outward.
2. Wiring Details
   • Power input: AC/DC 12~30V(±10%)
   • Cable Length: 2.5m
   • Signal Output: Relay, 1 way motion, 1 way anti-pinch (NO/NC is optional)
   • Wiring Colors and Signals:
     • 2 RED: Power input
     • 1 BLA:
     • 2 Power input AC/DC 12~30V
     • 3 4 BRO COM:
     • 5 GRE COM:
     • 6 WHI NO: Motion signal
     • Presence signal YEL NO (with normally open and normally closed mode options)

III. Detection Ranges

1. Infrared Safety Sensing Field
   • Width & Depth (in meters):
     • Width: 1.3, 1.6, 1.9, 2.2
     • Depth: 0.8, 0.2, 1.3, 1.6, 1.9, 2.2, 2.5 (at different angles: 0°, 15°, 30°, 45°)
   • Detection Range: 1600(W)*800(D)mm
2. Microwave Detection Range
   • Width & Depth: 4m(W)*2m(D)

IV. Technical Specifications

V. Packing List

• Sensor *1
• Operation instructions *1
• Crews bag *1
• 6PIN wire(2.5m)*1
