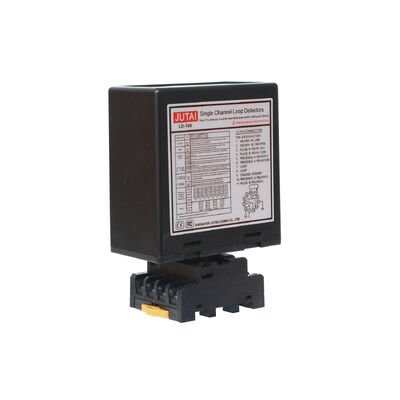

Loop Sensor for Parking Management Compatible with Cars Trucks Motorcycles OEM ODM Supported

Place of Origin	China
Brand Name	JUTAI
Certification	CE
Model Number	LD-100
Minimum Order Quantity	1
Price	Negotiable
Packaging Details	Carton Parcking(13.58.55cm)/0.3kg/unit
Delivery Time	3-5 working days after receipt the payment
Payment Terms	T/T,L/C,D/A,D/P,Western Union,Paypal,,MoneyGram,Alipay
Supply Ability	10000pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details

Power Supplu	12-24v	Sensitivity	20-2000μH
Sensory Regulation	6 Way Selectable/Highest0.010%DL/L/ Lowest 2.56%DL/L	Frequency	Four Step Switch Selectable20-80KHz
Operation Tempts	-40℃ To +70℃ / (-111°F To +158°F)	Fault Output	Blinks Slowly: May Indicate A Short Circuit Or Insufficient Number Of Turns Blinks Faster: May Indicate An Open Loop Or Excessive Number Of Turns
Response Times	Turn-on 10-90MS / Turn-off 10-90MS	Relay	Presence Relay / Fault Relay
Highlight	parking loop sensor for vehicles , loop detector compatible with cars , OEM ODM loop sensor

Leave a Message

Product Description

Loop Sensor for Parking Management Compatible with Cars Trucks Motorcycles OEM ODM Supported 0

Loop Sensor for Parking Management: Compatible with Cars, Trucks & Motorcycles, OEM/ODM Supported

The loop sensor for parking management—also known as a parking loop detector or vehicle loop sensor—is a versatile, customer-centric vehicle detection solution engineered to elevate parking facility efficiency. Designed to seamlessly identify cars, trucks, motorcycles, and commercial vehicles, this professional-grade device integrates flawlessly with parking barriers, access control systems, occupancy guidance tools, and payment platforms—making it ideal for shopping malls, stadiums, office parks, public garages, and logistics centers. What sets it apart is its full support for OEM/ODM customization, allowing businesses to tailor specifications, design, and functionality to match unique project requirements.

Crafted for universal compatibility, the parking loop sensor features 16-level adjustable sensitivity (0.010% to 2.56% DL/L) and a 4-step selectable frequency range (20–80 kHz), ensuring reliable detection of vehicles of all sizes—from lightweight motorcycles to heavy-duty trucks—without false triggers. Its rugged, weatherproof housing (IP-rated) withstands rain, dust, extreme temperatures (-40°C to +70°C), and high humidity, guaranteeing stable performance in both indoor and outdoor parking environments. With dual power options (100–240V AC / 12–24V DC) and dual relay outputs (Presence + Pulse), it offers flexible integration with existing parking management systems, while OEM/ODM support enables brands to create tailored solutions for specific markets or applications.

Core Advantages of Parking Management Loop Sensor

Universal Vehicle Compatibility: Optimized to detect cars, trucks, motorcycles, vans, and heavy-duty commercial vehicles, adapting to mixed-traffic parking facilities.
OEM/ODM Customization Support: Offers full customization of specifications (power, size, sensitivity), housing design, branding, and functional extensions to meet unique business needs.
Reliable & Anti-Interference: Adjustable sensitivity and frequency eliminate interference from adjacent loops, metal structures, or electronic equipment, ensuring precise detection.
Flexible Integration: Dual relay outputs (Presence for continuous monitoring, Pulse for trigger actions) and dual power options enable seamless connection to parking barriers, guidance systems, and payment platforms.
All-Weather Durability: IP-rated weatherproof housing resists harsh environmental conditions, making it suitable for open-air parking lots, covered garages, and coastal or extreme-climate regions.
User-Friendly Operation: LED status indicators (power, detection, fault) and a manual reset button simplify installation, maintenance, and on-site troubleshooting.

Technical Specifications

Parameter	Specification
Product Name	Loop Sensor for Parking Management / Parking Loop Detector
Model	LD100 (AC Power) / LD102 (DC Power)
Power Supply	100–240V AC (LD100) / 12–24V DC (LD102)
Compatible Vehicles	Cars, trucks, motorcycles, commercial vans, heavy-duty equipment
Customization Support	OEM/ODM (specifications, design, branding, functionality)
Frequency Range	20–80 kHz (4-step selectable)
Sensitivity	16-level adjustable (0.010% to 2.56% DL/L)
Response Time	10–90 ms (on/off)
Operating Temperature	-40°C to +70°C
Relay Outputs	Presence Relay (SPDT) + Pulse/Fault Relay (SPDT)
Status Indicators	Red Power LED + Green Detection LED + Yellow Fault LED
Reset Function	Manual reset button + configurable auto-reset
Humidity Tolerance	Up to 95% RH (non-condensing)
Loop Inductance Range	20–2000 µH
Maximum Installation Distance	Up to 30 m (shielded cable recommended for >10 m)
Housing Protection	Weatherproof & dustproof (IP-rated for parking environments)
Warranty	2-year manufacturer’s warranty
Technical Support	24/7 professional technical assistance

Target Applications for Parking Management

This loop sensor is tailored for:

Commercial Parking Garages: Entry/exit barrier control, parking space occupancy monitoring, and access management for malls, office buildings, and hotels.
Open-Air Parking Lots: Vehicle counting, real-time occupancy guidance, and barrier activation for stadiums, parks, and public facilities.
Logistics & Warehouse Parking: Heavy-duty truck and forklift detection for loading dock parking management and fleet access control.
Residential Parking Systems: Gated community access control, visitor parking detection, and resident vehicle recognition.
Airport & Port Parking: Passenger car and cargo vehicle detection for long-term parking facilities and terminal access.
EV Charging Stations: Parking bay occupancy detection for electric vehicle charging points, preventing unauthorized use.
Valet Parking Services: Vehicle presence detection for valet stand activation and efficient parking space allocation.
Mixed-Use Parking Facilities: Universal detection for cars, motorcycles, and delivery trucks in multi-purpose buildings (retail + office + residential).

Built to prioritize versatility, reliability, and customization, this loop sensor for parking management is the ideal partner for businesses seeking standard or tailored vehicle detection solutions. Its universal vehicle compatibility, OEM/ODM support, and durable design make it suitable for diverse parking scenarios, while its easy integration and low maintenance requirements reduce operational costs. Backed by a 2-year warranty and round-the-clock technical support, it’s a trusted investment for parking facility operators, system integrators, and brands looking to enhance their parking management offerings.

Loop Sensor for Parking Management Compatible with Cars Trucks Motorcycles OEM ODM Supported 1

DIP Switch Configuration

DIP 1 and 2 Delay and sensitivity boost
DIP 3 and 4 Relay B output mode pulse presence test
DIP 5 Auto reset 30 min or permanent presence
DIP 6 to 8 Relay A delay 0 to 30 sec
DIP 9 and 10 Frequency selection High Low to avoid interference

Loop Installation Guide

Loop Perimeter	Recommended Turns
3 to 4 m	6 turns
4 to 6 m	5 turns
6 to 10 m	4 turns
10 to 20 m	3 turns
Over 20 m	2 turns

Why Choose JUTAI Loop Detector

15 plus years of manufacturing expertise
Rigorous quality control and pre shipment testing
OEM ODM customization available
Small and bulk orders accepted
2 year warranty and reliable after sales support
Market protection for distributors

Order Now and Enhance Your Vehicle Detection System with JUTAIs Professional Loop Detector

Loop Sensor for Parking Management Compatible with Cars Trucks Motorcycles OEM ODM Supported 2
Switch 2 (Dipswitch Settings)

1.DIP 1 & DIP 2 Setting Special Functions

2.DIP 3 & DIP 4 Setting Relay B Output

3. DIP 5 Setting Automatic Reset

4. DIP 6 & DIP 7 & DIP 8 Setting Relay A Delay
Loop Sensor for Parking Management Compatible with Cars Trucks Motorcycles OEM ODM Supported 6

5. DIP 9 & DIP 10 Setting Frequency (40 K to 100 KHz). Used to avoid the interference

Loop Installation:

Trouble Shooting:

Compared to other brands

Mass Production:

Our production line ensures efficient mass production, rigorous quality control, and thorough pre-shipment testing to deliver Loop detector products of the utmost perfection.

Loop Sensor for Parking Management Compatible with Cars Trucks Motorcycles OEM ODM Supported 11

LD-100 single channel, boxed, 1 type 11pin connects 100-240VAC(EU standard)
LD-102 single channel, boxed, 1 type 11pin connects 12-24VADC(EU standard)
LD-105 single channel, boxed, 2 type 11pin connects 100-240VAC(USA standard)
LD-106 single channel, boxed, 2 type 11pin connects 12-24VADC(USA standard)

Loop Sensor for Parking Management Compatible with Cars Trucks Motorcycles OEM ODM Supported 13

Certification:
