Waterproof Microwave Radar Sensor For Boom Barrier Gate Pedestrian Vehicle Anti Smashing
Product Details
| Operating Frequency | 24.150GHz | Input Voltage | 10-24VDC |
|---|---|---|---|
| Relay Contact | 1A@24VDC/AC | Relay Control Time | 1-6s Adjustable |
| Operating Temperature | -40℃~+70℃ | Waterproof | IP67 |
| Detection Range | 1-6m | Specification | 11.8*9.8*2.6cm |
| Highlight | pedestrian vehicle microwave radar sensor,pedestrian vehicle millimeter wave radar sensor,anti smashing microwave radar sensor |
||
Product Description
Waterproof Microwave Radar Sensor For Boom Barrier Gate Pedestrian Vehicle Anti Smashing
Product Overview

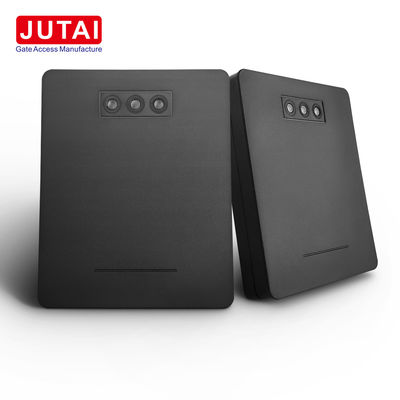

The RD24-6M Barrier Gate Radar Sensor is specifically designed for barrier gates, capable of detecting pedestrians or vehicles during the gate closing process and immediately reopening the gate to ensure safe passage. It is compatible with various types of barrier gates, including straight arm, 90° arm, 180° arm, and fence arm gates.
Key Advantages
- Versatile Compatibility: Suitable for various types of barrier gates, including straight arm, 90° arm, 180° arm, and fence arm gates, meeting diverse application needs.
- Adjustable Detection Range: The detection range can be adjusted from 1 to 6 meters to accommodate different installation scenarios.
- Multiple Detection Modes: Switch between pedestrian and vehicle detection modes, or exclusively detect vehicles, offering flexibility for different access requirements.
- Adjustable Relay Output Hold Time: The relay output hold time is adjustable from 1 to 6 seconds, ensuring an appropriate duration for gate opening.
- High Sensitivity: With high sensitivity, the sensor can accurately and rapidly detect pedestrians and vehicles, providing reliable safety protection.
Technical Features
- Utilizes K-band microwave technology for accurate detection
- Wide coverage and high resolution
- Activates automatic doors, industrial gates, and traffic barriers
- Easy installation at heights up to 20 feet (6 meters)
- Versatile mechanical orientation for precise positioning
- Programmable detection sensitivity and direction of movement
Technical Specifications
| Working Frequency | 24G working Frequency |
|---|---|
| Detection Range | 1-6m Detection Range |
| IP Level | IP65 Water Proof Level |
| OEM Services | OEM and ODM Service can be offered |
