2M 8 Beams Safety Light Curtain Sensor With IP65 For Automatic Door Anti Smahing
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
WeChat: 0086 18588475571
skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Material | Aluminum Alloy And PC Plastic | Operating Temperature | -20~60℃ |
|---|---|---|---|
| IP Rating | IP65 | Theory | Infrared Light |
| Specification | 209*13*9cm | Supply Voltage | DC12-24V |
| Sensing Distance | 15m | Output Way | No/Nc |
| Highlight | 2m 8 beams safety light curtain sensor,ip65 safety curtain sensor,ip65 safety light curtain sensor |
||
Product Description

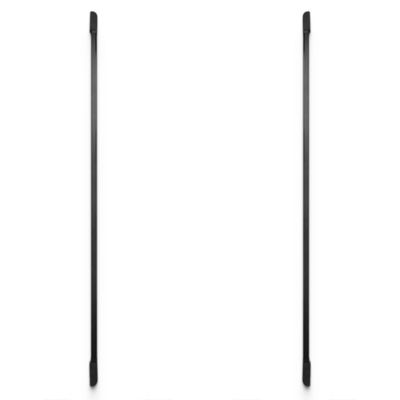

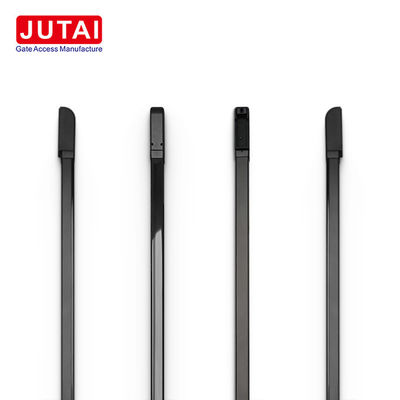

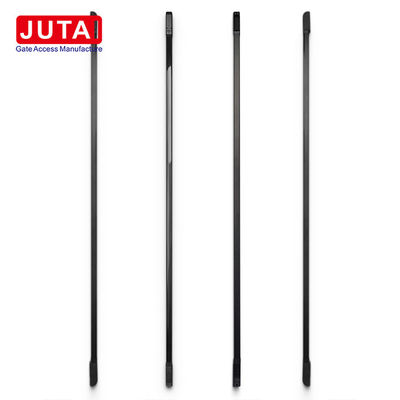

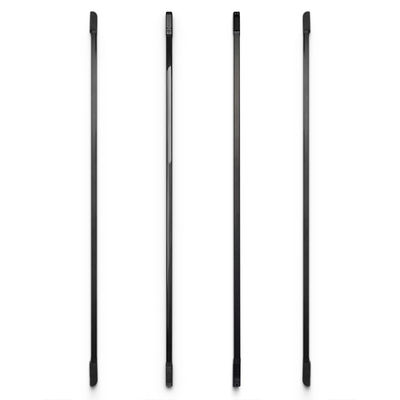

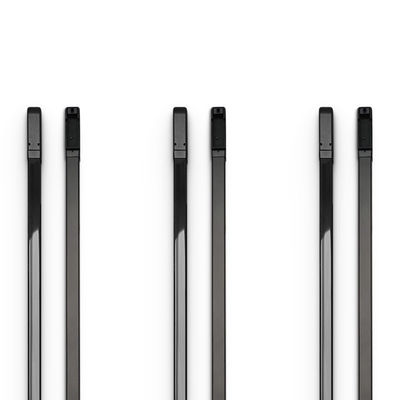

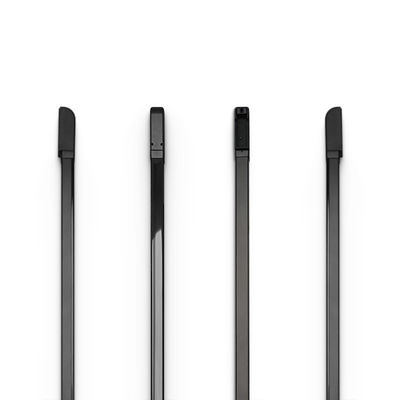

2M 8-Beams safety Light Curtain sensor with IP65 for automatic door anti-smahing
Introducing our Safety Light Curtain – the ultimate solution for industrial door protection, barrier gate safety, and home security. Our advanced version boasts a height of 2 meters and 8 infrared beams, providing enhanced functionality and reliability.
Crafted to withstand harsh light interference and outdoor environments, our product boasts an IP65 waterproof rating and a detection range of over 15 meters.
Functionality:
- Industrial Door Protection: As the door closes, our infrared sensors promptly detect any object passing through, automatically reopening the door for added safety.
- Barrier Gate Safety: Perfect for barrier gates, our sensor swiftly reopens the gate upon detecting any person or vehicle passing through while the gate is closing.
- Home Security: Safeguard your home from intruders with our sensor's relay output, activating upon detecting unauthorized entry.
- Customization Options: Tailored to your requirements, our Safety Light Curtain Sensor is available in various lengths and beam configurations. Choose from our standard models:
- PB3-4L15: Featuring a height of 30cm with 4 built-in infrared beams.
- PB10-4L15: Offering a height of 100cm with 4 built-in infrared beams.
- PB20-8L15: Providing a height of 200cm with 8 built-in infrared beams.
Experience peace of mind and superior safety with our Safety Light Curtain Sensor. Rely on our dependable, customizable solutions to effectively safeguard your premises.
| Parameter | Description |
|---|---|
| Number of Beams | 4/8 (or other customizable options) |
| Height | 30cm, 100cm, 200cm (or other customizable heights) |
| Detection Distance | 15 meters |
| Working Voltage | DC 12-24V |
| Transmitter Operating Current | <50mA |
| Receiver Operation Current | <50mA |
| Response Time | 50/100/150/200ms (adjustable) |
| Trigger Time | Blocks a beam of light, triggers in 2 seconds; blocks adjacent 2 beams or more, triggers immediately |
| Induction Method | Single beam trigger or Multi-beam trigger (selectable) |
| Working Temperature | -20°C to 60°C |
| Ambient Temperature | Up to 90% RH Max (No condensation) |
| Alarm Output | Wired Output, Relay Output 30 VDC @ 2A, 125VAC @ 1A |
| Output Way (Wired Model) | Wired transmission (NO/NC) |
| Rotation Angle | 180 degrees horizontal |
| IP Level | IP65 |
| Material |
Aluminum Alloy and PC Plastic |
| OEM | Yes |
