Safety Light Curtain 1M 4 Beams High Precision IP65 For Gate / Home Security
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
WeChat: 0086 18588475571
skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| IP Rating | IP65 | HS Code | 8531100000 |
|---|---|---|---|
| Specification | 112*13*8.5 | Function Type | Infrared Range And Communication System |
| Detection Type | Photon Detector | Output Signal Type | Digital Type |
| Highlight | safety light curtain 1m 4 beams,ip65 light curtain sensor,ip65 safety light curtain |
||
Product Description

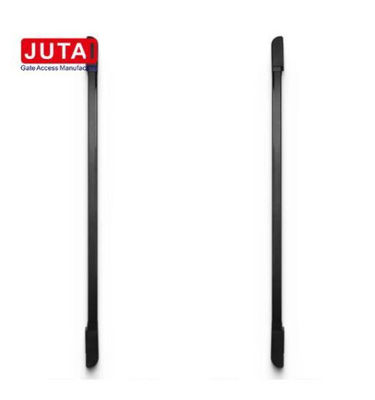

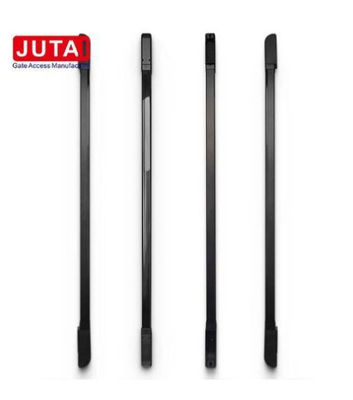

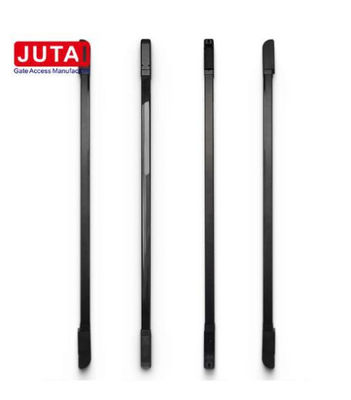

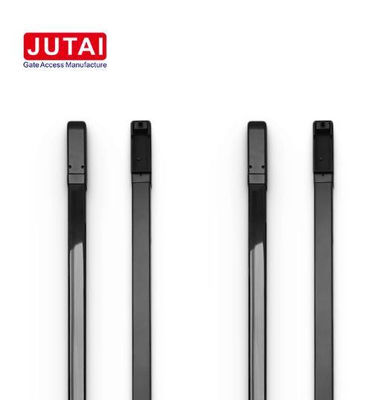

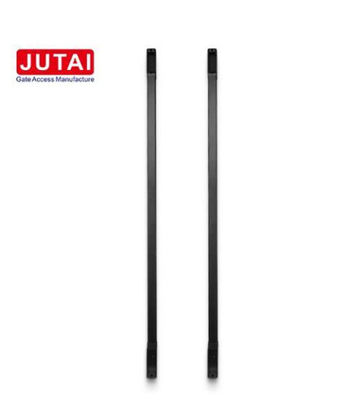

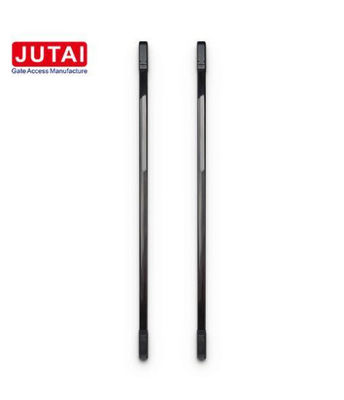

Safety light curtain 1 M 4 beams high precision IP65 For gate / home security
Safety Light Curtain – the ultimate solution for industrial door protection, barrier gate safety, and home security. Our standard version features 1-meter height and 4 infrared beams, offering unparalleled functionality and reliability.
Designed to withstand intense light interference and outdoor conditions, our product boasts an IP65 waterproof rating and a detection range of over 15 meters.
Functionality:
- Industrial Door Protection: When the door is closed, the infrared sensors detect any object passing through, automatically reopening the door for safety.
- Barrier Gate Safety: Ideal for barrier gates, our sensor immediately reopens the gate upon detecting a person or vehicle passing through while the gate is closing.
- Home Security: Protect your home from intruders with our sensor's relay output, which triggers upon detecting unauthorized entry.
Customization Options: Our Safety Light Curtain Sensor is available in various lengths and beam configurations to suit your specific needs. Our standard models include:
- PB3-4L15: 30cm height with 4 built-in infrared beams.
- PB10-4L15: 100cm height with 4 built-in infrared beams.
- PB20-8L15: 200cm height with 8 built-in infrared beams.
Experience peace of mind and enhanced safety with our Safety Light Curtain Sensor. Trust in our reliable, customizable solutions to safeguard your premises effectively.
Wiring Definition
Size
Installation
How to install JUTAI Infrared Curtain Photocell? We have also listed the installation drawings step by step for customers' reference, making the installation simple, easy and fast;
Operation Step
Remove the Top and Bottom Cover, and connect the wires, and lead the thread end from the threaded port.
Confirming the installation position, align the transmitter and receiver in parallel, and mark the hole positions.
Use a percussion drill to drill holes at the location of the wall marking hole, and knock the wall plug into the fixing hole to fix it with screws.
Use M3*25 screws to lock the transmitter and receiver, and connect the power supply to test. If the angle is deviated, you can rotate the aluminum tube for correction. After debugging, lock the rotating screw.
Using M2*8 Screws locked top cover and bottom cover, and testing.
FAQ
During the installation process, we have also made some common FAQ answers to some questions that may appear or are frequently asked, which can save your precious time.
Package
Before introducing the functional advantages of our products, we also present the detailed product packaging details of Jutai infrared curtain photocell to you.
Advantages
JUTAI Curtain Photocell Advanced Function we list as followings
Using unique infrared technology, it can be used under direct sunlight; it has a stable detection distance of 20 meters.
