8 Beam 1.5m Blanking Light Curtain Sensor With No/Nc Output And Aluminum Alloy Shell
Product Details
| Material | Aluminum Alloy | Feature | Corrosion Resistant |
|---|---|---|---|
| IP Rating | IP67 | Supply Voltage | DC12-24V |
| Sensing Distance | 8m | Operating Temperature | -20~60℃ |
| Operating Current | <50mA | Output | No/Nc, COM |
| Working Current | <20mA@DC12V | Specification | 150*2.1*1.5cm |
| Highlight | 8 beam 1.5m blanking light curtain,aluminum alloy light curtain sensor,aluminum alloy blanking light curtain |
||
Product Description

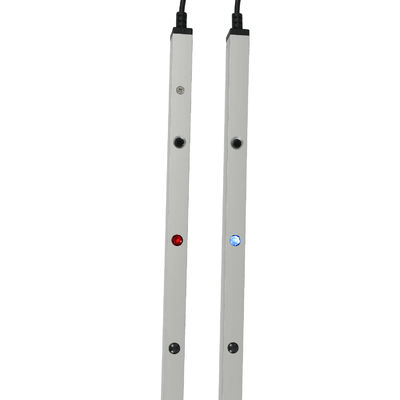

8 Beam 1.5m Blanking Light Curtain Sensor With No/Nc Output And Aluminum Alloy Shell
The Door Sensor Photocell Light Curtain with Strong Light Resistance Security Active Infrared Sensor is a reliable solution for industrial door safety. With an 8m detecting range and fast speed, this sensor ensures the safety of your industrial doors even in challenging lighting conditions. Enhance security measures with this active infrared sensor that provides reliable detection and monitoring.
CL15-8L8 Light Curtain
The CL15-8L8 is a compact light curtain designed for automatic doors and gates. It has a maximum operating range of 10m and can handle door speeds up to 1.6m/s, making it suitable for various applications. The emitter and receiver edges can be easily installed into the guide rail, front, or back of the door. Both blanking and static versions are available to cater to different needs.
Through-beam safety light curtains like the CL15-8L8 are ideal for fast doors and rolling shutter doors, accurately detecting people or objects passing through to prevent accidents. This ensures timely door opening signals to avoid potential safety hazards.
| Features | Integrated in all types of door control systems |
|---|---|
| Mounting Type | Direct integration into the door edge due to door blanking |
| Description | Automatic door safety light curtain sensor |
| Model Number | CL15-8L8 (8-beams, 150cm height) |
| Type | Safety light curtain |
| Usage | High-speed doors, Sectional doors, Rolling doors, Vertical closing telescopic doors, Freight elevators |
| Theory | Through-beam safety light curtains are used for fast doors and rolling shutter doors to prevent clipping (people or objects), and can accurately detect passing people or objects to provide door opening signals to avoid potential safety hazards. |
| Output | NO/NC, COM |
| Working Current | <20mA@DC12V |
| Working Voltage | DC12-24V |
| Detection Range | Maximum 8m |
| Protective Height | Maximum 1225mm (concealing mode), 1305mm (normal mode) |
| Output Method | NO/NC, COM |
| Beams | 8-beams |
| LED Status | Receiver: red light (object blocked), blue light (unblocked), blue light flash (Emitter and receiver not aligned). Transmitter: blue light constant (normal), red light flash (voltage below 9v, above 28v) |
| Operating Temperature | -20 ~ +70℃ |
| Protection Level | IP67 |
| Shell Material | Aluminum alloy |
Enhance industrial door safety with our 1500mm Infrared Light Curtain sensor. Ideal for fast-speed doors with an 8m detecting range.
Enhance industrial door safety with the 1500mm Infrared Light Curtain sensor from Shenzhen Jutai Comm Co., Ltd. This sensor can detect up to 8m with fast speed, ensuring a secure environment in industrial settings. Invest in safety today!
