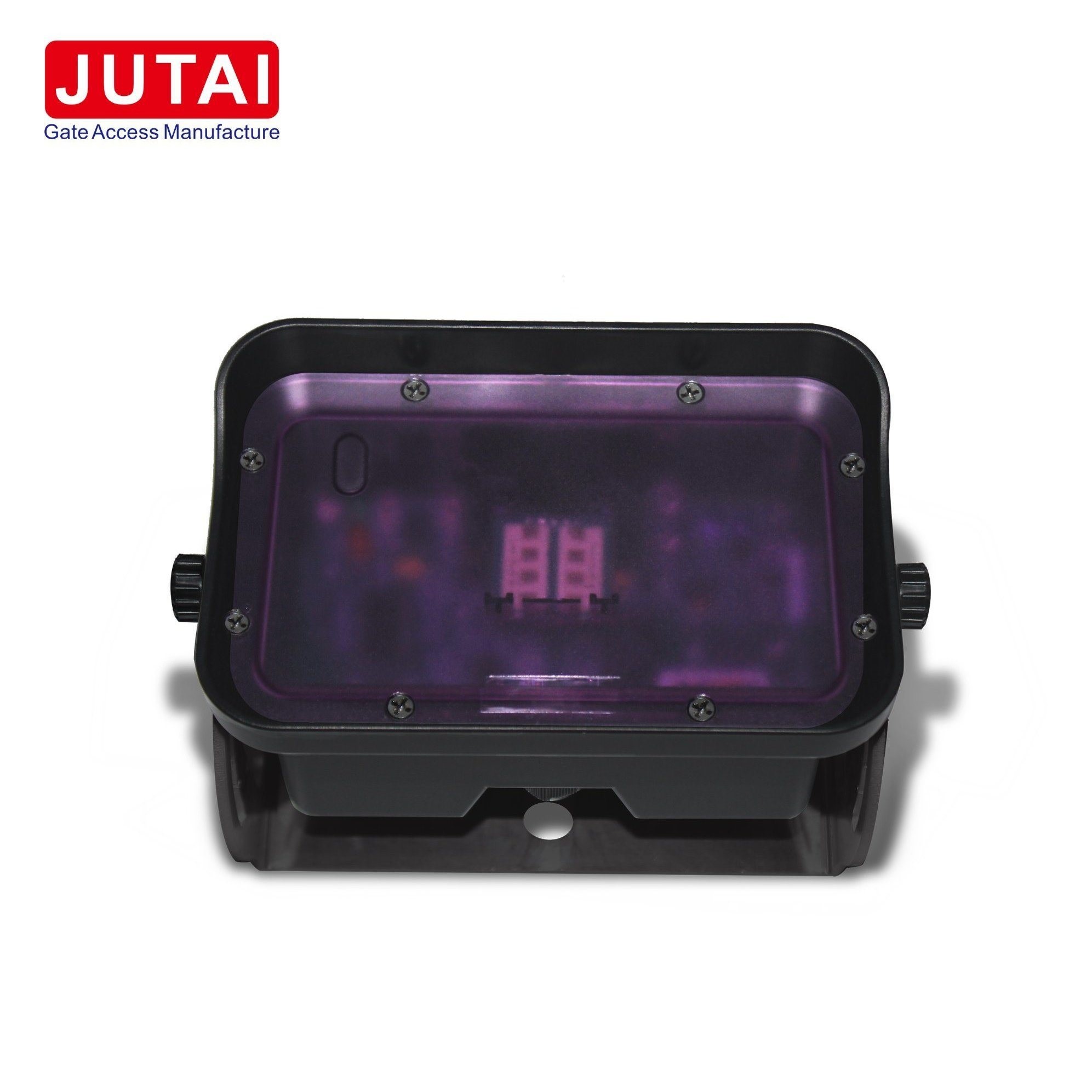

24GHz Doppler Microwave Motion Sensor 12-28VAC 12-36VDC
| Place of Origin | China |
|---|---|
| Brand Name | JUTAI |
| Certification | FDA, E-MARK, CE, ISO, FCC, RoHS, DOT, ASTM, AS/NZS, CCC, GS |
| Model Number | RVP42-9ME |
| Minimum Order Quantity | 1 |
| Price | Negotiation |
| Packaging Details | Cartoon |
| Delivery Time | 5-8 days |
| Payment Terms | T/T, L/C, D/A, D/P, Western Union, Paypal, , MoneyGram, Alipay |
| Supply Ability | 1000 pieces per month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
WeChat: 0086 18588475571
skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Output | 2 Relays Output. Max.48 VAC/DC. Max.Current 1A | Power Supply | 12-28VAC, 12-36VDC |
|---|---|---|---|
| Frequency | 24.125GHz | Detection Height | 2m To 9m |
| HS Code | 9031809090 | Package Size | 28.00cm * 13.00cm * 10.00cm |
| Highlight | 24GHz microwave motion sensor,24GHz doppler microwave motion sensor,24GHz doppler motion sensor |
||
Product Description
24GHz Waterproof Microwave Motion Sensor For Automatic Industrial Gate Opening -30~60℃
Product Description:
Product Name: 24GHz Microwave Motion Radar Sensor
Description:
The 24GHz Microwave Motion Radar Sensor is an advanced sensor designed for industrial doors and automatic gates. It can be widely used in high-speed doors, cold storage doors, garage doors, warehouse doors, and also in street lighting systems. This sensor features intelligent energy-saving functionality, whereby it maintains partial brightness when no objects are detected, and switches to full brightness upon detecting objects, thereby optimizing energy usage.
Key Features:
- Cross Traffic Masking and People/Vehicle Differentiation: The sensor includes cross traffic masking functionality and can accurately differentiate between people and vehicles, reducing false alarms and enhancing system reliability.
- Dual Relays: Equipped with dual relays, enabling diverse control functions to meet various application requirements.
- Installation Height Range: Suitable for installation heights ranging from 2 meters to 9 meters, accommodating different types and sizes of doors and lighting fixtures.
- Remote Control Option: Offers a remote control option for convenient parameter setting and adjustment.
- Bluetooth Version: Specifically designed Bluetooth version allows users to adjust sensor parameters through a mobile application, facilitating easy operation and management.
The 24GHz Microwave Motion Radar Sensor is the ideal choice for your industrial door and automatic gate systems. Its advanced features and reliability will bring greater convenience and efficiency to your operations.
Product parameters:
| Application technology | Doppler radar |
| Transmission frequency | 24.125GHz |
| Transmission power | <20dBm |
| Detection height | 2.0m~9.0m |
| Angle adjustment | 0°-90°longitudinal |
| Detection speed | 5cm/s~25km/s |
| Detection area(30°Angle) | 3.0m*3.5m@height:2m 6.5m*8.5m@height:9m |
| Operation current | <100mA |
| Power frequency | 50Hz |
| Temperature range | -30 ºC~+60 ºC |
| Relative humidity | 0%to 95%,no condensation |
| Protection grade | IP65 |
| Relay output | 24VDC@1A [email protected] |
| External dimensions | 164mmx111mmx94.5mm |
| Cable length | 7m |
| Sensor weight | 650g |
| Operation voltage |
12~36VADC |
Detection Area

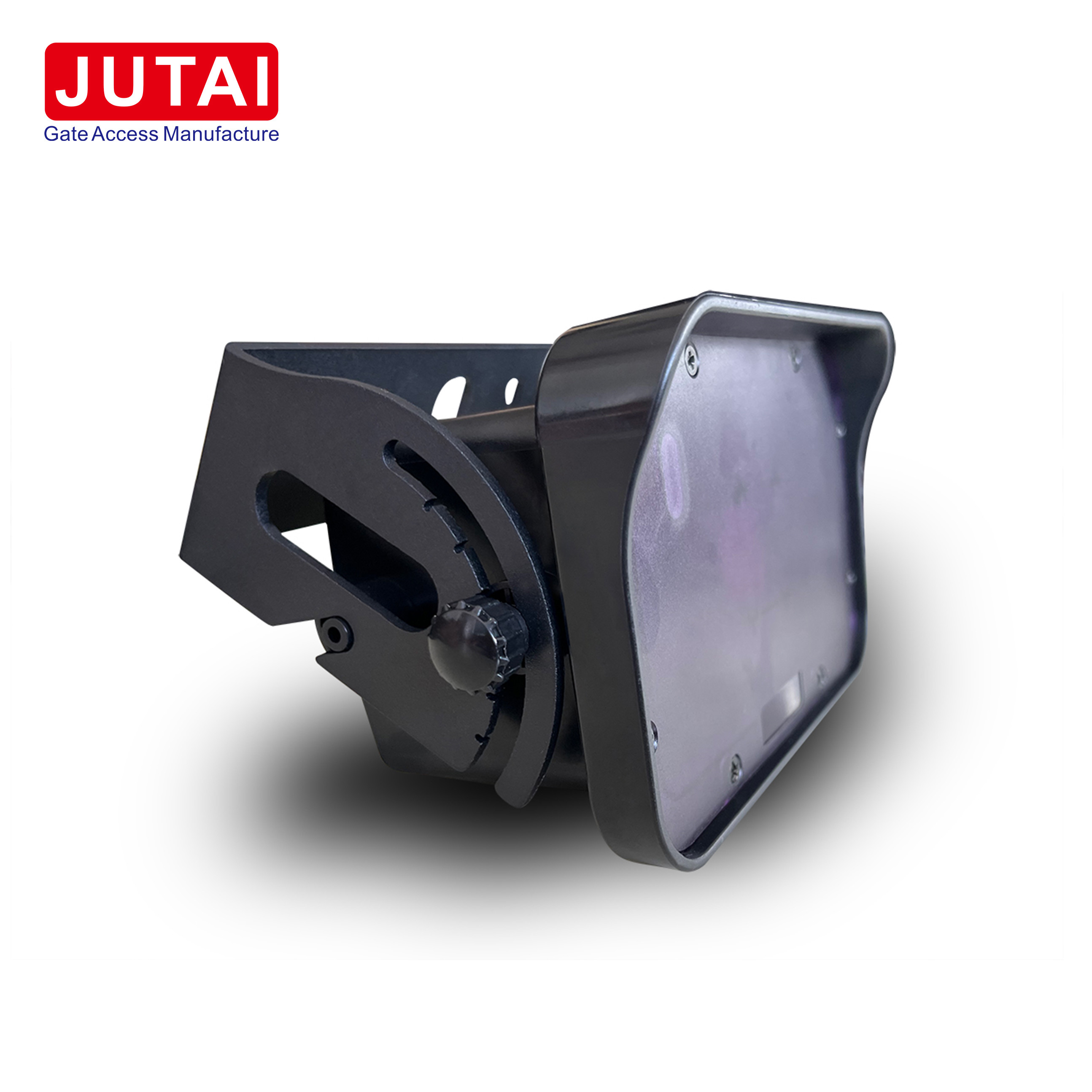

The microwave range offers a narrow or wide detection area that makes it suitable for all types of installations. The narrow setting is easy to set by simply clicking the narrow lens onto the radar module. By turning the module left or right and tilting it up and down the microwave can be adjusted quickly and easily for many different applications. No external set-up device is needed. Adjust the detection area with a Sensitivity potentiometer.
Dual Relays Outputs
It is a fully customizable, hands-free radar motion sensor equipped with dual relays:
1. Vehicle-detection relay active
2. Person-detection relay active
3. Vehicle-detection relay and person-detection relay both active
The below setting shows only active the vehicle-detection mode, not for person-detection. it can be set according to your project requirement.
Direction Recognition
Energy Savings
It increases energy efficiency and controls pests by limiting activation to approaching traffic only. Meaning the door will only be left open when someone is using it, and will automatically close when they depart.
Remote Control / Bluetooth APP Setting
Solutions
1. Vehicle-detection relay active
2. Person-detection relay active
3. Vehicle-detection relay and person-detection relay both active
The below setting shows only active the vehicle-detection mode, not for person-detection. it can be set according to your project requirement.
Direction Recognition
It can be set the direction detection:
1. motion forward and close to the sensor
2. backward movement away from the sensor
3. Forward and backward.
Energy Savings
It increases energy efficiency and controls pests by limiting activation to approaching traffic only. Meaning the door will only be left open when someone is using it, and will automatically close when they depart.
Open doors without having to stop and push a button. Install or Retrofit For both dock and pedestrian doors with automated solutions.
Adjustable Detection Settings modes of detection filtering for pedestrian, forklift, and parallel traffic rejection. It can also distinguish between approaching and departing traffic.
Adjustable Detection Settings modes of detection filtering for pedestrian, forklift, and parallel traffic rejection. It can also distinguish between approaching and departing traffic.
Remote Control / Bluetooth APP Setting
Remote control / Bluetooth APP programming enables the user to quickly and safely make changes from the ground.
1. Mounting height setting
2. Relay parameter setting
3. Detection area setting
4. Relay holding time setting
5. Direction recognition setting
6. Crossing traffic setting
7. Anti-interference function setting
8. Manual industrial door opening setting
9. Exit configuration mode
10. Reset
1. Mounting height setting
2. Relay parameter setting
3. Detection area setting
4. Relay holding time setting
5. Direction recognition setting
6. Crossing traffic setting
7. Anti-interference function setting
8. Manual industrial door opening setting
9. Exit configuration mode
10. Reset
Solutions
Applications
1. Factory entrances
2. Pedestrian and parallel traffic rejection
3. Parking garage detection
4. Barrier arm activation
- Customization with OEM logos is available.
- Benefit from long-term technical support, including online assistance.
- Explore our range of complementary products, including photocells, safety light curtains, and card readers, all tailored for gate automation applications. Expand your business with our comprehensive solutions.
