Loop Coil Vehicle Detector Loop Coil Sensor UL1332 Certified
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
WeChat: 0086 18588475571
skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Model NO. | JTHT-11 | Material Shape | Round Wire |
|---|---|---|---|
| Range Of Application | Cold Resistant | Specification | 1 Roll 305m 2.25kg |
| HS Code | 9031809090 | Application | Underground |
| Highlight | loop coil vehicle detector UL1332 certified,Cold Resistant loop coil detector,loop coil sensor |
||
Product Description

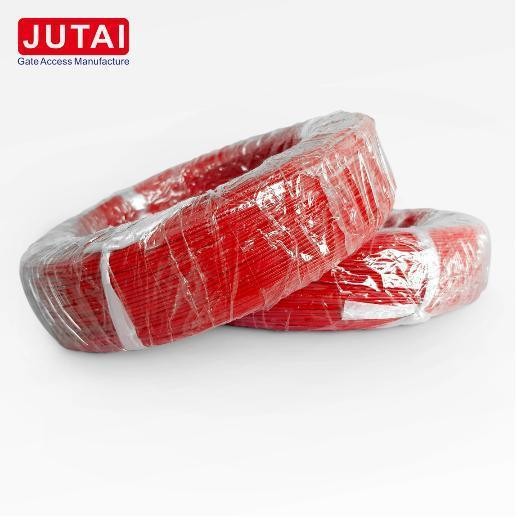

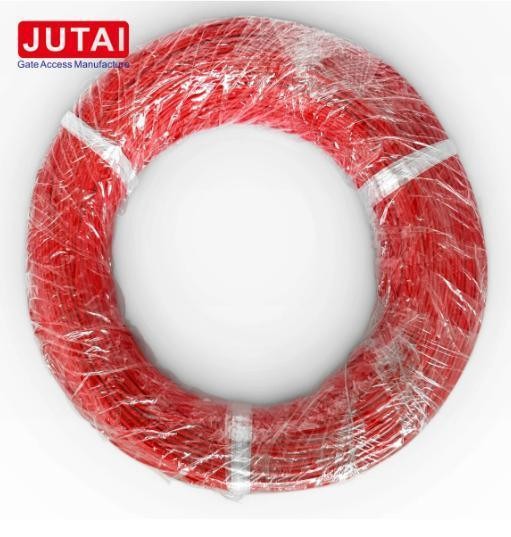

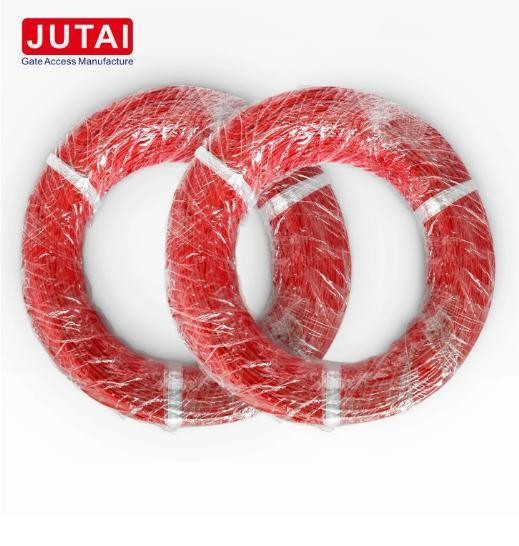

Loop Cable for Loop Detectors Underground -40~200℃ with UL1332 certified
Product Description
JUTAI Loop coil has UL1332 certified.
- It has excellent corrosion resistance oil resistance, strong acid, strong alkali resistance to high voltage.
- Small loss at high frequency, no moisture absorption, insulation resistance;
- It has excellent flame resistance, aging resistance, long service life.
- Anti-corrosion, anti-combustion, perfect insulation, Acid-Alkaline resistant
| Model: JTHT-11 |
| Size: 0.5m*2 |
| Temperature: -65ºC to +200ºC |
| One Roll Length: 305m |
| Material: Silicone rubber and standard silver-plated copper wire |
| Color: Red and Black |
Loop Installation
All permanent loop installations should be installed in the roadway by cutting slots with a masonry cutting disc or similar device. A 45° crosscut should be made across the loop corners to reduce the chance of damage that can be caused to the loop wire insulation at right angle corners.
Loop detectors are used to detect the presence of vehicles. The loop is connected to the detector. find more LD-100 loop detectors specification.
Exit loops are used to open gates to allow a vehicle's exit.
Safety loops are used to prevent a gate from closing on a vehicle. Two loops can be wired to one detector. This is frequently the case in safety loops. Loops are placed in front of and behind the gate.
Shadow Loops are typically used in commercial locations. They close the gate as soon as a vehicle passes over them deterring other vehicles from tailgating in behind them.
