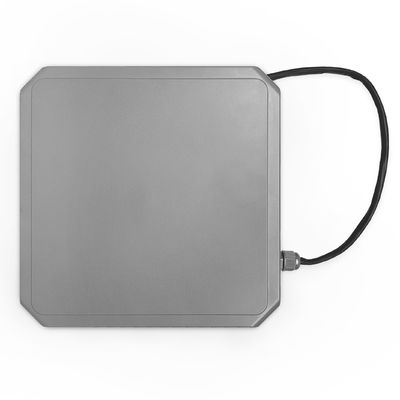

902-928MHz / 860-868MHz Parking Access Encrypted Long Range UHF RFID Reader Anti Cloning
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
WeChat: 0086 18588475571
skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Reading Distance | 1-9m | Application | Parking, Hospital, Library, Company, Bank, Store |
|---|---|---|---|
| Power Supply | Current Transformer, Input 220V, Out 9V/3A | Frequency Range | 902-928MHz/860-868MHz |
| Antenna | Circular Polarization/Linear Polarization | Max Output Power | 30dBm (Adjustable) |
| Output Interface | Wiegand26/34, RS485 | PC Interface | RS232 |
| Working Temperature | -25℃~+70℃ | Installation | U-Shaped Pole |
| Encryption Version | Anti-Cloning | Product Size | 25.5*25.5*4.2cm |
| HS Code | 8471702000 | Interface | Serial Port, Wiegand |
| Highlight | 860-868MHz Parking Access UHF RFID,UHF RFID Reader Anti Cloning,Encrypted Long Range UHF RFID Reader |
||
Product Description
Encrypted UHF RFID Parking Access Reader with Waterproof Design and Durable Construction
Product Name: Encrypted UHF RFID Parking Access Reader with Waterproof Design and Durable Construction
Product Description: The JUTAI passive low-cost hands-free parking solution integrates an ultra-high-frequency long-range reader and utilizes UHF band RFID technology. It is targeted at a low-budget car parking access control system solution. This solution is mainly used in long-range parking systems. Customers can choose the JUTAI parking control board and use the entire JUTAI parking access control software. They can also integrate it into their own parking access control software through the Wiegand 26/34 interface or RS485. This solution is mainly used in a total hands-free parking solution. By directly connecting to the JUTAI parking access control software via TCP/IP, there is no need for an additional converter, which is very easy and convenient for users. In rainy weather, there is no need to roll down the car window or use hands to take the card, it is a completely hands-free but low-cost solution.
Product Characteristics and Advantages:
- Operating Frequency: 860~868MHz or 902~928MHz, adjusted according to different countries and regions.
- Wiegand Interface: 26/34 interface, customers can select the entire solution or an easy-to-integrate different access control system.
- Waterproof Rate: IP65, no need to add an additional device in rainy days.
- Built-in Lightning Protection Device: Inside the reader, there is a built-in lightning protection device.
- Directional Antenna Technology: Recognizes only the front of the card reader.
- Power Consumption: Less than 0.5W, in line with international environmental standards.
- Usage: Used in a metal chassis or independently.
- Supported Protocols: Supports passive RFID cards that comply with ISO1800-6B, ISO1800-6C (EPC G2) protocols.
- Working Mode: Ground sensor mode or continuous mode.
- Reserved RS232/RS485 Interface: Can be connected to a PC.
- Storage Records: 100,000 records can be saved (cycle/lost).
- Time Zone Groups: 64 different time zone groups can be set according to customer different requirements.
The JUTAI passive low-cost hands-free parking solution has the advantages of convenient operation, diverse functions, strong adaptability, energy conservation, and environmental protection. It is a parking access control system solution with high cost performance.
JUTAI Parking system:
Not only do we offer encrypted UHF solutions, but we also provide a complete parking management system. With over 30 dedicated developers, we focus on independently developing software platforms to meet your customized needs. Whether it's tailored services or comprehensive after-sales support, we're here to provide professional assistance, so you won't have to worry about post-purchase debugging or other issues. As bank card and mobile payments gradually become mainstream, our development team can integrate with local banks and online payment platforms to facilitate convenient payments for your parking management system.
Details Definition Of Long Range UHF Long Range Reader Access Control Systems Kit
| Name | Long Range UHF RFID Card Reader Access Control Systems Kit |
|---|---|
| Operating Frequency | 902-928MHZ |
| Protocol | SO18000-6C(EPCGEN2) |
| Frequency Hopping Mode | Fixed Frequency Band and FHSS Software Programmable |
| Antenna | 9dBi circular polarize antenna (Integrated) |
| Output Power | 0dBm~18dBm(Adjustable) |
| Read/Write Range | Max Read Range: 20m, Max Write Range: 6m |
| Operating Mode | Master-Slave Mode(Online Mode); Time Scheduled Modes; Trigger Mode |
| Power | 9V-12V |
| Communication Port | RS-232/Wiegand Interface: Wiegand26 & Wiegand34 Supported; RS-485/10/100MEthernet, GPRS.WIFI(for Customized Model only) |
UHF long range reader Specifications
- Support RS232, RS485, Wiegand 26/34 interface. Note that Not support IOS system.
- Integrated12dbi built-in antenna HCP circular
- Range:15m~620.
- Application: Parking and Warehouse management etc. Industrial design, water resistant, easy to install.
- Work Mode: auto-running, interactive, and trigger-activating.
- Support adjacent discriminant function, prevent the same card repeat reading in a certain period
- Low power dissipation with single +9-12v DC power supply
Connection Of 860Mhz-960Mhz EPC Gen2 Passive Long Range Handheld UHF RFID Android Reader
| Red | DC+9~12V | Blue | WG D1 | Light Pink | RS485A+ | Brown | TXD ---(RS232) |
| Black | 0V | Green | WG D0 | Yellow Green | RS485B- | White | RXD ---(RS232) |
| Black | 0V Ground | Yellow | Short cut to loop signal |
Commissioning Of 860Mhz-960Mhz EPC Gen2 Passive Long Range Handheld UHF RFID Android Reader
-
Readers should not face to each other to avoid reading conflicts.
-
The distance between two readers is at least 2.5m.
-
U-shaped mounting bracket can be used to adjust the angle of the reader in order to achieve the best reading distance.
Do not stick the card in the palm of the hand or on the body, and do not use the card posted on the metal object, it will affect the reader results.
The distance between windscreen and card
860Mhz-960Mhz EPC Gen2 Passive Long Range Handheld UHF RFID Android Reader Application
-
Car Parking Systems
-
Through -wall Reading Application
-
Personal Identification
-
Any Long Range Reading Application
Installation
