Rolling Code Encrypted Remote Control Receiver with 4 Relay Output and 100 Meters Distance for Gate Access Control
| Place of Origin | China |
|---|---|
| Brand Name | JUTAI |
| Certification | ISO9001, RoHS, FCC, CE |
| Model Number | RC-4 |
| Minimum Order Quantity | 1 |
| Price | Negotiation |
| Packaging Details | Cartoon |
| Delivery Time | 5 - 8 working days |
| Payment Terms | T/T,L/C,D/A,D/P,Western Union,Paypal,MoneyGram,Alipay |
| Supply Ability | 1000 pieces per month |
Product Details
| Frequency | 433MHz | Working Distance | 100 |
|---|---|---|---|
| Add And Delete ID | Short -Circuit Or Special Remote Controller | Encryption | Via Special USB Cable |
| Application | Gate Access Control System | Didital Modulation | Ask |
| Quality Warranty | 1 Year | Transport Package | Cartoon |
| HS Code | 8526920000 | Certification | ISO9001, RoHS, FCC, CE |
| Highlight | Rolling Code Encrypted Remote Control Receiver,Rolling Code Receiver 4 Relay,Rolling Code Encrypted Receiver 100 Meters |
||
Product Description
Rolling Code Encrypted Remote Control Receiver 4 Relay Distance 100 Meters
Rolling Code Encrypted Remote Control Receiver 4 Relay Distance 100 Meters
Product Introduction
JUTAI Gatelink Solution includes the gate receiver, which can connect to your barrier gate controller, auto gate motor controller, etc.

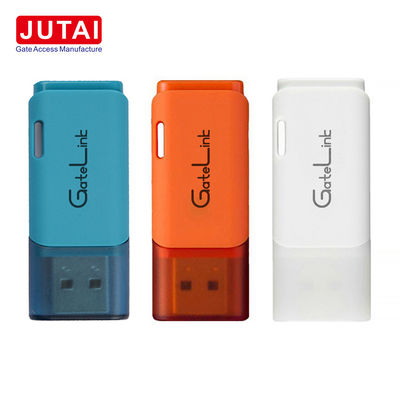

- Works with UR-4O USB auto-opening gate (plug in car)

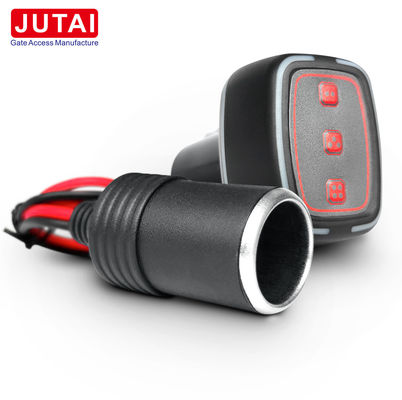

- Works with UR-43K auto-opening gate with remote button (plug in car)

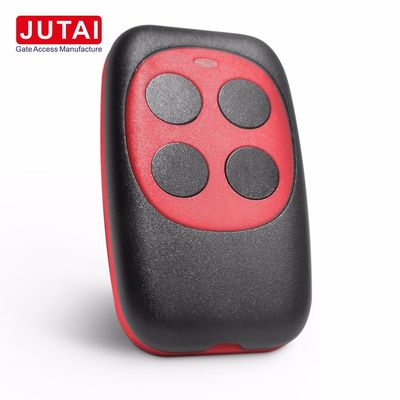

- Works with RM-4K 4-button remote control (handheld)

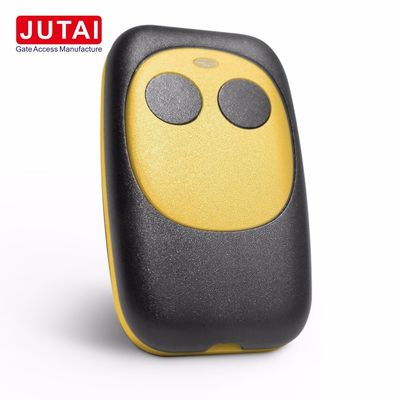

- Works with RM-2K 2-button remote control (handheld)
REC-3 USB cable for programming encrypted software allows setting the same PIN password between receiver and transponder. This flexible solution enables direct control of your market projects.
JUTAI Gatelink All-in-One Solution Technical Parameters
- Frequency: 433MHz
- ASK system
- Code: Anti-cracking rolling coding
- Working distance: >35 meters in air
- Add and delete ID mode: Through short-circuit or special remote controller
- Encryption: Via USB cable (customizable)
- Working voltage: 12-24VDC, 12VAC
- Storage capacity: 32 ID numbers (larger capacity customizable)
JUTAI Gatelink All-in-One Solution Applications
- Autogate entry access control
- Boom barrier gate entry management
- Smart auto parking lock application
How the System Works
- Save the USB Transponder ID number into the JUTAI Remote Receiver
- Connect the receiver to the gate controller. When the receiver receives a signal from the USB transponder, it determines whether the ID is available
- If available, the relay inside the receiver outputs signal and gate opens
- When car enters home guard and leaves the safe loop coils, the gate closes automatically
- The USB Remote Transponder gets power from the car. When car is started, the USB transponder cannot get power and will not work
Technical Parameter (USB Transmitter)
| Parameter | Specification |
|---|---|
| Frequency | 433MHz |
| Electricity | Getting Electricity From The Car |
| Code | Anti-cracking rolling code |
| Working Distance | 30m inside of the car |
| Add and Delete ID mode | Through short-circuit or special Remote Controller |
| Encryption | Via Special USB Cable |
| Working Voltage | 5VDC |
| Power Interface | USB |
Technical Parameter (Receiver)
| Parameter | Specification |
|---|---|
| Frequency | 433MHz |
| Digital Modulation | ASK |
| Code | Anti-cracking Rolling Code |
| Working Distance | 30m in the air |
| Add and Delete ID mode | Through short-circuit or special Remote Controller |
| Encryption | Via Special USB Cable |
| Working Voltage | 12-24VDC |
| Storage Capacity | 32Pcs ID number or more (Optional) |

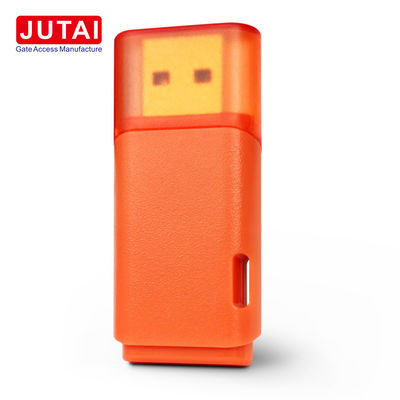

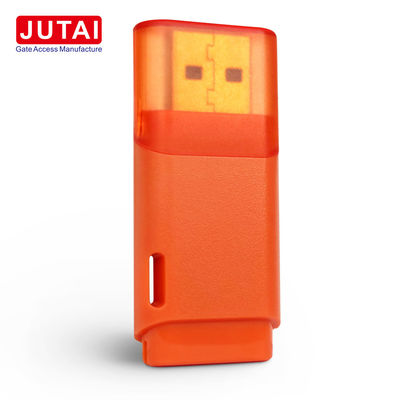

Size and Diagram for USB Transmitter
