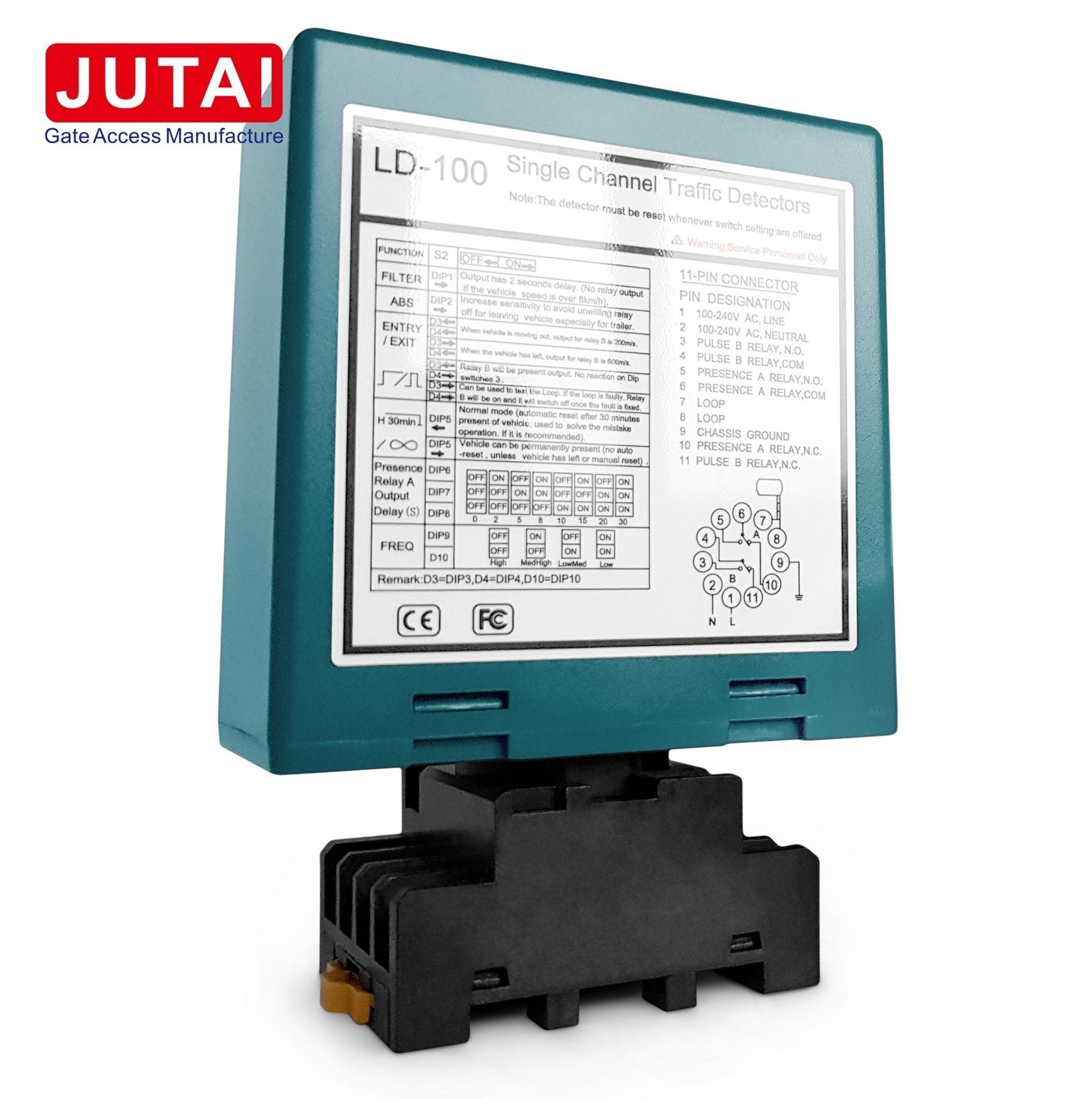

110-240V Single Channel Boom Barrier Loop Detector 40000V Lightning Protection
| Place of Origin | China |
|---|---|
| Brand Name | JUTAI |
| Certification | CE |
| Model Number | LD-100 |
| Minimum Order Quantity | 1 |
| Price | Negotiable |
| Packaging Details | Carton Parcking(13.5*8.5*5cm)/0.3kg/unit |
| Delivery Time | 3-5 working days after receipt the payment |
| Payment Terms | T/T, L/C, D/A, D/P, Western Union, Paypal, , MoneyGram, Alipay |
| Supply Ability | 10000pcs/month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
WeChat: 0086 18588475571
skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Power Supplu | 110-240v | Self-turning Range | 20-2000μH |
|---|---|---|---|
| Sensitivity | 6 Way Selectable/Highest0.010%DL/L/ Lowest 2.56%DL/L | Frequency | Four Step Switch Selectable20-80KHz |
| Operation Tempts | -40℃ To +70℃ / (-111°F To +158°F) | Fault Output | Blinks Slowly: May Indicate A Short Circuit Or Insufficient Number Of Turns Blinks Faster: May Indicate An Open Loop Or Excessive Number Of Turns |
| Response Times | Turn-on 10-90MS / Turn-off 10-90MS | Relay | Presence Relay / Fault Relay |
| Highlight | single channel boom barrier loop detector,boom barrier loop detector 40000v lightning protection,110-240v loop detector for boom barrier |
||
Product Description
Single Channel Loop Sensor 110-240V For Parking Barrier Gate Safety
Product Name:Parking Barrier Gate Loop Detector (Loop Sensor)
Description:The Parking Barrier Gate Loop Detector is a sensor specifically designed for parking barrier gates, enabling efficient identification and detection of vehicles of all types, including oversized vehicles, trucks, motorcycles, and more, ensuring automatic gate opening and closing.
Advantages:
- Wide Sensing Range and High Sensitivity: With a sensing range from 15 to 2000μH and high sensitivity, it accurately detects various vehicles, ensuring reliable detection performance.
- Automatic Reset Function: The sensor automatically resets in case of a malfunction, eliminating the need for manual intervention and enhancing system stability and reliability.
- Multiple Detection Level Selection: Featuring 16 selectable levels ranging from 0.008% DL/L to 2.50% DL/L, it can be adjusted according to specific requirements, suitable for different application scenarios.
- 40000V Lightning Protection: Equipped with robust 40000V lightning protection, it effectively safeguards the sensor against damage from lightning strikes.
- Wide Operating Environment Range: Suitable for a wide range of operating environments, with a temperature range from -40°C to +70°C, ensuring stable operation even in harsh weather conditions.
The Parking Barrier Gate Loop Detector (LD-100) is a powerful and reliable sensor for parking barrier gates, offering wide sensing range and high sensitivity, automatic reset function, multiple detection level selection, 40000V lightning protection, and wide operating environment range. It provides a dependable solution for parking management.
Product parameters:
| Specification | Value |
| Self-turning Range | 20-2000μH |
| Sensitivity | 16-way selectable / Highest 0.010% DL/L / Lowest 2.56% DL/L |
| Frequency | Four-step switch selectable 20-80KHz |
| Power Requirements | 110-240VAC (48 to 62Hz) |
| Operation Temp | -40℃ to +70℃ / (-111°F to +158°F) |
| Fault Output | Blinks slowly: may indicate a short circuit or insufficient number of turns <br> Blinks faster: may indicate an open loop or excessive number of turns |
| Response Times | Turn-on 10-90MS / Turn-off 10-90MS |
| Visual Indications | Power LED - Red <br> Channel LED - Green |
| Reset | Reset by push button on the front of the enclosure |
| Relay Output | Presence relay / Fault relay |
| Humidity | Up to 95% relative humidity without condensation |
Switch 2 (Dipswitch Settings)
1.DIP 1 & DIP 2 Setting Special Functions
2.DIP 3 & DIP 4 Setting Relay B Output
3. DIP 5 Setting Automatic Reset
4. DIP 6 & DIP 7 & DIP 8 Setting Relay A Delay
5. DIP 9 & DIP 10 Setting Frequency (40 K to 100 KHz). Used to avoid the interference
Loop Installation:
Trouble Shooting:
Compared to other brands
Mass Production:
Our production line ensures efficient mass production, rigorous quality control, and thorough pre-shipment testing to deliver Loop detector products of the utmost perfection.
Certification:
