860-928MHz RFID Card Reader Writer With Wiegand Output USB Interface
Product Details
| Reading Distance | <50mm | Application | Parking, Hospital, Library, Company, Bank, Store |
|---|---|---|---|
| Compatible Standard | UHF EPC Gen2(ISO18000-6c) Tag | Working Frequency | 860-928MHz |
| Output Power | Max 10dBm | Reading/Write Distance | <50mm |
| Specification | 100*120*26mm | HS Code | 8471900090 |
| Package Size | 13.00cm * 11.00cm * 4.00cm | Card Type | 860-928MHz |
| Highlight | 860-928MHz rfid card reader writer,RFID Card Writer With Wiegand Output,USB Interface rfid card reader writer |
||
Product Description
860-928MHz RFID Card Reader Writer With Wiegand Output USB Interface
Product Overview
The JUTAI DT-9 Card Issuer is a desktop UHF card issuer RFID card writer designed for efficiently collecting ID card numbers. This device simplifies the process of gathering tag IDs for access control systems, making it easy to integrate new tags into existing setups.
Key Features
- Compatible with UHF EPC Gen2 tags (ISO18000-6C standard)
- Working frequency of 860~928MHz for optimal performance
- Max output power of 10dBm ensures reliable tag detection
- Reading/write distance of less than 50mm for precise data collection
- USB interface for both power and data transfer
- Low working current of less than 100mA for energy efficiency
- Outputs tag IDs in standard Jutai format for seamless integration
- Compact product size of 100mm x 120mm x 26mm for easy handling and storage
Operation Guide
- Connect the DT-9 to your computer via USB
- Access the device manager and select the appropriate COM port
- Open the DT-9 software (Reader V1.3/4/5)
- Configure serial port settings and select desired functions
- Power indicator turns green when successfully connected
- Click "EPC Read" in software to read tag IDs (displayed in DataLog)
- Save tag IDs to Excel document for easy access
- Utilize collected tag IDs in access control systems (AC-11/22) using Jutai format
Product Images

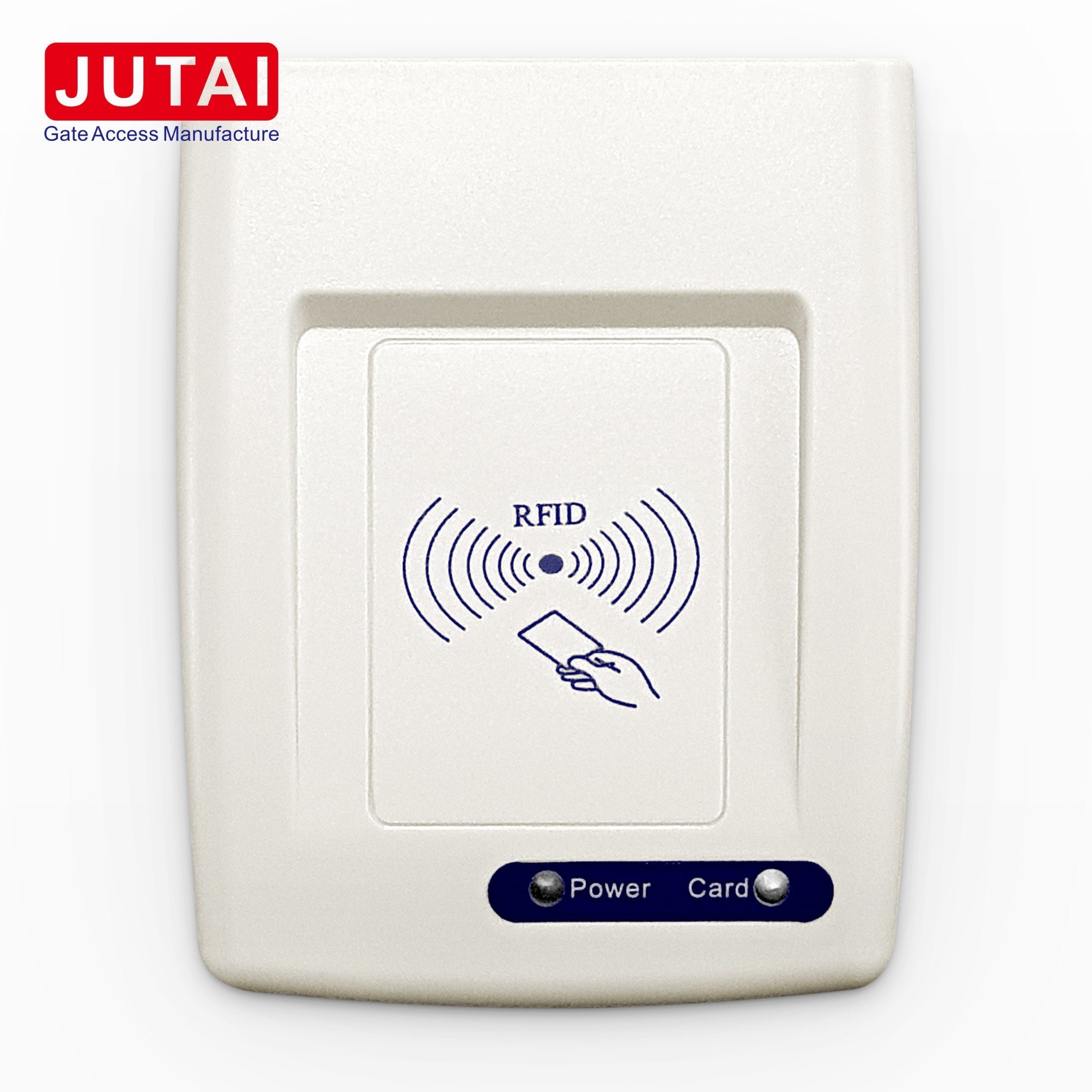

Front View
Side View
Top View
Operational View
Technical Specifications
| Compatible Standard | UHF EPC Gen2 (ISO18000-6C) |
|---|---|
| Working Frequency | 860~928MHz |
| Output Power | Max 10dBm |
| Reading/Write Distance | <50mm |
| Interface | USB (Power + Data) |
| Working Current | <100mA |
| Output EPCID | Standard, Jutai Format |
| Product Size | 100mm x 120mm x 26mm |
Dimensions
Dimensional Diagram
Packaging

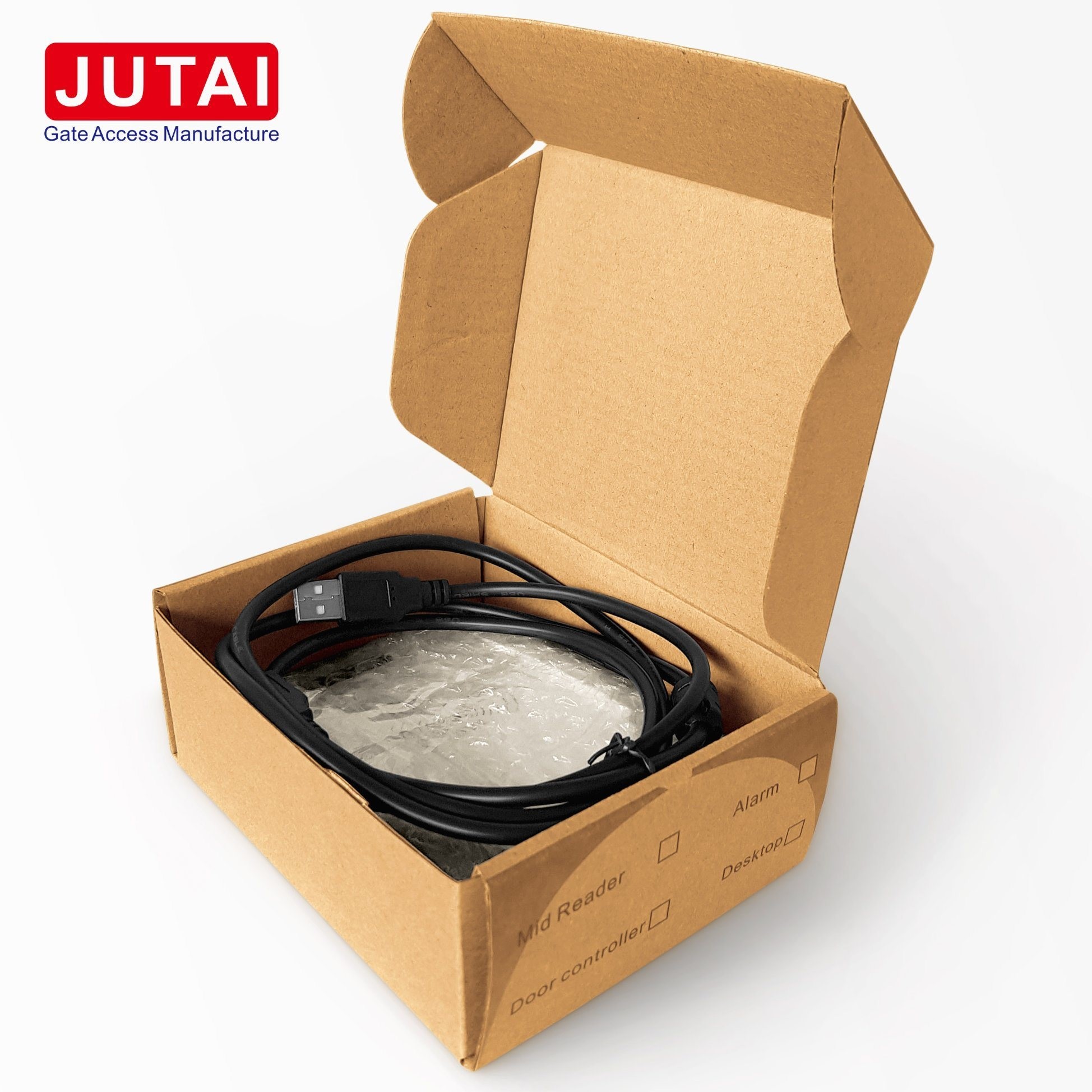

Product Packaging
The JUTAI DT-9 Card Issuer streamlines the process of collecting tag IDs, offering compatibility with various access control systems. With its user-friendly interface and reliable performance, it provides a convenient solution for managing ID card numbers effectively. Trust JUTAI for efficient and accurate data collection for your access control needs.
