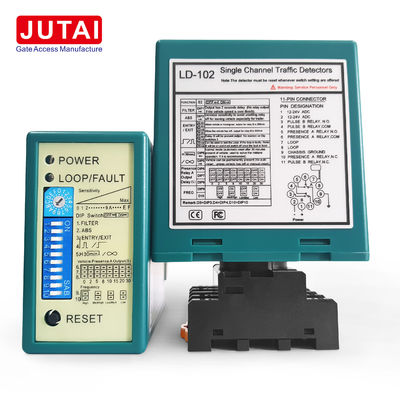

Single Channel Vehicle Loop Detector With 12-24VADC For Parking Barrier Gate Safety

  • Single Channel Vehicle Loop Detector With 12-24VADC For Parking Barrier Gate Safety
  • Single Channel Vehicle Loop Detector With 12-24VADC For Parking Barrier Gate Safety
Place of Origin China
Brand Name JUTAI
Certification CE
Model Number LD-100
Minimum Order Quantity 1
Price Negotiable
Packaging Details Carton Parcking(13.5*8.5*5cm)/0.3kg/unit
Delivery Time 3-5 working days after receipt the payment
Payment Terms T/T, L/C, D/A, D/P, Western Union, Paypal, , MoneyGram, Alipay
Supply Ability 10000pcs/month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

WeChat: 0086 18588475571

skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Power Supplu 12-24VADC Self-turning Range 20-2000μH
Sensitivity 6 Way Selectable/Highest0.010%DL/L/ Lowest 2.56%DL/L Frequency Four Step Switch Selectable20-80KHz
Operation Tempts -40℃ To +70℃ / (-111°F To +158°F) Fault Output Blinks Slowly: May Indicate A Short Circuit Or Insufficient Number Of Turns
Blinks Faster: May Indicate An Open Loop Or Excessive Number Of Turns
Response Times Turn-on 10-90MS / Turn-off 10-90MS Relay Presence Relay / Fault Relay
Highlight

Single Channel gate loop detector

,

gate loop detector 12-24VADC

,

Single Channel Vehicle Loop Detector
Leave a Message
Product Description

Single Channel Vehicle Loop Detector with 12-24VADC for Parking Barrier Gate Safety



Product Name:  (Loop Sensor)



Description: The Parking Barrier Gate Loop Detector (LD-102) is a specialized sensor designed for parking barrier gates, facilitating seamless automatic gate operation by efficiently identifying and detecting various vehicles, including oversized vehicles, trucks, motorcycles, and more.



Advantages:

  • Wide Sensing Range and Enhanced Sensitivity: With a sensing range from 15 to 2000μH and heightened sensitivity, the LD-102 accurately detects diverse vehicles, ensuring dependable detection performance.
  • Automatic Reset Capability: The LD-102 is equipped with an automatic reset feature that activates in case of malfunction, eliminating manual intervention and enhancing system stability and reliability.
  • Flexible Detection Level Selection: Offering 16 selectable levels ranging from 0.008% DL/L to 2.50% DL/L, the LD-102 can be tailored to specific requirements, suitable for various application scenarios.
  • Robust 40000V Lightning Protection: With robust lightning protection of 40000V, the LD-102 effectively shields against lightning strikes, ensuring sustained operation under adverse conditions.
  • Broad Operating Environment Range: Designed to thrive in diverse environments, the LD-102 operates within a temperature range from -40°C to +70°C, ensuring consistent performance in challenging weather conditions.

The Parking Barrier Gate Loop Detector (LD-102) delivers robust and reliable vehicle detection capabilities for parking barrier gates, offering wide sensing range, enhanced sensitivity, automatic reset capability, flexible detection level selection, robust lightning protection, and broad operating environment range.



Product parameters:

Specification Value
Self-turning Range 20-2000μH
Sensitivity 16-way selectable / Highest 0.010% DL/L / Lowest 2.56% DL/L
Frequency Four-step switch selectable 20-80KHz
Power Requirements 110-240VAC (48 to 62Hz) / 12-24VADC
Operation Temp -40℃ to +70℃ / (-111°F to +158°F)
Fault Output Blinks slowly: may indicate a short circuit or insufficient number of turns <br> Blinks faster: may indicate an open loop or excessive number of turns
Response Times Turn-on 10-90MS / Turn-off 10-90MS
Visual Indications Power LED - Red <br> Channel LED - Green
Reset Reset by push button on the front of the enclosure
Relay Output Presence relay / Fault relay
Humidity Up to 95% relative humidity without condensation





Switch 2 (Dipswitch Settings)





1.DIP 1 & DIP 2 Setting Special Functions

Single Channel Vehicle Loop Detector With 12-24VADC For Parking Barrier Gate Safety 0



2.DIP 3 & DIP 4 Setting Relay B Output

Single Channel Vehicle Loop Detector With 12-24VADC For Parking Barrier Gate Safety 1



3. DIP 5 Setting Automatic Reset

Single Channel Vehicle Loop Detector With 12-24VADC For Parking Barrier Gate Safety 2



4. DIP 6 & DIP 7 & DIP 8 Setting Relay A Delay

Single Channel Vehicle Loop Detector With 12-24VADC For Parking Barrier Gate Safety 3



5. DIP 9 & DIP 10 Setting Frequency (40 K to 100 KHz). Used to avoid the interference

Single Channel Vehicle Loop Detector With 12-24VADC For Parking Barrier Gate Safety 4





Loop Installation:

Single Channel Vehicle Loop Detector With 12-24VADC For Parking Barrier Gate Safety 5



Trouble Shooting:



Single Channel Vehicle Loop Detector With 12-24VADC For Parking Barrier Gate Safety 6



Mass Production:



Our production line ensures efficient mass production, rigorous quality control, and thorough pre-shipment testing to deliver Loop detector products of the utmost perfection.



Single Channel Vehicle Loop Detector With 12-24VADC For Parking Barrier Gate Safety 7

Single Channel Vehicle Loop Detector With 12-24VADC For Parking Barrier Gate Safety 8

Single Channel Vehicle Loop Detector With 12-24VADC For Parking Barrier Gate Safety 9


Certification:

Single Channel Vehicle Loop Detector With 12-24VADC For Parking Barrier Gate Safety 10

Single Channel Vehicle Loop Detector With 12-24VADC For Parking Barrier Gate Safety 11
