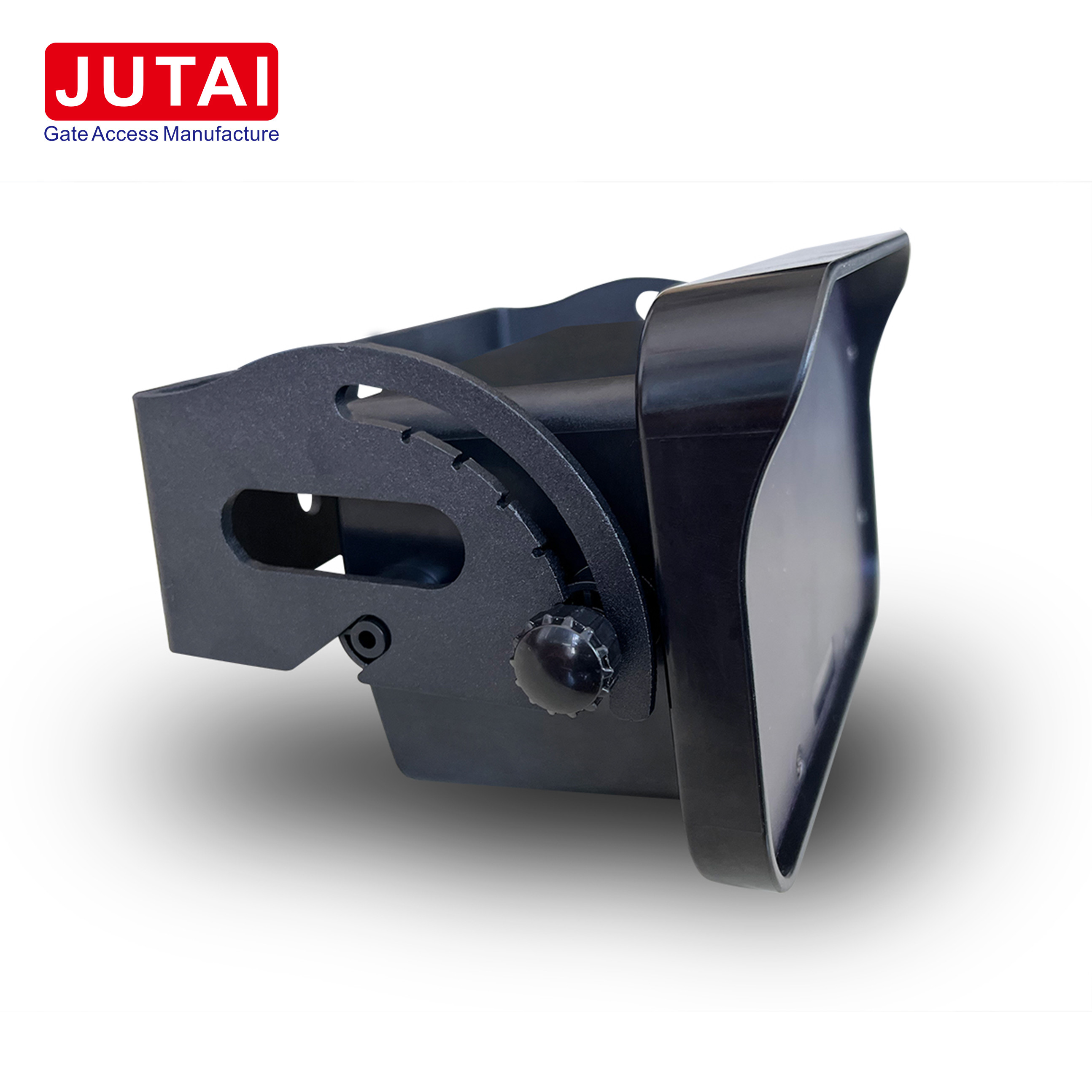

Waterproof Motion Sensor For Automatic Industrial Gate Opening Cross Traffic Masking
| Place of Origin | China |
|---|---|
| Brand Name | JUTAI |
| Certification | FDA, E-MARK, CE, ISO, FCC, RoHS, DOT, ASTM, AS/NZS, CCC, GS |
| Model Number | RVP42-9ME |
| Minimum Order Quantity | 1 |
| Price | Negotiation |
| Packaging Details | Cartoon |
| Delivery Time | 5-8 days |
| Payment Terms | T/T, L/C, D/A, D/P, Western Union, Paypal, , MoneyGram, Alipay |
| Supply Ability | 1000 pieces per month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
WeChat: 0086 18588475571
skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Output | Dual Relay Output | Power Supply | 12-28VAC, 12-36VDC |
|---|---|---|---|
| Frequency | 24.125GHz | Detection Height | 2m To 9m |
| HS Code | 9031809090 | Package Size | 28.00cm * 13.00cm * 10.00cm |
| Operating Temperature Range | -30 To 70 ℃ | Maximum Voltage Rating | 48 Volts AC/DC |
| Maximum Current Capacity | 1 Ampere | ||
| Highlight | Industrial Gate Opening Waterproof Motion Sensor,Cross Traffic Masking Waterproof Motion Sensor,Automatic Industrial Gate Opening Motion Sensor |
||
Product Description

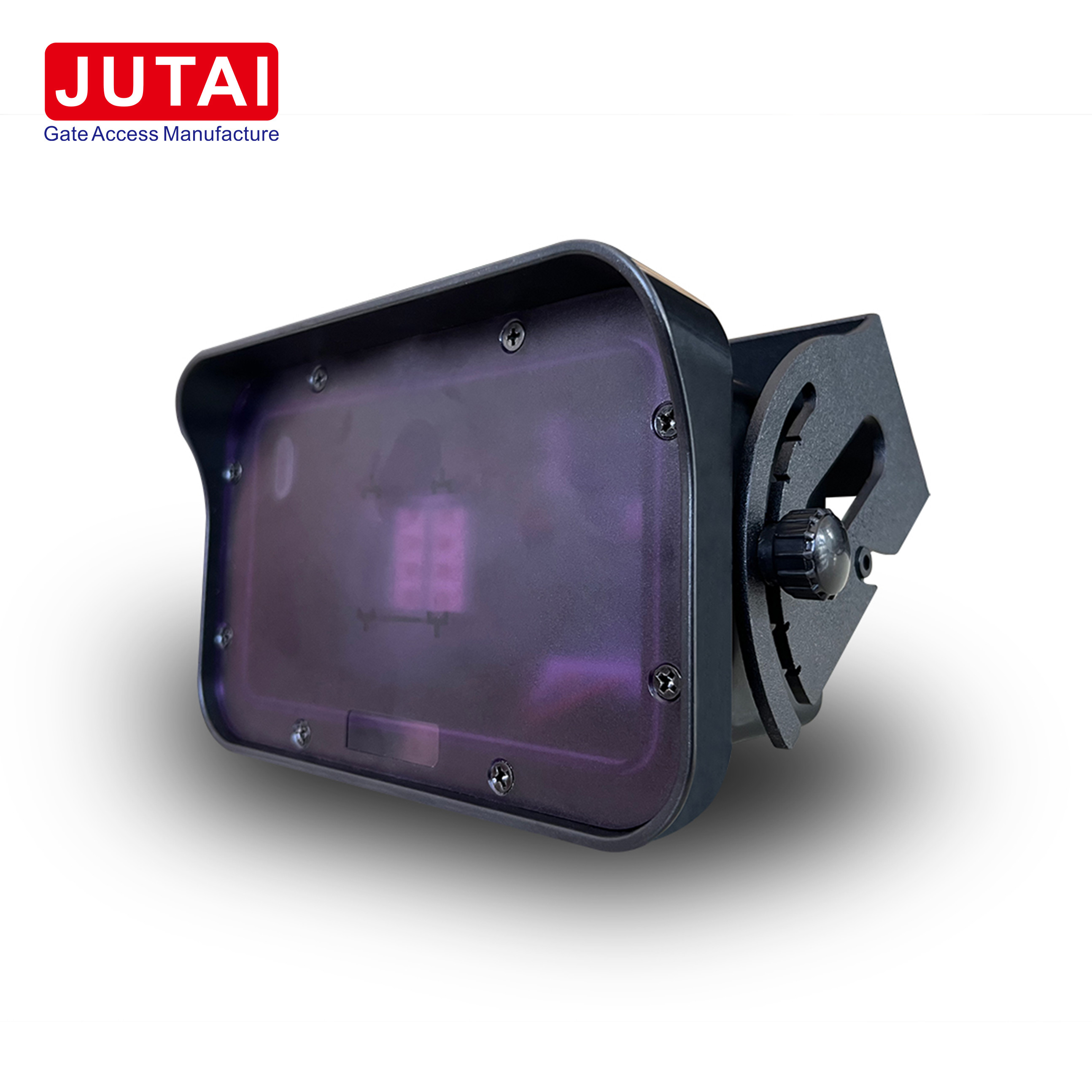

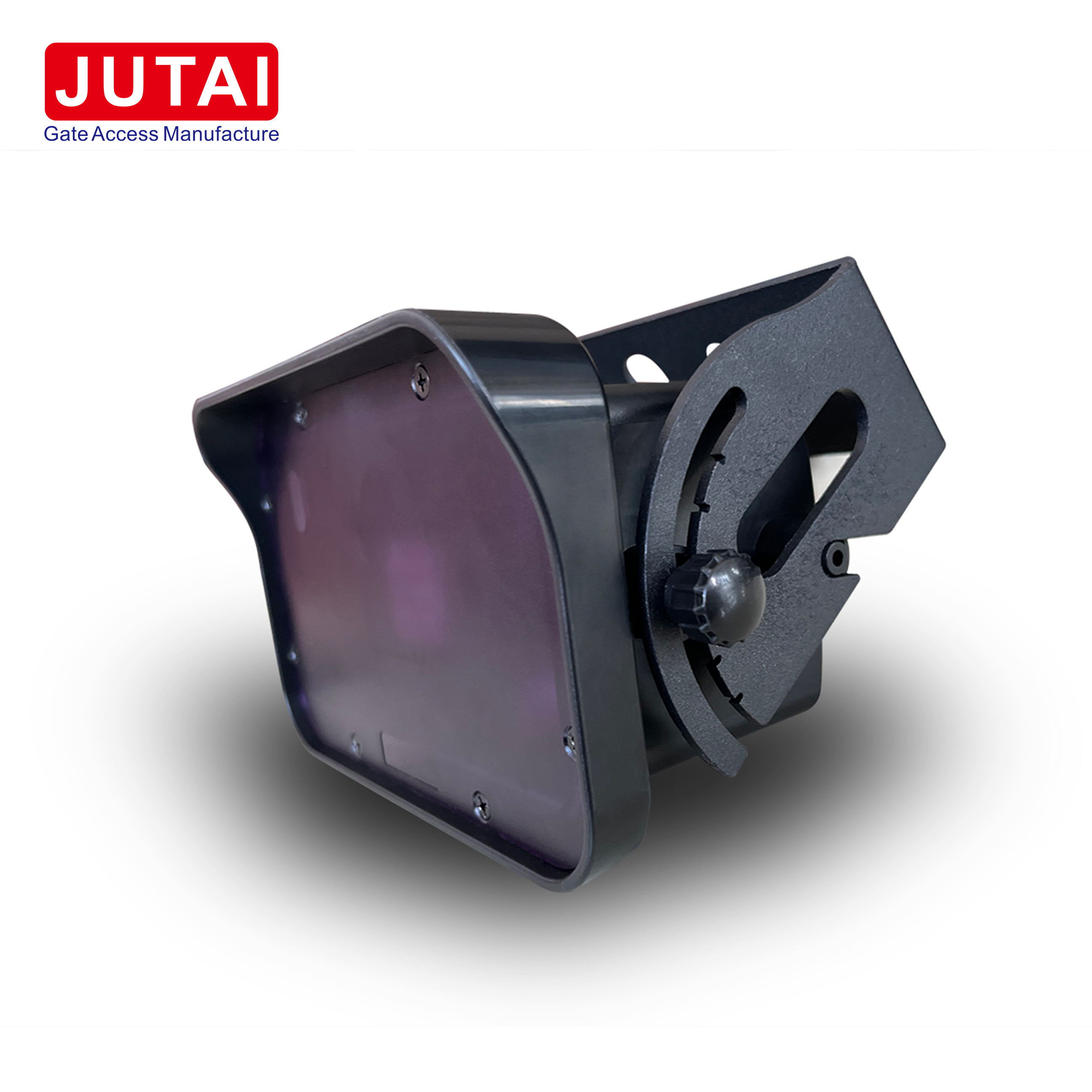

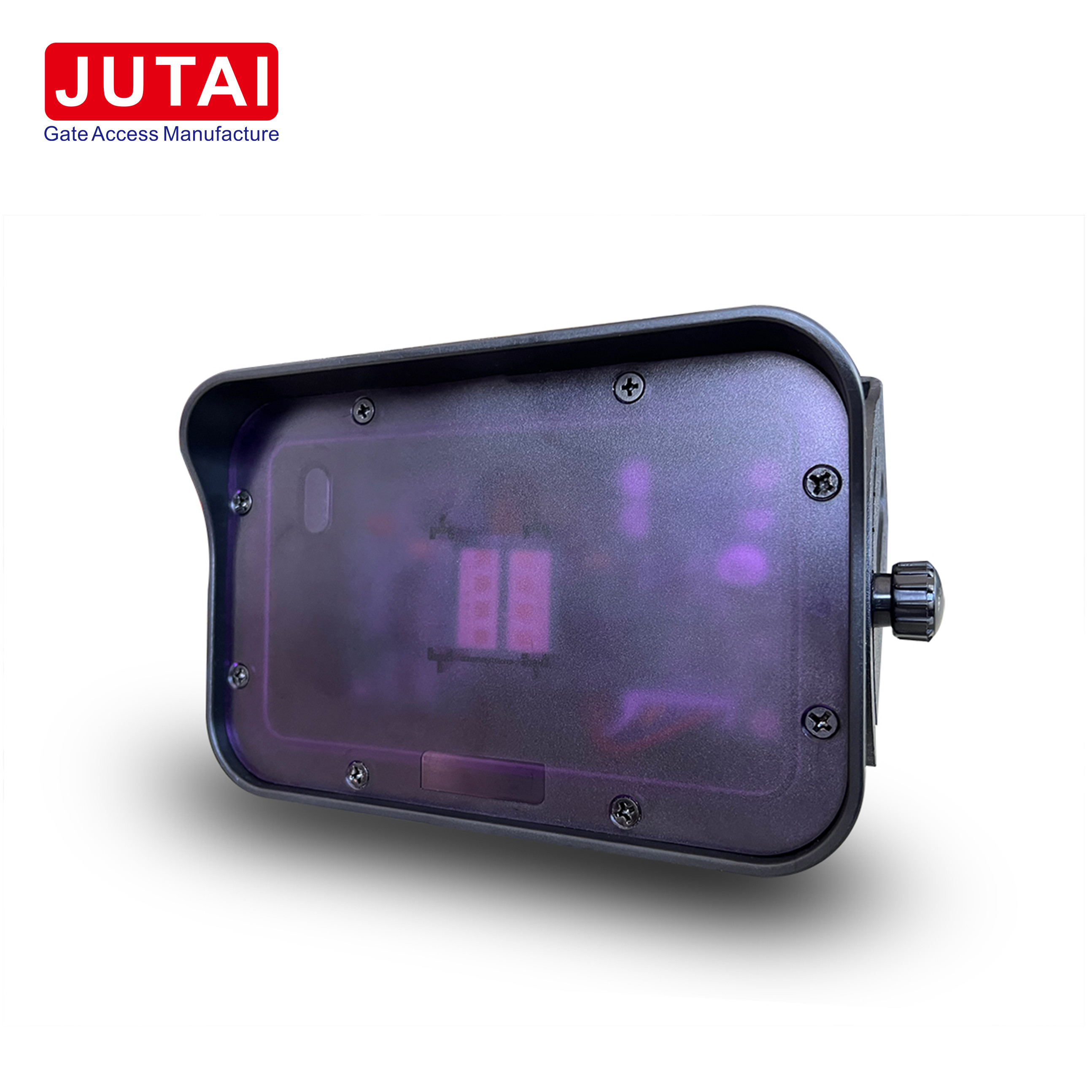

Waterproof Motion Sensor for Automatic Industrial Gate Opening Cross Traffic Masking
Product Name: 24GHz Industrial Motion Radar Detector
Description:
The 24GHz Industrial Motion Radar Detector represents cutting-edge technology tailored for industrial door and gate systems. Engineered with precision, it finds versatile applications across high-speed doors, cold storage facilities, garage entrances, and warehouse portals. Furthermore, it seamlessly integrates into street lighting systems, showcasing its adaptability and functionality.
Boasting intelligent energy-saving capabilities, this sensor optimizes power consumption by maintaining partial brightness in the absence of detected objects. Upon sensing activity, it dynamically adjusts to full brightness, ensuring efficient energy utilization.
Key Features:

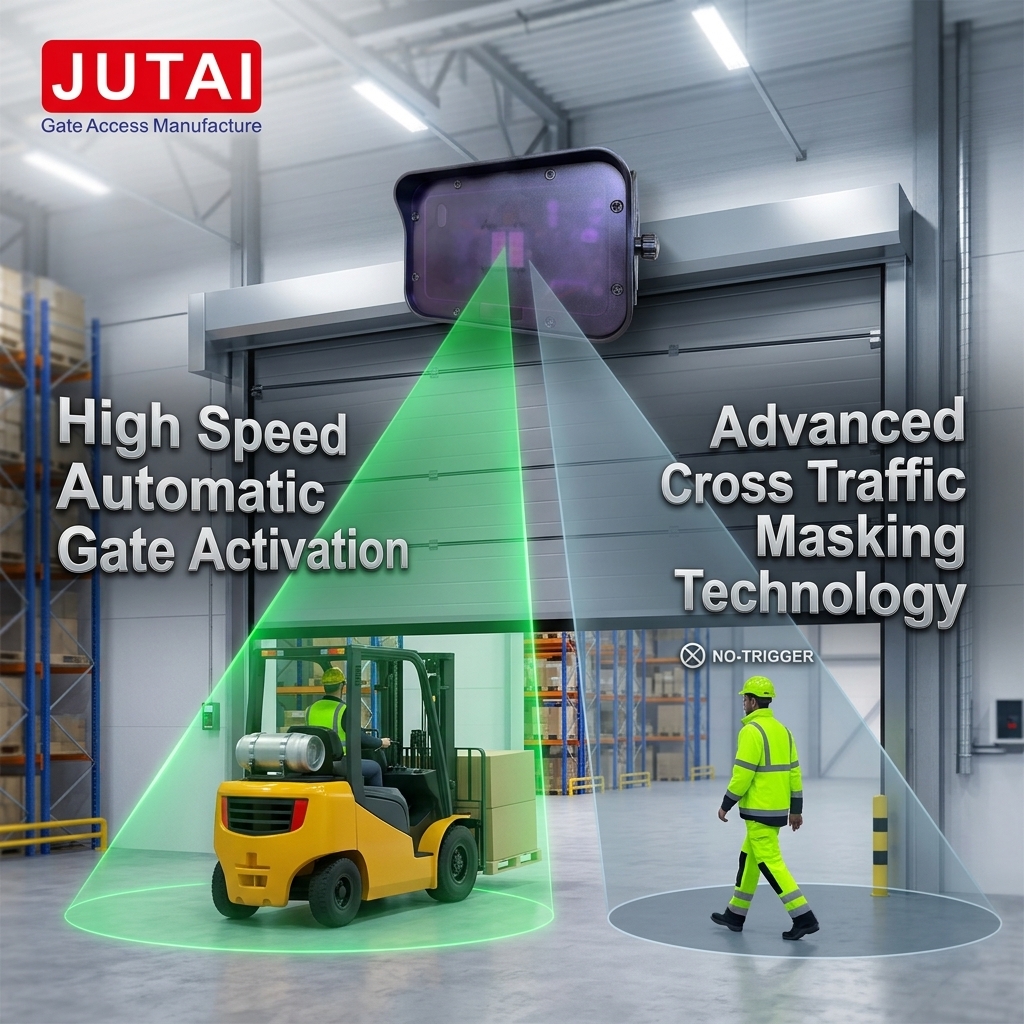

- Advanced Traffic Differentiation: Featuring cross-traffic masking and accurate differentiation between pedestrians and vehicles, this sensor minimizes false alarms and enhances system reliability.
- Versatile Control: Equipped with dual relays, this detector offers a wide array of control functions to cater to diverse application needs effectively.
- Flexible Installation: With a suitable installation height range spanning from 2 meters to 9 meters, it accommodates various door and lighting configurations, ensuring compatibility and ease of use.

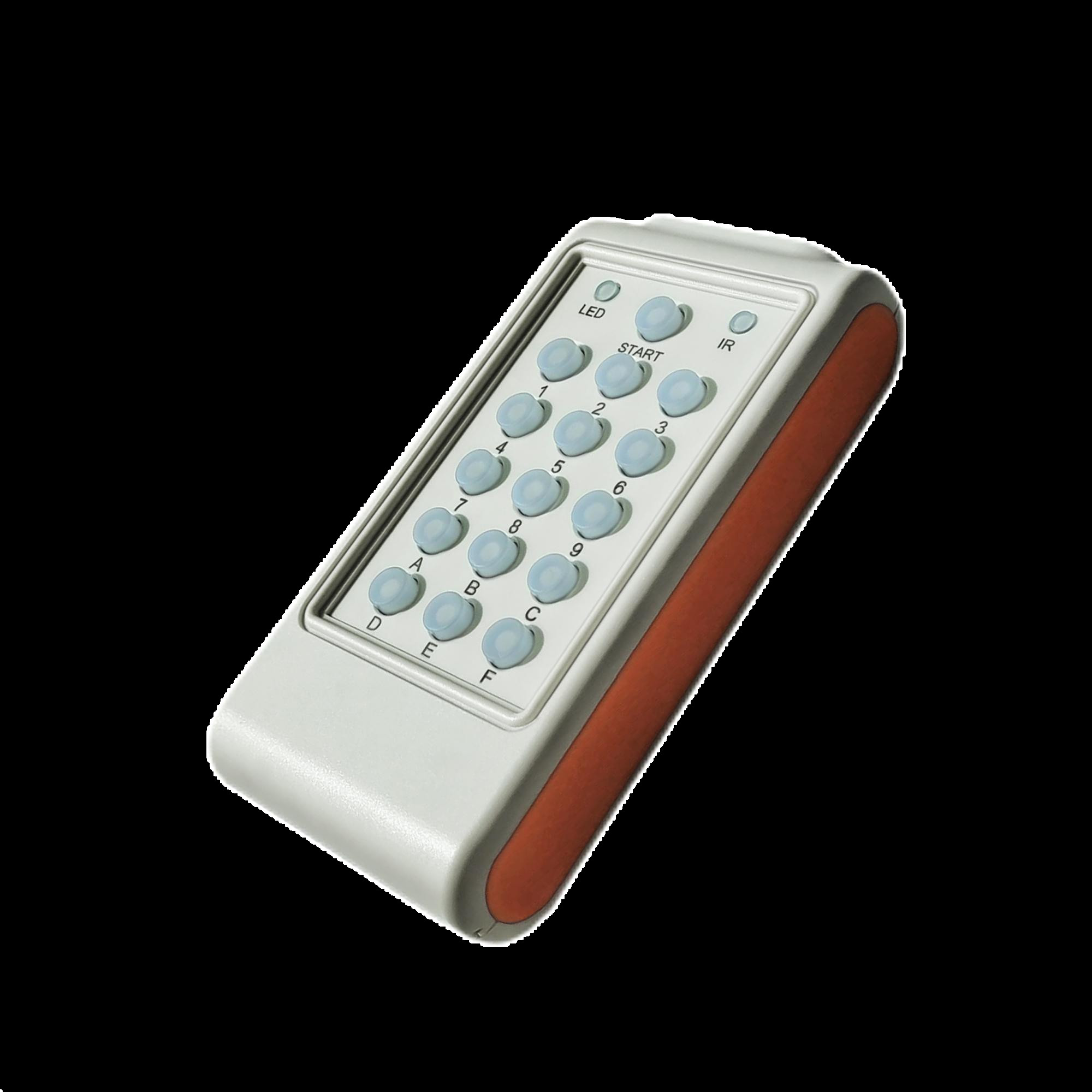

- Remote Control Capability: The inclusion of a remote control option streamlines parameter adjustment and settings, providing users with convenient access and control.
- Bluetooth Integration: Specifically designed with Bluetooth connectivity, users can effortlessly manage sensor parameters via a dedicated mobile application, enhancing operational efficiency and user experience.
The 24GHz Industrial Motion Radar Detector stands as the pinnacle choice for industrial door and gate systems, offering unparalleled performance, reliability, and efficiency. Elevate your operations with this state-of-the-art solution.
Product parameters:
| Application technology | Doppler radar |
| Transmission frequency | 24.125GHz |
| Transmission power | <20dBm |
| Detection height | 2.0m~9.0m |
| Angle adjustment | 0°-90°longitudinal |
| Detection speed | 5cm/s~25km/s |
| Detection area(30°Angle) | 3.0m*3.5m@height:2m 6.5m*8.5m@height:9m |
| Operation current | <100mA |
| Power frequency | 50Hz |
| Temperature range | -30 ºC~+60 ºC |
| Relative humidity | 0%to 95%,no condensation |
| Protection grade | IP65 |
| Relay output | 24VDC@1A [email protected] |

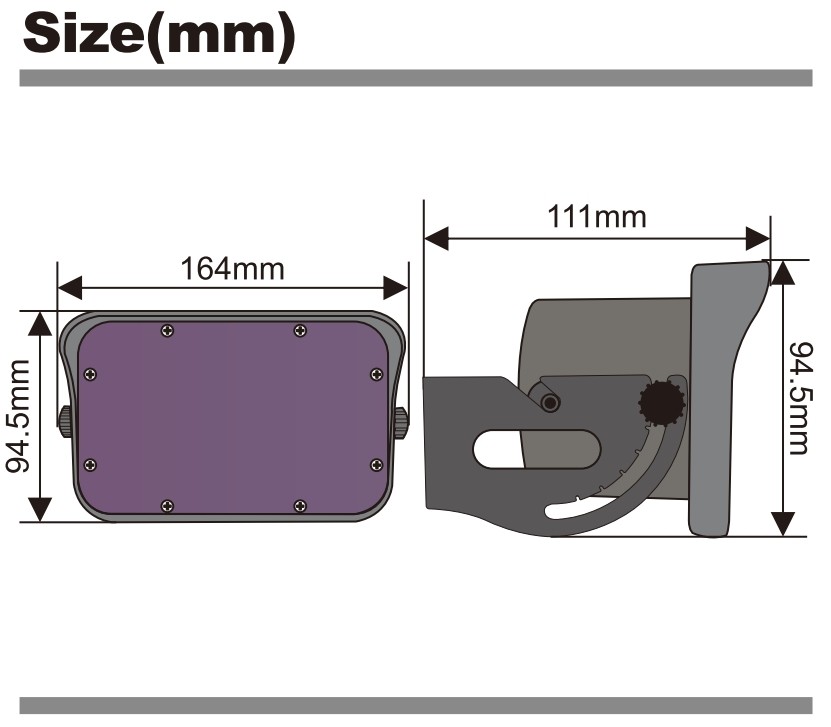

| External dimensions | 164mmx111mmx94.5mm |

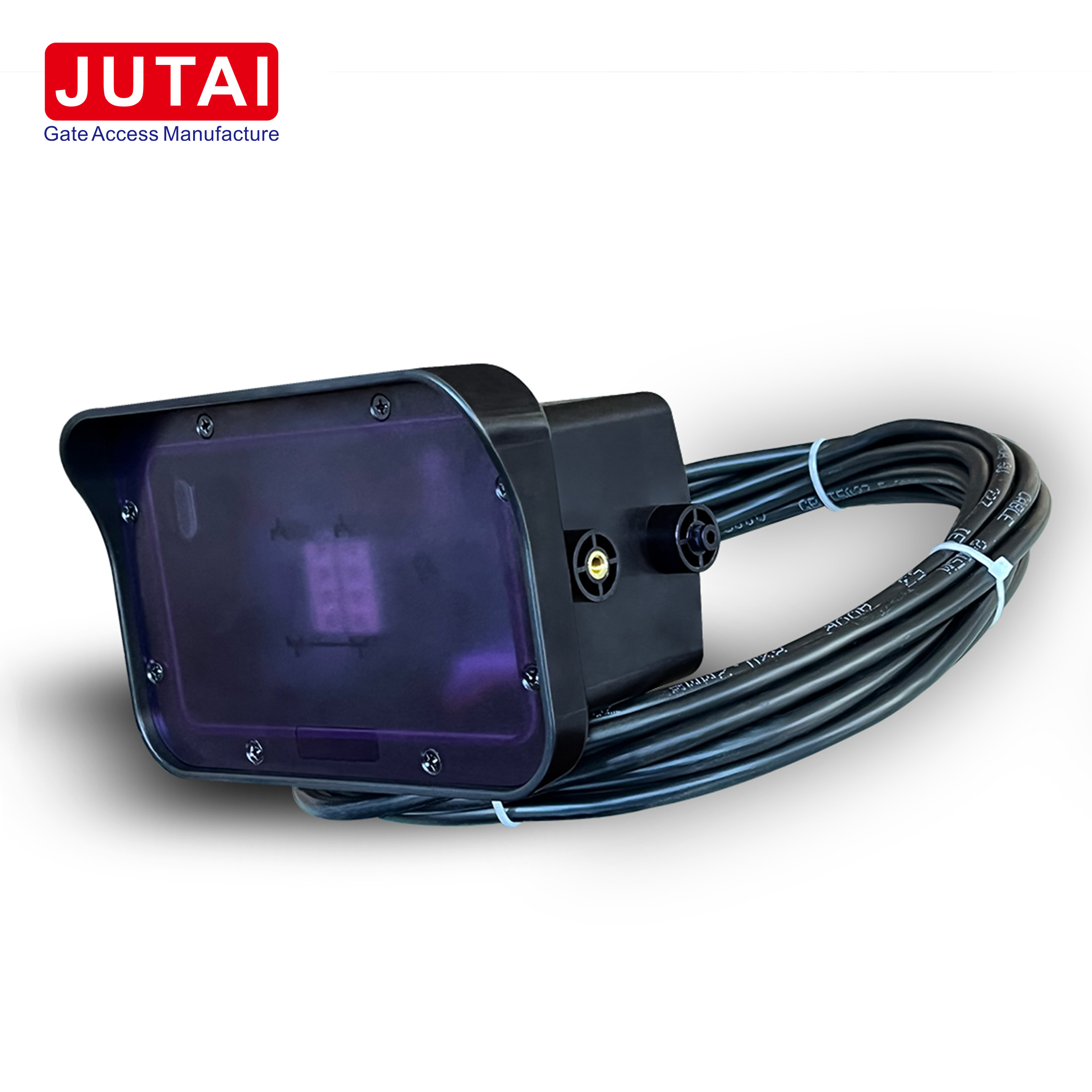

| Cable length | 7m |
| Sensor weight | 650g |
| Operation voltage |
12~36VADC |
Detection Area
The microwave range offers a narrow or wide detection area that makes it suitable for all types of installations. The narrow setting is easy to set by simply clicking the narrow lens onto the radar module. By turning the module left or right and tilting it up and down the microwave can be adjusted quickly and easily for many different applications. No external set-up device is needed. Adjust the detection area with a Sensitivity potentiometer.
Dual Relays Outputs
This hands-free radar motion sensor offers complete customization with its dual relay system:
1. Vehicle-detection relay activated
2. Person-detection relay activated
3. Both vehicle-detection and person-detection relays activated simultaneously
The following setting exclusively activates the vehicle-detection mode while deactivating the person-detection mode. This setting can be adjusted based on the specific requirements of your project.
Direction Recognition
It can be set the direction detection:
1. motion forward and close to the sensor
2. backward movement away from the sensor
3. Forward and backward.
Energy Savings
It increases energy efficiency and controls pests by limiting activation to approaching traffic only. Meaning the door will only be left open when someone is using it, and will automatically close when they depart.
Open doors without having to stop and push a button. Install or Retrofit For both dock and pedestrian doors with automated solutions.
Adjustable Detection Settings modes of detection filtering for pedestrian, forklift, and parallel traffic rejection. It can also distinguish between approaching and departing traffic.
Adjustable Detection Settings modes of detection filtering for pedestrian, forklift, and parallel traffic rejection. It can also distinguish between approaching and departing traffic.

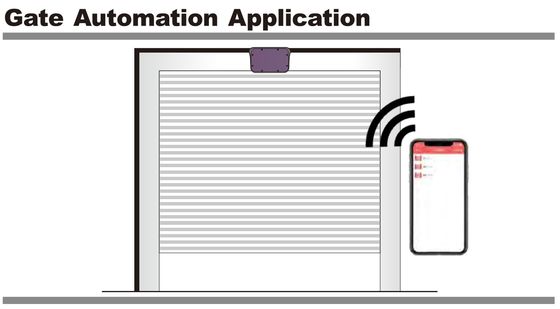

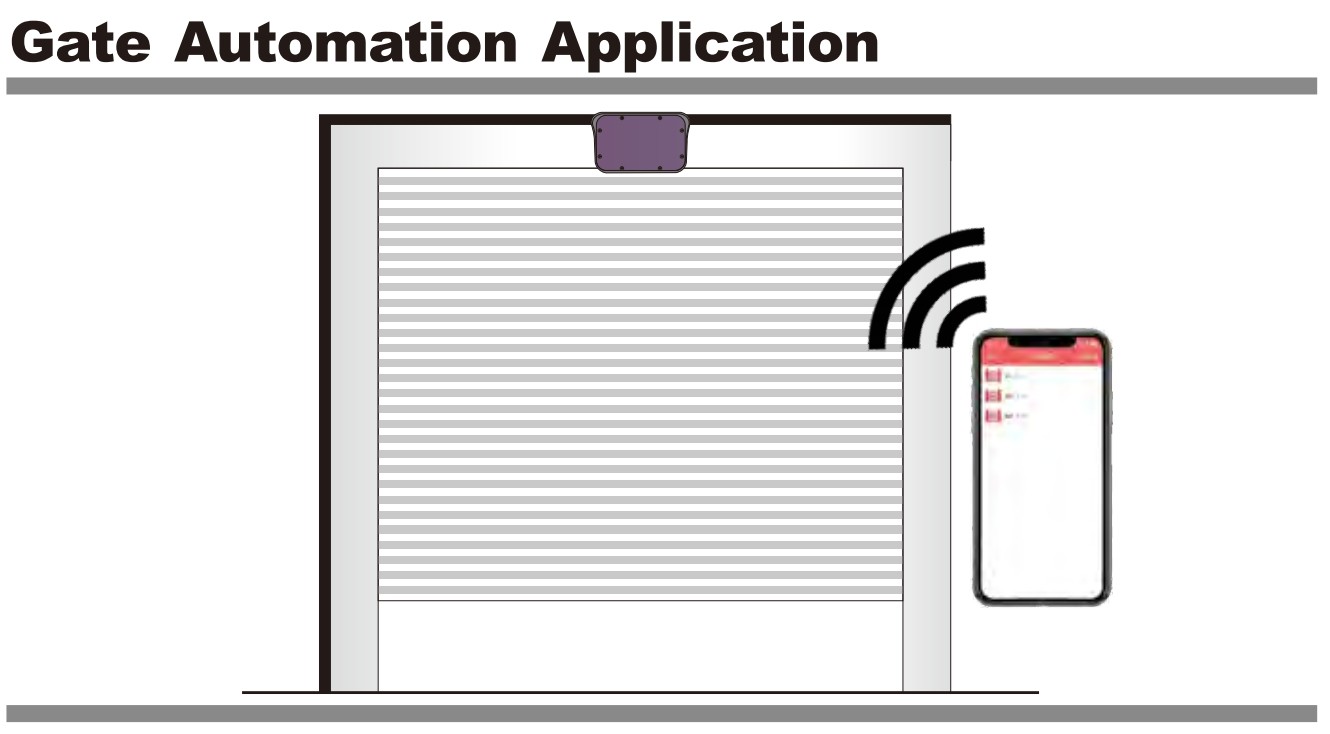

Remote Control / Bluetooth APP Setting
Benefit from remote control or Bluetooth app programming, allowing users to swiftly and securely adjust settings from ground level.
1. Easily set mounting height for optimal performance.
2. Customize relay parameters to suit specific requirements.
3. Adjust detection area to align with site needs.
4. Set relay holding time for precise control.
5. Configure direction recognition for enhanced functionality.
6. Fine-tune crossing traffic settings to minimize false alarms.
7. Activate anti-interference function to ensure reliable operation.
8. Enable manual industrial door opening for added convenience.
9. Exit configuration mode seamlessly after adjustments.
10. Reset system settings as needed.
Solutions
Applications
1. Factory entrances
2. Pedestrian and parallel traffic rejection
3. Parking garage detection
4. Barrier arm activation
- Customization with OEM logos is available.
- Benefit from long-term technical support, including online assistance.
- Explore our range of complementary products, including photocells, safety light curtains, and card readers, all tailored for gate automation applications. Expand your business with our comprehensive solutions.
