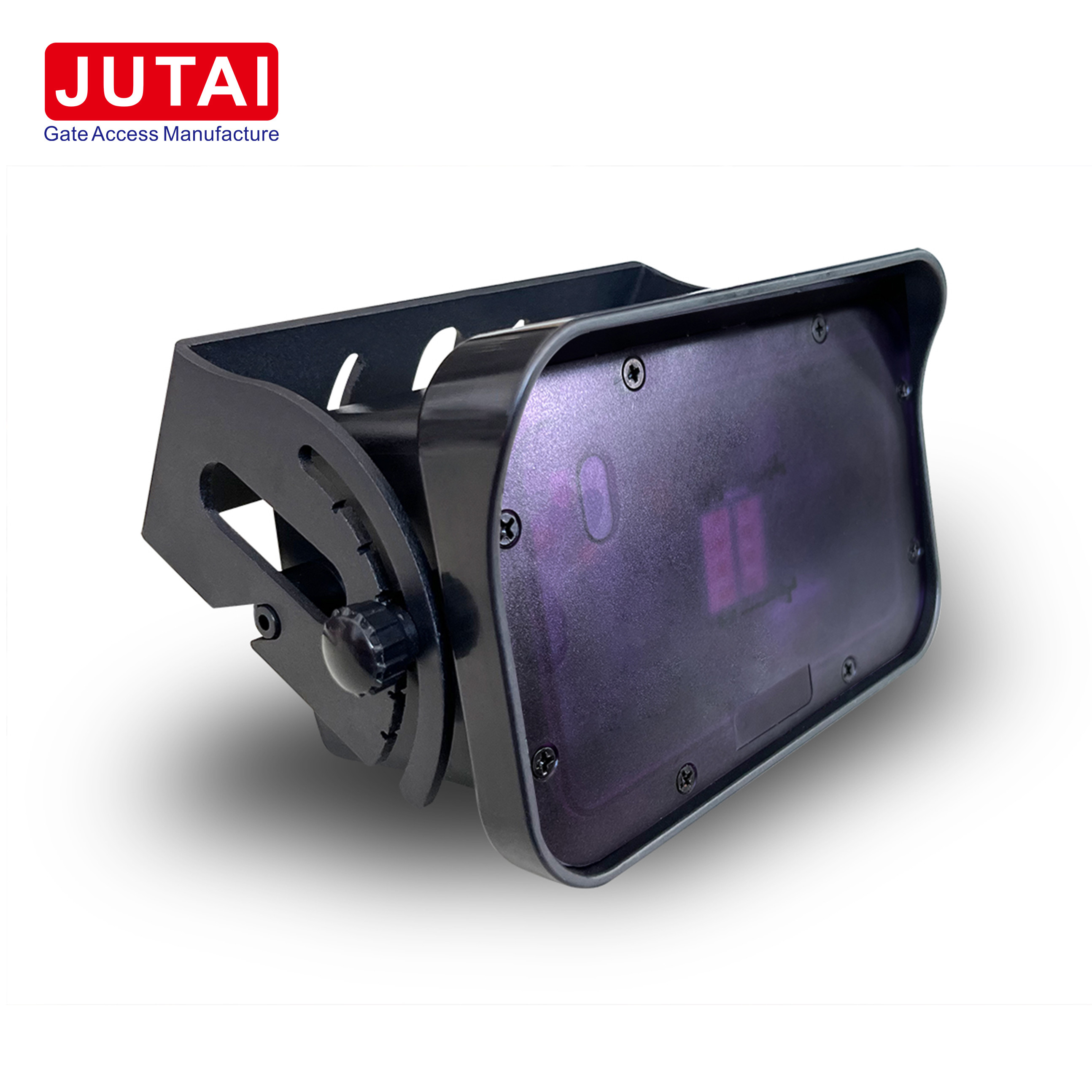

Cross Traffic Masking Radar Based Motion Sensor 48 Volts AC/DC
| Place of Origin | China |
|---|---|
| Brand Name | JUTAI |
| Certification | FDA, E-MARK, CE, ISO, FCC, RoHS, DOT, ASTM, AS/NZS, CCC, GS |
| Model Number | RVP42-9ME |
| Minimum Order Quantity | 1 |
| Price | Negotiation |
| Packaging Details | Cartoon |
| Delivery Time | 5-8 days |
| Payment Terms | T/T, L/C, D/A, D/P, Western Union, Paypal, , MoneyGram, Alipay |
| Supply Ability | 1000 pieces per month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
WeChat: 0086 18588475571
skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Operating Temperature Range | -30 To 70 ℃ | Output | Dual Relay Output |
|---|---|---|---|
| Direction Recognition | Cross Traffic Masking | Detection Height | 2m To 9m |
| Power Supply | 12-28VAC, 12-36VDC | Frequency | 24.125GHz |
| Package Size | 28.00*13.00*10.00cm | Maximum Voltage Rating | 48 Volts AC/DC |
| Highlight | Cross traffic masking motion sensor radar,motion sensor radar 48 Volts AC,Cross traffic masking radar based motion sensor |
||
Product Description
Customizable IP65 Motion Sensor -30~70°C Operation for Industrial Gate Opening
Product Name: Advanced Industrial Radar Motion Detector
Description: The Advanced Industrial Radar Motion Detector is the epitome of technological innovation, meticulously crafted to meet the rigorous demands of industrial door and gate systems. Engineered for precision and versatility, it seamlessly integrates into a wide spectrum of environments, including high-speed doorways, refrigerated warehouses, and commercial entrances.
This sensor is endowed with intelligent energy-saving capabilities, ensuring optimal power utilization by adjusting brightness based on detected activity. From dim illumination in quiet moments to full brightness upon detecting movement, it optimizes energy consumption without compromising performance.
Key Features:
- Smart Traffic Discrimination: Equipped with cross-traffic masking and precise differentiation between pedestrians and vehicles, this sensor reduces false alarms and enhances system reliability in diverse industrial settings.
- Enhanced Control Options: With dual relays, this detector offers extensive control functions to cater to varying application requirements effectively.
- Adaptable Installation: Designed to accommodate a wide range of installation heights, from 2 meters to 9 meters, it ensures flexibility and compatibility with different door and lighting configurations.
- Convenient Remote Management: The inclusion of remote control functionality simplifies parameter adjustments and settings, providing users with convenient access and control.
- Seamless Bluetooth Connectivity: Featuring Bluetooth integration, users can effortlessly manage sensor parameters via a dedicated mobile application, enhancing operational efficiency and user convenience.
The Advanced Industrial Radar Motion Detector sets the benchmark for excellence in industrial door and gate systems, delivering unparalleled performance, reliability, and efficiency. Transform your operations with this state-of-the-art solution.
Product parameters:
| Application technology | Doppler radar |
| Transmission frequency | 24.125GHz |
| Transmission power | <20dBm |
| Detection height | 2.0m~9.0m |
| Angle adjustment | 0°-90°longitudinal |
| Detection speed | 5cm/s~25km/s |
| Detection area(30°Angle) | 3.0m*3.5m@height:2m 6.5m*8.5m@height:9m |
| Operation current | <100mA |
| Power frequency | 50Hz |
| Temperature range | -30 ºC~+60 ºC |
| Relative humidity | 0%to 95%,no condensation |
| Protection grade | IP65 |
| Relay output | 24VDC@1A [email protected] |
| External dimensions | 164mmx111mmx94.5mm |
| Cable length | 7m |
| Sensor weight | 650g |
| Operation voltage |
12~36VADC |
Detection Area
The microwave range offers a narrow or wide detection area that makes it suitable for all types of installations. The narrow setting is easy to set by simply clicking the narrow lens onto the radar module. By turning the module left or right and tilting it up and down the microwave can be adjusted quickly and easily for many different applications. No external set-up device is needed. Adjust the detection area with a Sensitivity potentiometer.

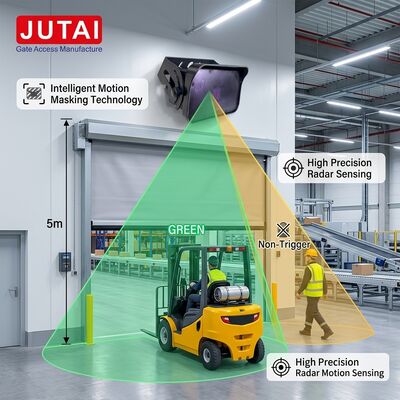

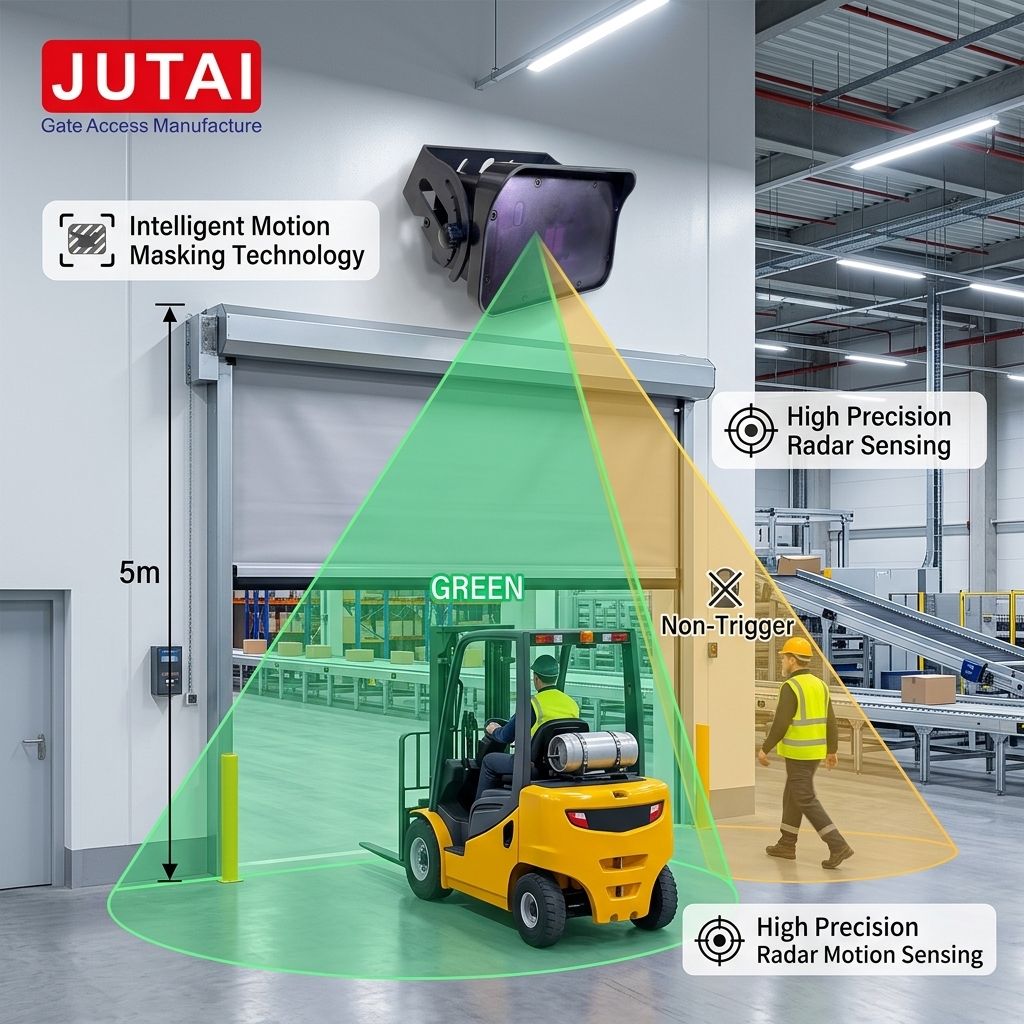

Dual Relay Output for Enhanced Control
This radar motion sensor, equipped with dual relays, provides unparalleled customization:
1. Activates vehicle-detection relay
2. Activates person-detection relay
3. Activates both vehicle-detection and person-detection relays simultaneously
The following configuration exclusively activates the vehicle-detection mode, deactivating the person-detection mode to suit your project's unique needs.
Direction Recognition
Direction Detection Customization:
- Detects forward motion towards the sensor
- Detects backward movement away from the sensor
- Detects both forward and backward motion
Energy-Efficient Operation:
Enhances energy efficiency and pest control by activating only when approaching traffic is detected. Ensures the door remains open only during use, automatically closing upon departure.
Seamless Operation:
Eliminates the need to stop and push a button for door operation. Suitable for installation or retrofitting in dock and pedestrian doors, offering automated solutions.
Adjustable Detection Settings:
Customizable detection modes filter pedestrian, forklift, and parallel traffic, distinguishing between approaching and departing movements.
Remote Control / Bluetooth APP Setting
Convenience of Remote Control and Bluetooth App:
1. Effortlessly adjust mounting height for optimal performance.
2. Tailor relay parameters to meet specific requirements.
3. Customize detection area to align with site needs.
4. Set relay holding time for precise control.
5. Configure direction recognition for enhanced functionality.
6. Fine-tune crossing traffic settings to minimize false alarms.
7. Activate anti-interference function for reliable operation.
8. Enable manual industrial door opening for added convenience.
9. Seamlessly exit configuration mode after adjustments.
10. Reset system settings as needed for seamless operation.
Solutions
Applications:
1. Factory Entrances
2. Pedestrian and Parallel Traffic Rejection
3. Parking Garage Detection
4. Barrier Arm Activation
- Customization with OEM logos is available.
- Benefit from long-term technical support, including online assistance.
- Explore our range of complementary products, including photocells, safety light curtains, and card readers, all tailored for gate automation applications. Expand your business with our comprehensive solutions.
