Dual Relay Motion Sensor for Vehicle People Differentiation in Industrial Door
| Place of Origin | China |
|---|---|
| Brand Name | JUTAI |
| Certification | FDA, E-MARK, CE, ISO, FCC, RoHS, DOT, ASTM, AS/NZS, CCC, GS |
| Model Number | RVP42-9ME |
| Minimum Order Quantity | 1 |
| Price | Negotiation |
| Packaging Details | Cartoon |
| Delivery Time | 5-8 days |
| Payment Terms | T/T, L/C, D/A, D/P, Western Union, Paypal, , MoneyGram, Alipay |
| Supply Ability | 1000 pieces per month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
WeChat: 0086 18588475571
skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Output | 2 Relays Output. Max.48 VAC/DC. Max.Current 1A | Power Supply | 12-28VAC, 12-36VDC |
|---|---|---|---|
| Frequency | 24.125GHz | Detection Height | 2m To 9m |
| HS Code | 9031809090 | Package Size | 28.00cm * 13.00cm * 10.00cm |
| Highlight | Dual Relay Motion Sensor,Vehicle People Differentiation Motion Sensor,Industrial Door Motion Sensor |
||
Product Description

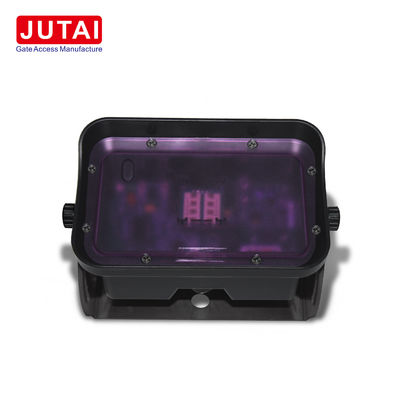

Dual Relay Motion Sensor for Vehicle People Differentiation in Industrial Door
Product Name: 24GHz Radar Motion Detector
Description: Experience unparalleled efficiency with our 24GHz Radar Motion Detector, meticulously crafted for industrial doors and automated gate systems. Its versatility extends to various environments, including high-speed doors, cold storage units, garage entrances, warehouse portals, and street lighting setups. This cutting-edge sensor is equipped with intelligent energy-saving capabilities, adjusting brightness levels based on detected objects to optimize power usage.
Key Features:
- Cross Traffic Masking and Person/Vehicle Discrimination: Our detector excels in accurately distinguishing between individuals and vehicles, significantly minimizing false alarms and bolstering system dependability.
- Dual Relay System: Featuring dual relays, it offers a diverse range of control functions to cater to different operational needs.
- Installation Height Flexibility: With suitability for heights ranging from 2 to 9 meters, it effortlessly adapts to various door and lighting configurations.
- Remote Control Accessibility: Take advantage of the remote control option for seamless parameter adjustment and customization.
- Bluetooth Integration: Our Bluetooth-enabled version enables users to tweak sensor parameters conveniently via a mobile app, ensuring hassle-free operation and management.
Elevate your industrial door and gate systems with our 24GHz Radar Motion Detector, delivering unparalleled features and reliability to optimize operational efficiency.
Product parameters:
| Application technology | Doppler radar |
| Transmission frequency | 24.125GHz |
| Transmission power | <20dBm |
| Detection height | 2.0m~9.0m |
| Angle adjustment | 0°-90°longitudinal |
| Detection speed | 5cm/s~25km/s |
| Detection area(30°Angle) | 3.0m*3.5m@height:2m 6.5m*8.5m@height:9m |
| Operation current | <100mA |
| Power frequency | 50Hz |
| Temperature range | -30 ºC~+60 ºC |
| Relative humidity | 0%to 95%,no condensation |
| Protection grade | IP65 |
| Relay output | 24VDC@1A [email protected] |
| External dimensions | 164mmx111mmx94.5mm |
| Cable length | 7m |
| Sensor weight | 650g |
| Operation voltage | 12~36VADC |
Detection Area
The microwave range offers a narrow or wide detection area that makes it suitable for all types of installations. The narrow setting is easy to set by simply clicking the narrow lens onto the radar module. By turning the module left or right and tilting it up and down the microwave can be adjusted quickly and easily for many different applications. No external set-up device is needed. Adjust the detection area with a Sensitivity potentiometer.
Dual Relay Functionality
Introducing our fully customizable radar motion sensor with dual relay outputs:
- Vehicle Detection Relay: Activates when a vehicle is detected.
- Person Detection Relay: Activates upon detecting human presence.
- Combined Mode: Both vehicle detection and person detection relays are active simultaneously.
The following configuration exclusively enables the vehicle detection mode while deactivating the person detection mode. Customize settings based on your project requirements.
Direction Recognition
Directional Detection Configuration:
- Forward Motion: Activates when approaching the sensor.
- Reverse Motion: Triggers upon backward movement away from the sensor.
- Bidirectional Sensing: Detects both forward and backward motion.
Enhanced Energy Efficiency:
Our system optimizes energy usage and manages pests by activating only when approaching traffic is detected. This ensures that the door remains open only when in use and automatically closes upon departure.
Seamless Operation:
Experience hassle-free door operation without the need to manually stop and push buttons. Our solution is suitable for both new installations and retrofitting, catering to dock and pedestrian doors with automated functionality.
Customizable Detection Modes:
Tailor detection settings to filter pedestrian, forklift, and parallel traffic, distinguishing between approaching and departing vehicles with precision.
Convenient Remote Control:
Utilize remote control or Bluetooth app settings for easy parameter adjustment and management, enhancing operational efficiency and convenience.
Remote control / Bluetooth APP programming enables the user to quickly and safely make changes from the ground.
1. Mounting height setting
2. Relay parameter setting
3. Detection area setting
4. Relay holding time setting
5. Direction recognition setting
6. Crossing traffic setting
7. Anti-interference function setting
8. Manual industrial door opening setting
9. Exit configuration mode
10. Reset
1. Mounting height setting
2. Relay parameter setting
3. Detection area setting
4. Relay holding time setting
5. Direction recognition setting
6. Crossing traffic setting
7. Anti-interference function setting
8. Manual industrial door opening setting
9. Exit configuration mode
10. Reset
Solutions
Applications
- Enhance security and efficiency with our Automatic Industry Door Sensor Types Radar Sensor, perfect for factory entrances.
- Ensure safety with pedestrian and parallel traffic rejection capabilities, ideal for busy industrial environments.
- Optimize parking garage management with our advanced detection technology.
- Enable barrier arm activation for seamless access control in various settings.
Experience the reliability and versatility of our radar sensor technology, customizable with OEM logos to suit your brand identity. Benefit from our long-term technical support, including online assistance, ensuring smooth operation and peace of mind.
Discover our complete range of complementary products, including photocells, safety light curtains, and card readers, specifically designed for gate automation applications. Elevate your business with our comprehensive solutions tailored to your needs.
