Waterproof Cross Traffic Masking Gate Motion Detector For Industrial Gate Opening
| Place of Origin | China |
|---|---|
| Brand Name | JUTAI |
| Certification | FDA, E-MARK, CE, ISO, FCC, RoHS, DOT, ASTM, AS/NZS, CCC, GS |
| Model Number | RVP42-9ME |
| Minimum Order Quantity | 1 |
| Price | Negotiation |
| Packaging Details | Cartoon |
| Delivery Time | 5-8 days |
| Payment Terms | T/T, L/C, D/A, D/P, Western Union, Paypal, , MoneyGram, Alipay |
| Supply Ability | 1000 pieces per month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
WeChat: 0086 18588475571
skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Output | 2 Relays Output. Max.48 VAC/DC. Max.Current 1A | Power Supply | 12-28VAC, 12-36VDC |
|---|---|---|---|
| Frequency | 24.125GHz | Detection Height | 2m To 9m |
| HS Code | 9031809090 | Package Size | 28.00cm * 13.00cm * 10.00cm |
| Highlight | industrial gate opening gate motion detector,cross traffic masking gate motion detector,waterproof gate motion detector |
||
Product Description

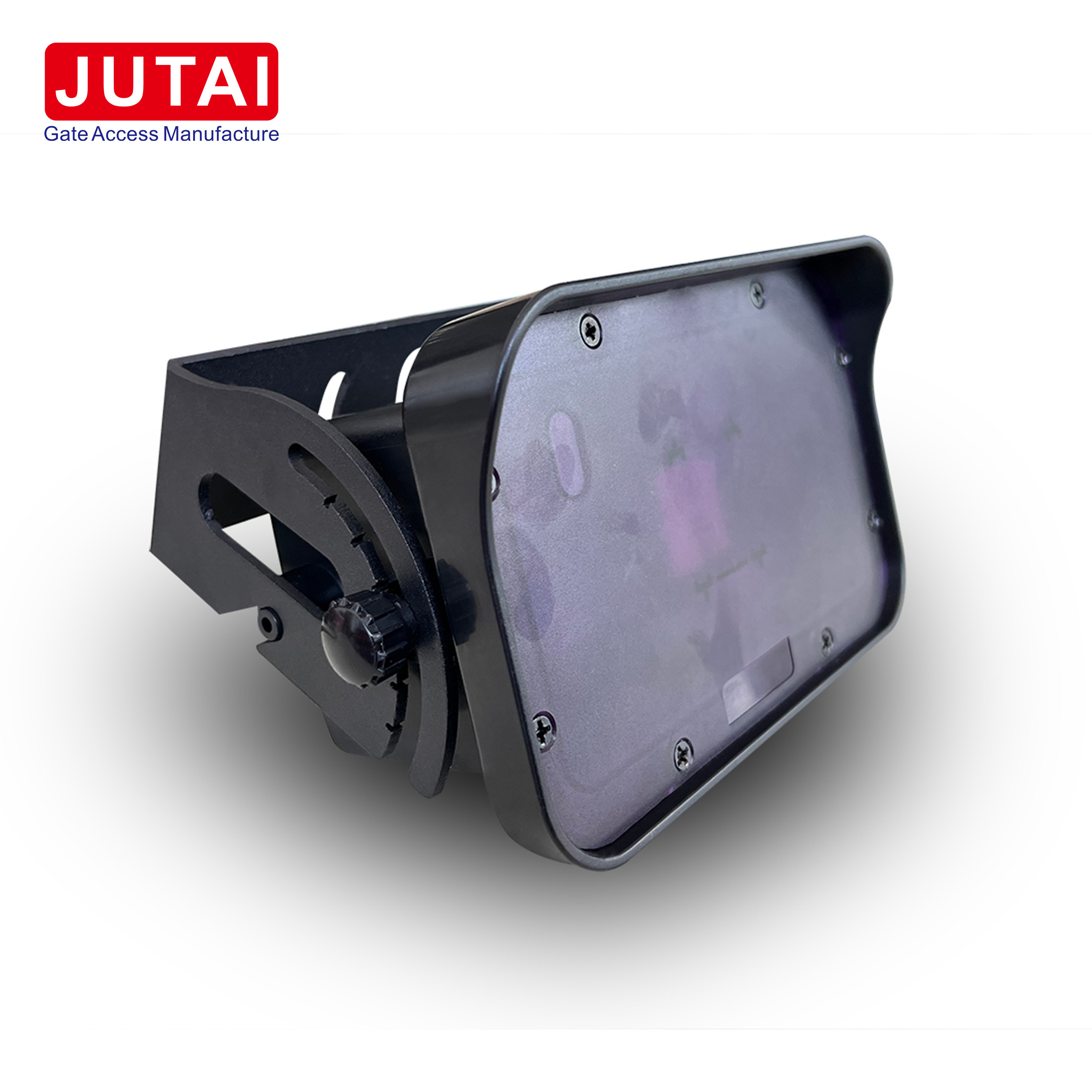

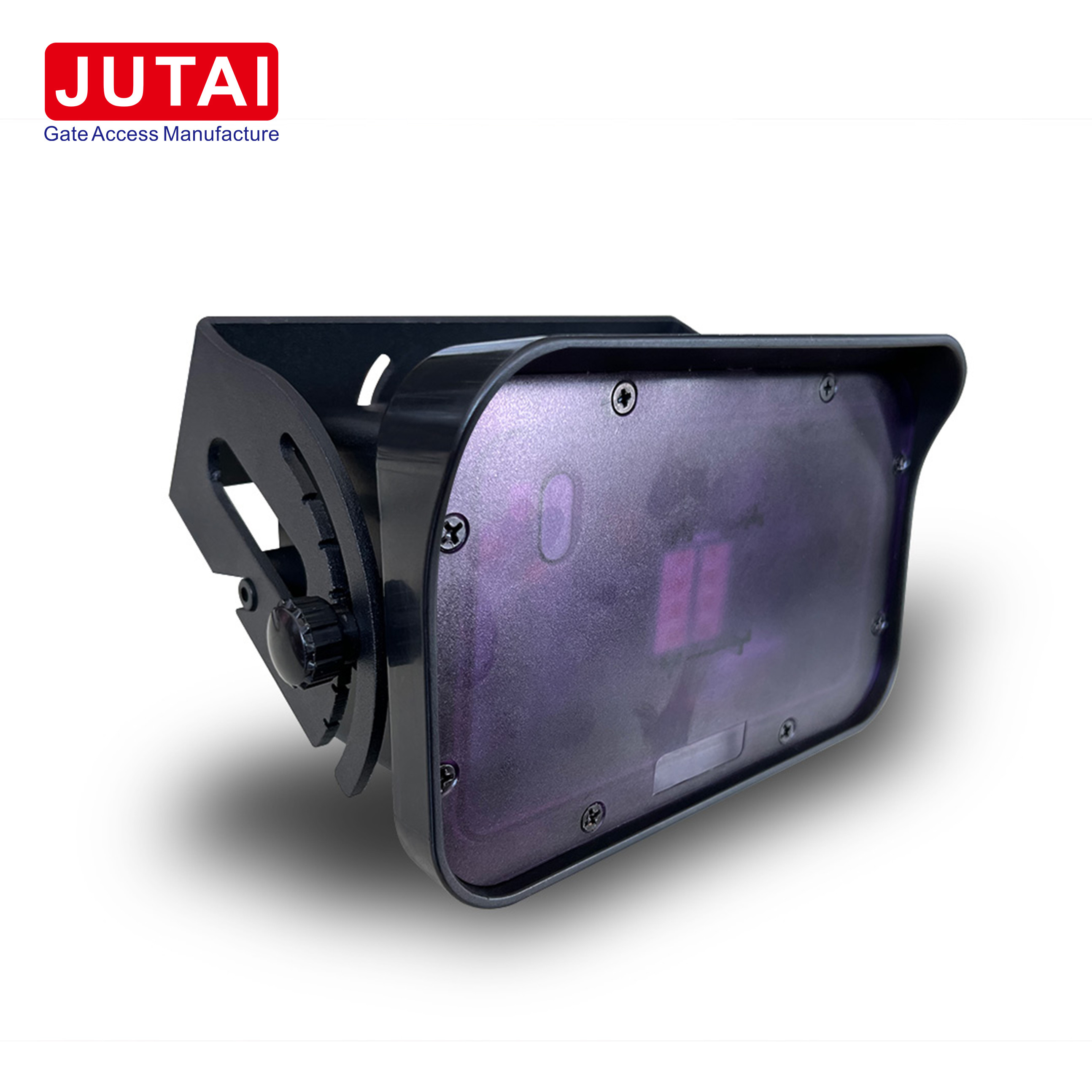

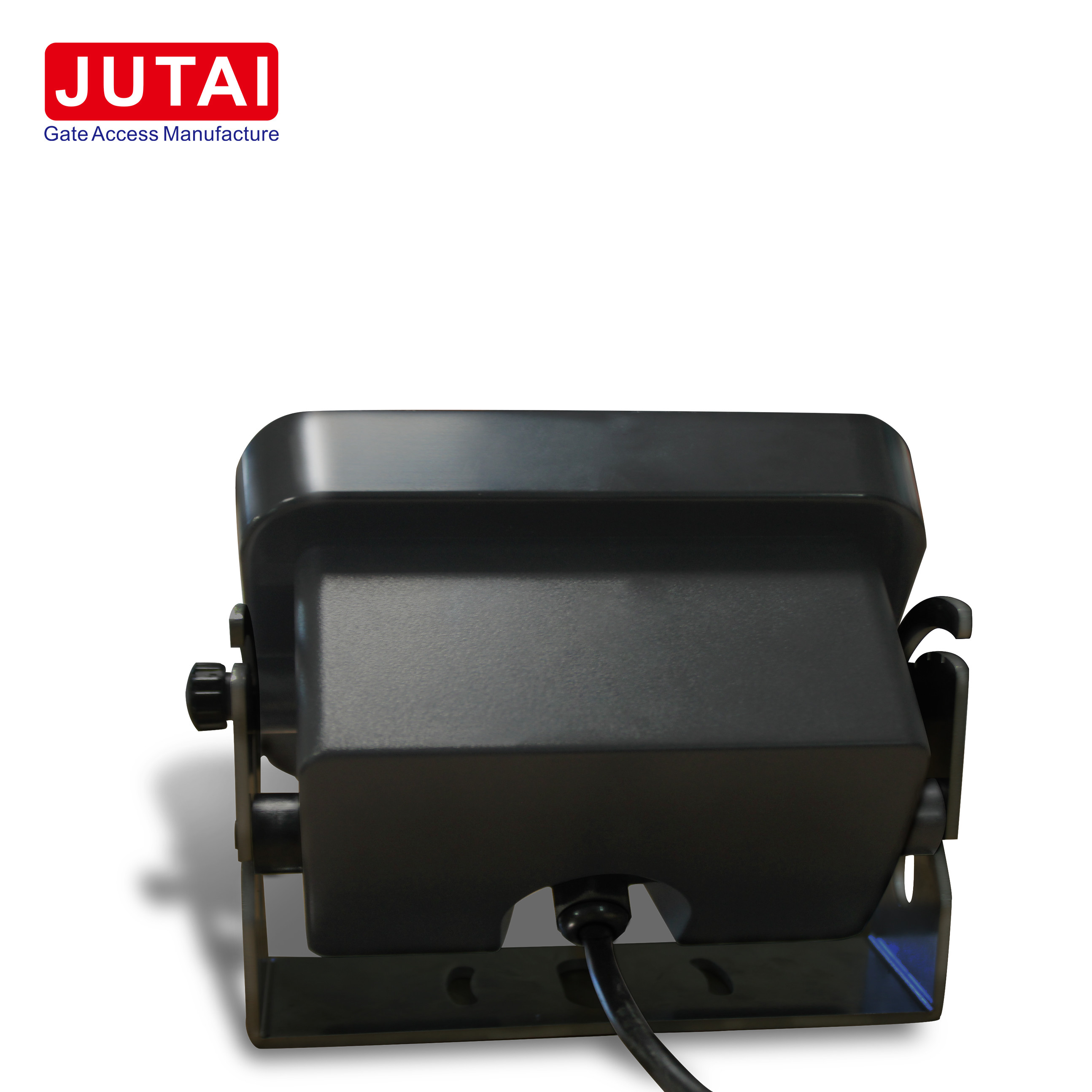

Waterproof Cross Traffic Masking Motion Sensor for Industrial Gate Opening
Product Name: 24GHz Radar Motion Detector
Description: Elevate your operational efficiency with our 24GHz Radar Motion Detector, meticulously designed for industrial doors and automated gate systems. Its adaptability spans across diverse environments, including high-speed doors, cold storage units, garage entrances, warehouse portals, and street lighting setups. This state-of-the-art sensor is equipped with intelligent energy-saving features, dynamically adjusting brightness levels based on detected objects to optimize power consumption.
Key Features:
- Advanced Cross Traffic Masking and Person/Vehicle Discrimination: Our detector excels in accurately discerning between individuals and vehicles, significantly reducing false alarms and enhancing system reliability.
- Dual Relay System: With dual relays, it offers a wide range of control functions to meet varied operational requirements effectively.
- Flexible Installation Height: Suitable for heights ranging from 2 to 9 meters, it effortlessly adapts to different door and lighting configurations.
- Remote Control Accessibility: Enjoy the convenience of remote control for seamless parameter adjustment and customization.
- Bluetooth Integration: Our Bluetooth-enabled version enables users to conveniently tweak sensor parameters via a mobile app, ensuring user-friendly operation and management.
Elevate your industrial door and gate systems with our 24GHz Radar Motion Detector, offering unmatched features and reliability to optimize operational efficiency.
Product parameters:
| Application technology | Doppler radar |
| Transmission frequency | 24.125GHz |
| Transmission power | <20dBm |
| Detection height | 2.0m~9.0m |
| Angle adjustment | 0°-90°longitudinal |
| Detection speed | 5cm/s~25km/s |
| Detection area(30°Angle) | 3.0m*3.5m@height:2m 6.5m*8.5m@height:9m |
| Operation current | <100mA |
| Power frequency | 50Hz |
| Temperature range | -30 ºC~+60 ºC |
| Relative humidity | 0%to 95%,no condensation |
| Protection grade | IP65 |
| Relay output | 24VDC@1A [email protected] |
| External dimensions | 164mmx111mmx94.5mm |
| Cable length | 7m |
| Sensor weight | 650g |
| Operation voltage | 12~36VADC |
Detection Area Adjustment
Our microwave range provides both narrow and wide detection areas, catering to diverse installation needs. Easily configure the narrow setting by attaching the narrow lens to the radar module. Adjusting the module's position is simple—turn it left or right and tilt it up or down to customize the microwave for various applications. No additional setup device is required. Fine-tune the detection area using the sensitivity potentiometer for optimal performance.

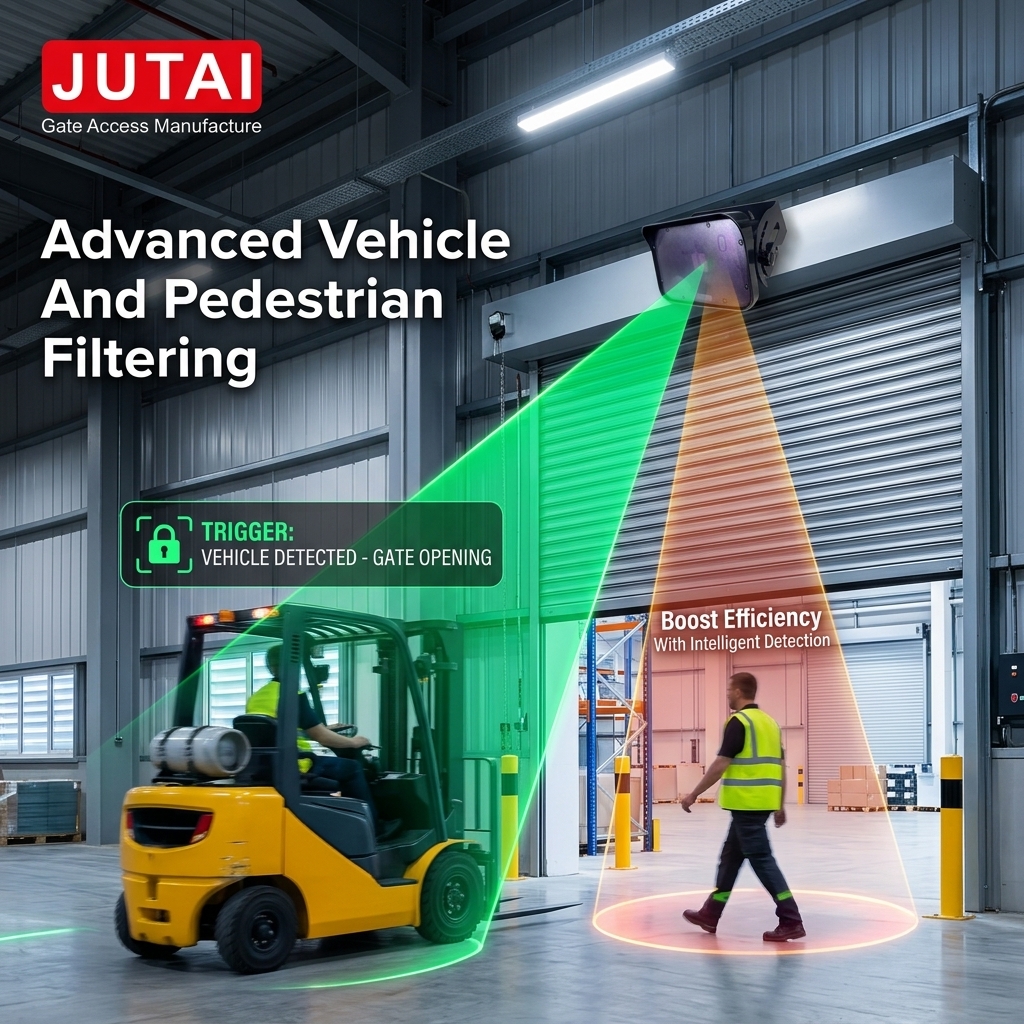

Dual Relay Configuration
- Discover our radar motion sensor equipped with dual relay functionality:
- Vehicle Detection Relay: Engages upon detecting a vehicle.
- Person Detection Relay: Activates in response to human presence.
- Combined Mode: Simultaneously activates both vehicle and person detection relays.
This configuration exclusively activates the vehicle detection mode while deactivating the person detection mode. Tailor settings to suit your project's unique specifications.
Direction Recognition
Directional Detection Settings:
- Forward Motion: Activates upon approaching the sensor.
- Reverse Motion: Triggers when moving away from the sensor.
- Bidirectional Sensing: Detects both forward and backward motion.
Efficient Energy Management:
Our system optimizes energy consumption and pest control by activating only in the presence of approaching traffic. This ensures that the door remains open only during usage and automatically closes when traffic departs.
Seamless Operation:
Enjoy effortless door operation without the need to manually intervene. Our solution is suitable for both new installations and retrofitting, catering to dock and pedestrian doors with automated functionality.
Customizable Detection Modes:
Tailor detection settings to filter pedestrian, forklift, and parallel traffic, accurately distinguishing between approaching and departing vehicles.
Convenient Remote Control:
Benefit from remote control or Bluetooth app settings for convenient parameter adjustment and management, enhancing operational efficiency and ease of use.
Remote control / Bluetooth APP programming enables the user to quickly and safely make changes from the ground.
1. Mounting height setting
2. Relay parameter setting
3. Detection area setting
4. Relay holding time setting
5. Direction recognition setting
6. Crossing traffic setting
7. Anti-interference function setting
8. Manual industrial door opening setting
9. Exit configuration mode
10. Reset
1. Mounting height setting
2. Relay parameter setting
3. Detection area setting
4. Relay holding time setting
5. Direction recognition setting
6. Crossing traffic setting
7. Anti-interference function setting
8. Manual industrial door opening setting
9. Exit configuration mode
10. Reset
Solutions
Applications
- Enhance security and efficiency with our Automatic Industry Door Sensor Types Radar Sensor, perfect for factory entrances.
- Ensure safety with pedestrian and parallel traffic rejection capabilities, ideal for busy industrial environments.
- Optimize parking garage management with our advanced detection technology.
- Enable barrier arm activation for seamless access control in various settings.
Explore the reliability and versatility of our radar sensor technology, tailored with OEM logos to align with your brand identity. Access long-term technical support, including online assistance, to ensure seamless operation and confidence in your system.
Uncover our extensive selection of complementary products, such as photocells, safety light curtains, and card readers, meticulously crafted for gate automation applications. Elevate your business with our holistic solutions designed to meet your specific requirements.
