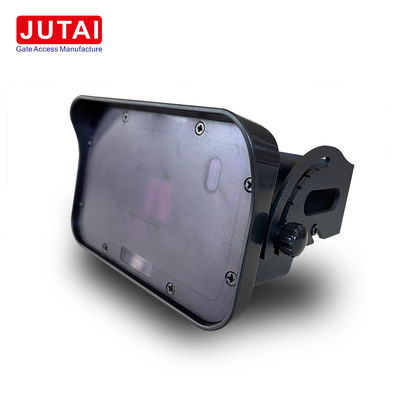

24.125GHz Gate Motion Sensor For Industrial Cold Storage Doors
| Place of Origin | China |
|---|---|
| Brand Name | JUTAI |
| Certification | FDA, E-MARK, CE, ISO, FCC, RoHS, DOT, ASTM, AS/NZS, CCC, GS |
| Model Number | RVP42-9ME |
| Minimum Order Quantity | 1 |
| Price | Negotiation |
| Packaging Details | Cartoon |
| Delivery Time | 5-8 days |
| Payment Terms | T/T, L/C, D/A, D/P, Western Union, Paypal, , MoneyGram, Alipay |
| Supply Ability | 1000 pieces per month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
WeChat: 0086 18588475571
skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Output | 2 Relays Output. Max.48 VAC/DC. Max.Current 1A | Power Supply | 12-28VAC, 12-36VDC |
|---|---|---|---|
| Frequency | 24.125GHz | Detection Height | 2m To 9m |
| HS Code | 9031809090 | Package Size | 28.00cm * 13.00cm * 10.00cm |
| Highlight | 24.125GHz gate motion sensor,gate motion sensor 24.125GHz,industrial cold storage doors gate motion sensor |
||
Product Description
Versatile Motion Sensor Suitable for Industrial Cold Storage Doors -30~70°C Operation
Product Features:
1. Detection Area:
Experience versatile detection capabilities with our microwave range, offering both narrow and wide detection areas suitable for various installations. Easily adjust the detection area by simply attaching the narrow lens onto the radar module and adjusting the module's position. No external setup device is required, with detection area adjustment accessible via a Sensitivity potentiometer.
2. Dual Relays Outputs:
Enjoy complete customization with our hands-free radar motion sensor featuring dual relay outputs:
a. Activates the vehicle-detection relay.
b. Triggers the person-detection relay.
c. Simultaneously activates both vehicle-detection and person-detection relays.
3. Direction Recognition:
Configure directional detection according to your requirements:
- Detect forward motion approaching the sensor.
- Identify backward movement away from the sensor.
- Detect motion in both forward and backward directions.
4. Energy Savings:
Enhance energy efficiency and pest control by limiting activation to approaching traffic. Ensure the door remains open only during use and automatically closes upon departure.
5. Workflow Optimization:
Streamline operations by opening doors without manual intervention. Our solution caters to both dock and pedestrian doors, offering adjustable detection settings for pedestrian, forklift, and parallel traffic rejection, effectively distinguishing between approaching and departing traffic.
6. Remote Control Adjustments:
Benefit from convenient remote control programming, allowing quick and safe adjustments from ground level for enhanced operational efficiency.
Product parameters:
| Application technology | Doppler radar |
| Transmission frequency | 24.125GHz |
| Transmission power | <20dBm |
| Detection height | 2.0m~9.0m |
| Angle adjustment | 0°-90°longitudinal |
| Detection speed | 5cm/s~25km/s |
| Detection area(30°Angle) | 3.0m*3.5m@height:2m 6.5m*8.5m@height:9m |
| Operation current | <100mA |
| Power frequency | 50Hz |
| Temperature range | -30 ºC~+60 ºC |
| Relative humidity | 0%to 95%,no condensation |
| Protection grade | IP65 |
| Relay output | 24VDC@1A [email protected] |
| External dimensions | 164mmx111mmx94.5mm |
| Cable length | 7m |
| Sensor weight | 650g |
| Operation voltage | 12~36VADC |

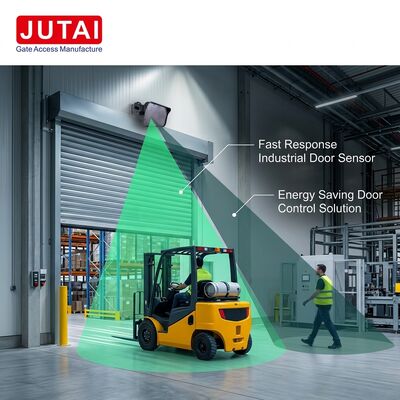

Detection Area Adjustment
Our microwave range provides both narrow and wide detection areas, catering to diverse installation needs. Easily configure the narrow setting by attaching the narrow lens to the radar module. Adjusting the module's position is simple—turn it left or right and tilt it up or down to customize the microwave for various applications. No additional setup device is required. Fine-tune the detection area using the sensitivity potentiometer for optimal performance.
Dual Relay Configuration
- Discover our radar motion sensor equipped with dual relay functionality:
- Vehicle Detection Relay: Engages upon detecting a vehicle.
- Person Detection Relay: Activates in response to human presence.
- Combined Mode: Simultaneously activates both vehicle and person detection relays.
This configuration exclusively activates the vehicle detection mode while deactivating the person detection mode. Tailor settings to suit your project's unique specifications.
Direction Recognition
Directional Detection Configuration: Forward Motion: Activates upon approach to the sensor.
Reverse Motion: Triggers upon movement away from the sensor.
Bidirectional Sensing: Detects both forward and backward motion.
Efficient Energy Management: Our system optimizes energy consumption and controls pests by activating only when approaching traffic is detected. This ensures that the door remains open only during usage and automatically closes when traffic departs.
Seamless Operation: Experience effortless door operation without manual intervention. Our solution caters to both new installations and retrofits, accommodating dock and pedestrian doors with automated functionality.
Customizable Detection Modes: Tailor detection settings to filter pedestrian, forklift, and parallel traffic, accurately distinguishing between approaching and departing vehicles.
Convenient Remote Control: Enjoy the convenience of remote control or Bluetooth app settings for parameter adjustment and management, enhancing operational efficiency and ease of use.
Remote control / Bluetooth APP programming enables the user to quickly and safely make changes from the ground.
1. Mounting height setting
2. Relay parameter setting
3. Detection area setting
4. Relay holding time setting
5. Direction recognition setting
6. Crossing traffic setting
7. Anti-interference function setting
8. Manual industrial door opening setting
9. Exit configuration mode
10. Reset
1. Mounting height setting
2. Relay parameter setting
3. Detection area setting
4. Relay holding time setting
5. Direction recognition setting
6. Crossing traffic setting
7. Anti-interference function setting
8. Manual industrial door opening setting
9. Exit configuration mode
10. Reset
Solutions
Applications
- Enhance security and efficiency with our Automatic Industry Door Sensor Types Radar Sensor, perfect for factory entrances.
- Ensure safety with pedestrian and parallel traffic rejection capabilities, ideal for busy industrial environments.
- Optimize parking garage management with our advanced detection technology.
- Enable barrier arm activation for seamless access control in various settings.
Explore the reliability and versatility of our radar sensor technology, tailored with OEM logos to align with your brand identity. Access long-term technical support, including online assistance, to ensure seamless operation and confidence in your system.
Uncover our extensive selection of complementary products, such as photocells, safety light curtains, and card readers, meticulously crafted for gate automation applications. Elevate your business with our holistic solutions designed to meet your specific requirements.
