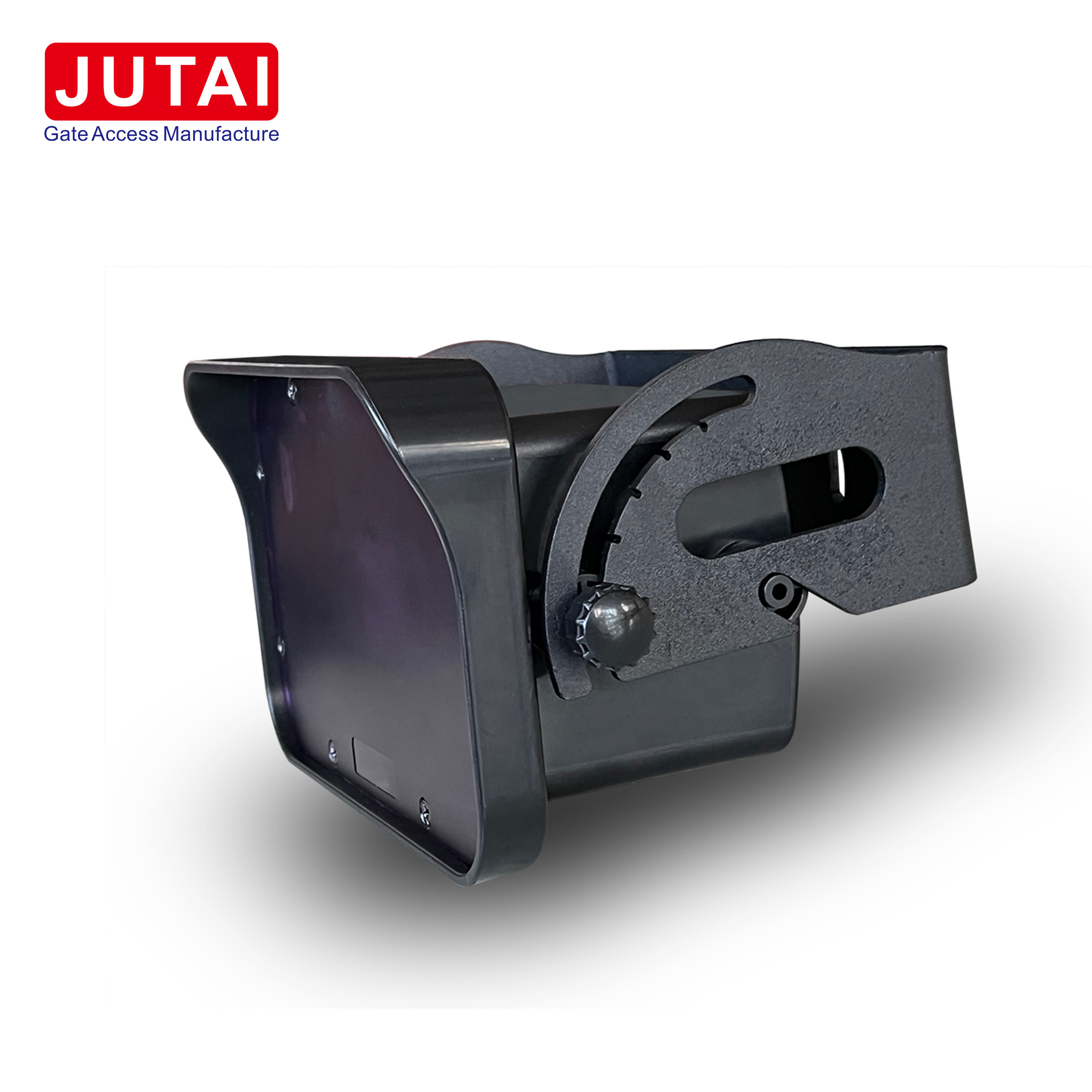

Bluetooth APP Weatherproof Motion Sensor IP65 Rated 24GHz Radar Motion Detector
| Place of Origin | China |
|---|---|
| Brand Name | JUTAI |
| Certification | FDA, E-MARK, CE, ISO, FCC, RoHS, DOT, ASTM, AS/NZS, CCC, GS |
| Model Number | RVP42-9BW |
| Minimum Order Quantity | 1 |
| Price | Negotiation |
| Packaging Details | Cartoon |
| Delivery Time | 5-8 days |
| Payment Terms | T/T, L/C, D/A, D/P, Western Union, Paypal, , MoneyGram, Alipay |
| Supply Ability | 1000 pieces per month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
WeChat: 0086 18588475571
skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Setting | Bluetooth App | Output | 2 Relays Output. Max.48 VAC/DC. Max.Current 1A |
|---|---|---|---|
| Power Supply | 12-28VAC, 12-36VDC | Frequency | 24.125GHz |
| Detection Height | 2m To 9m | Package Size | 28.00cm * 13.00cm * 10.00cm |
| Highlight | Bluetooth APP weatherproof motion sensor,radar motion detector IP65,24GHz radar motion detector |
||
Product Description
Product Name: 24GHz Bluetooth App Radar Motion Detector
Bluetooth APP Weatherproof Motion Sensor Harsh Environments IP65 Rated -30~70°C

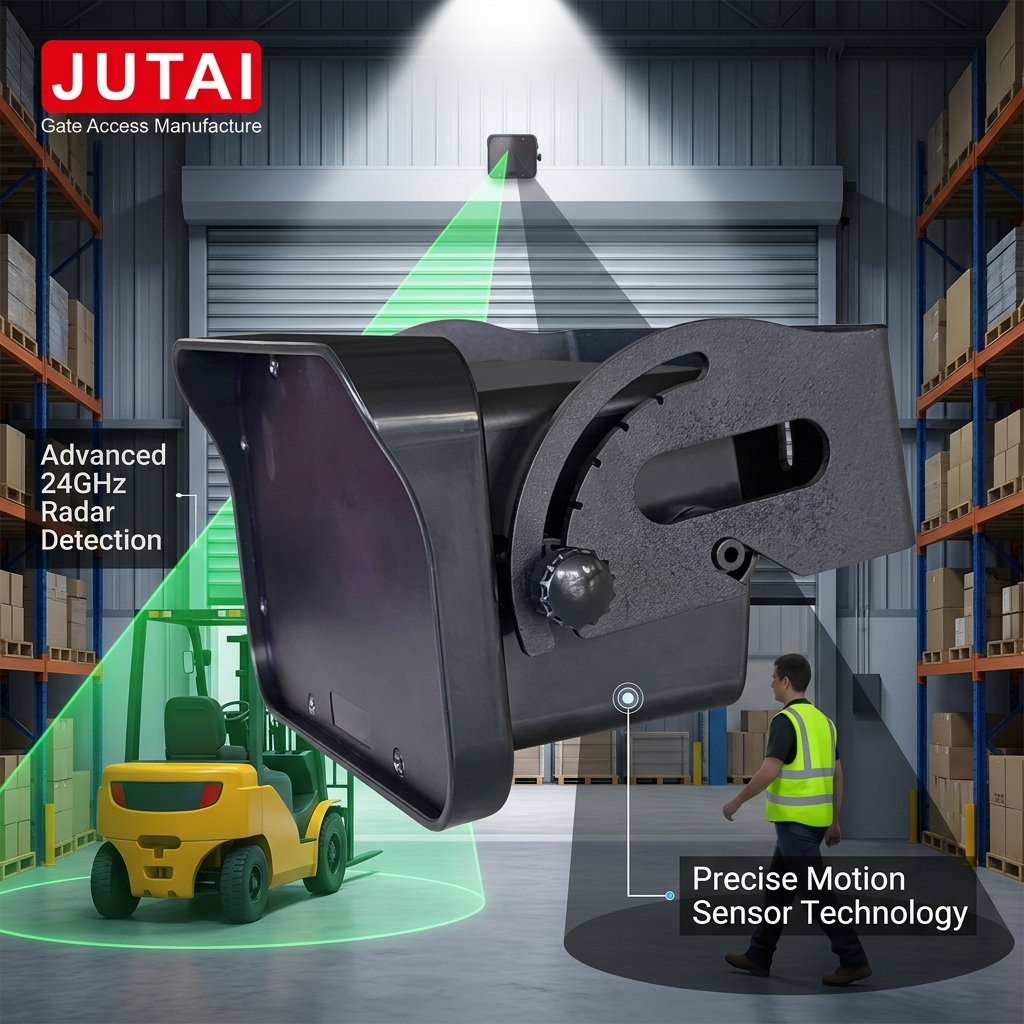

Description: Elevate operational efficiency with our meticulously designed 24GHz Radar Motion Detector, crafted for industrial doors and automated gate systems. Adapt to diverse environments, including high-speed doors, cold storage units, garage entrances, warehouse portals, and street lighting setups. Our state-of-the-art sensor features intelligent energy-saving capabilities, dynamically adjusting brightness levels based on detected objects to optimize power consumption.
Key Features:
1. Advanced Detection Area: Unlock versatile capabilities with our microwave range, offering narrow and wide detection areas suitable for various installations. Easily adjust the detection area using the included narrow lens and Sensitivity potentiometer.
2. Dual Relay Outputs: Experience complete customization with dual relay outputs, activating vehicle-detection, person-detection, or both simultaneously for tailored control functions.
3. Direction Recognition: Configure directional detection to identify forward and backward motion, ensuring precise monitoring of approaching and departing traffic.
4. Energy Efficiency: Boost efficiency and pest control by limiting activation to approaching traffic, ensuring the door opens only during use and closes automatically upon departure.
5. Workflow Optimization: Streamline operations with hands-free door control, catering to both dock and pedestrian doors. Adjustable detection settings enable precise filtering of pedestrian, forklift, and parallel traffic.
6. Remote Control Accessibility: Enjoy convenient parameter adjustments with remote control programming, enhancing operational efficiency from ground level.
7. Bluetooth Integration: Effortlessly set parameters via Bluetooth using our mobile app, available for iOS and Android devices. Seamlessly integrate modern technology for enhanced usability and management.
Elevate your industrial door and gate systems with our 24GHz Radar Motion Detector, offering unmatched features and reliability for optimized operational efficiency.
IOS APP
Visit the App Store to Download Simply open the App Store, search for "GL control," and tap to download.
Android APP
Scan QR Code to Download and Connect to GL Control.
Android users can download and install GL Control by scanning the QR code below. Click "Install," open Bluetooth, and enjoy seamless connectivity.
Product parameters:
| Application technology | Doppler radar |
| Transmission frequency | 24.125GHz |
| Transmission power | <20dBm |
| Detection height | 2.0m~9.0m |
| Angle adjustment | 0°-90°longitudinal |
| Detection speed | 5cm/s~25km/s |
| Detection area(30°Angle) | 3.0m*3.5m@height:2m 6.5m*8.5m@height:9m |
| Operation current | <100mA |
| Power frequency | 50Hz |
| Temperature range | -30 ºC~+60 ºC |
| Relative humidity | 0%to 95%,no condensation |
| Protection grade | IP65 |
| Relay output | 24VDC@1A [email protected] |
| External dimensions | 164mmx111mmx94.5mm |
| Cable length | 7m |
| Sensor weight | 650g |
| Operation voltage |
12~36VADC |
Detection Area Adjustment
Our microwave range provides both narrow and wide detection areas, catering to diverse installation needs. Easily configure the narrow setting by attaching the narrow lens to the radar module. Adjusting the module's position is simple—turn it left or right and tilt it up or down to customize the microwave for various applications. No additional setup device is required. Fine-tune the detection area using the sensitivity potentiometer for optimal performance.
Dual Relay Customization
- Explore our radar motion sensor with dual relay capabilities:
- Vehicle Detection Relay: Initiates upon vehicle detection.
- Person Detection Relay: Engages when detecting human presence.
- Combined Mode: Activates both vehicle and person detection relays simultaneously.
This setting exclusively triggers the vehicle detection mode while deactivating the person detection mode. Customize settings according to your project requirements.
Direction Recognition
Directional Sensing Configuration:
- Forward Motion: Activates upon approach to the sensor.
- Reverse Motion: Triggers when moving away from the sensor.
- Bidirectional Sensing: Detects both forward and backward motion.
Efficient Energy Management:
Our system optimizes energy consumption and pest control by activating only in the presence of approaching traffic. This ensures the door remains open only during usage and automatically closes when traffic departs.
Seamless Operation:
Experience effortless door operation without manual intervention. Our solution caters to both new installations and retrofits, accommodating dock and pedestrian doors with automated functionality.
Customizable Detection Modes:
Tailor detection settings to filter pedestrian, forklift, and parallel traffic, accurately distinguishing between approaching and departing vehicles.
Convenient Remote Control:
Enjoy the convenience of remote control or Bluetooth app settings for parameter adjustment and management, enhancing operational efficiency and ease of use.
Remote control / Bluetooth APP programming enables the user to quickly and safely make changes from the ground.
1. Mounting height setting
2. Relay parameter setting
3. Detection area setting
4. Relay holding time setting
5. Direction recognition setting
6. Crossing traffic setting
7. Anti-interference function setting
8. Manual industrial door opening setting
9. Exit configuration mode
10. Reset
1. Mounting height setting
2. Relay parameter setting
3. Detection area setting
4. Relay holding time setting
5. Direction recognition setting
6. Crossing traffic setting
7. Anti-interference function setting
8. Manual industrial door opening setting
9. Exit configuration mode
10. Reset
Solutions
Applications
- Enhance security and efficiency with our Automatic Industry Door Sensor Types Radar Sensor, perfect for factory entrances.
- Ensure safety with pedestrian and parallel traffic rejection capabilities, ideal for busy industrial environments.
- Optimize parking garage management with our advanced detection technology.
- Enable barrier arm activation for seamless access control in various settings.
Explore the reliability and versatility of our radar sensor technology, tailored with OEM logos to align with your brand identity. Access long-term technical support, including online assistance, to ensure seamless operation and confidence in your system.
Uncover our extensive selection of complementary products, such as photocells, safety light curtains, and card readers, meticulously crafted for gate automation applications. Elevate your business with our holistic solutions designed to meet your specific requirements.
