Four Step Switch Selectable 20-80KHz Auto Reset Loop Detector with Lightning Protection for Barrier Gates
| Place of Origin | China |
|---|---|
| Brand Name | JUTAI |
| Certification | CE |
| Model Number | LD-100 |
| Minimum Order Quantity | 1 |
| Price | Negotiable |
| Packaging Details | Carton Parcking(13.5*8.5*5cm)/0.3kg/unit |
| Delivery Time | 3-5 working days after receipt the payment |
| Payment Terms | T/T,L/C,D/A,D/P,Western Union,Paypal,MoneyGram,Alipay |
| Supply Ability | 10000pcs/month |
Product Details
| Power Supplu | 12-24VADC | Self-turning Range | 20-2000μH |
|---|---|---|---|
| Sensitivity | 6 Way Selectable/Highest0.010%DL/L/ Lowest 2.56%DL/L | Frequency | Four Step Switch Selectable 20-80KHz |
| Operation Tempts | -40℃ To +70℃ / (-111°F To +158°F) | Fault Output | Blinks Slowly: May Indicate A Short Circuit Or Insufficient Number Of Turns Blinks Faster: May Indicate An Open Loop Or Excessive Number Of Turns |
| Response Times | Turn-on 10-90MS / Turn-off 10-90MS | Relay | Presence Relay / Fault Relay |
| Highlight | 20-80khz loop detector for gate barrier,20-80khz gate barrier loop detector,10-90ms gate barrier loop detector |
||
Product Description
Four Step Switch Selectable 20-80KHz Loop Detector For Gate Barrier
Barrier Gate Loop Sensor Detector
Gate Access Single Channel Loop Detectors 12V 24VADC For Boom Barrier Gate Door Opener
Loop detectors have become essential tools with numerous applications in security and traffic control systems. The automation of gates and doors represents one of the most popular uses for loop detector technology.
The digital technology in loop detectors enables the equipment to sense changes in loop inductance when metal objects are detected. The inductive loop, made of insulated electrical wire (32/020; 32 Strand, 2mm diameter), is typically arranged in square or rectangular shapes. Proper installation requires consideration of loop sensitivity across different surfaces, with 16 adjustable levels available via trimpot for maximum detection performance.

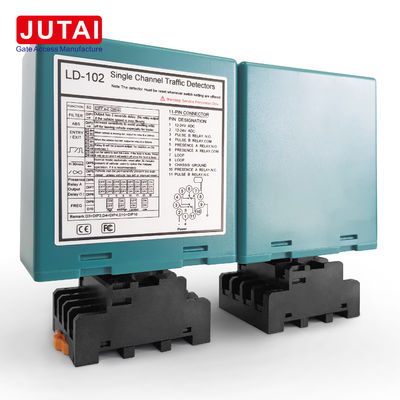

JUTAI Gate Access Single Channel Loop detectors LD-102 are designed for vehicle detection applications including access monitoring, security safeguarding, and vehicle counting. The output signals control door and gate drive mechanisms, operate barriers, manage traffic light systems in parking facilities, and activate card dispensers.
The LD-102 Enhanced Vehicle Detector includes an integral fault relay that provides output during loop fault conditions, ensuring reliable operation.
Key Advantages
- Wide Sensing Range & Enhanced Sensitivity: Accurately detects diverse vehicles with a sensing range from 15 to 2000μH
- Automatic Reset Capability: Activates automatic reset in case of malfunction, enhancing system stability
- Flexible Detection Level Selection: Offers 16 selectable levels for tailored requirements
- Robust Lightning Protection: Withstands lightning strikes up to 40000V for sustained operation
- Broad Operating Environment Range: Operates from -40°C to +70°C for consistent performance in diverse weather conditions
Experience reliable vehicle detection with JUTAI LD-102 Loop Detector for Parking Barrier Gates.
Product Specifications
| Specification | Value |
|---|---|
| Self-tuning Range | 20-2000μH |
| Sensitivity | 16-way selectable / Highest 0.010% DL/L / Lowest 2.56% DL/L |
| Frequency | Four-step switch selectable 20-80KHz |
| Power Requirements | 110-240VAC (48 to 62Hz) / 12-24VADC |
| Operation Temperature | -40℃ to +70℃ / (-111°F to +158°F) |
| Fault Output | Blinks slowly: may indicate a short circuit or insufficient number of turns Blinks faster: may indicate an open loop or excessive number of turns |
| Response Times | Turn-on 10-90MS / Turn-off 10-90MS |
| Visual Indications | Power LED - Red Channel LED - Green |
| Reset | Reset by push button on the front of the enclosure |
| Relay Output | Presence relay / Fault relay |
| Humidity | Up to 95% relative humidity without condensation |
Connection Details
DIP Switch Settings
Switch 2 Configuration
DIP 1 & DIP 2 Setting Special Functions
DIP 3 & DIP 4 Setting Relay B Output
DIP 5 Setting Automatic Reset
DIP 6 & DIP 7 & DIP 8 Setting Relay A Delay
DIP 9 & DIP 10 Setting Frequency (40 K to 100 KHz) - Used to avoid interference
Loop Installation
Mass Production
Our production line ensures efficient mass production, rigorous quality control, and thorough pre-shipment testing to deliver loop detector products of the utmost perfection.
