1ch Loop Detector With Pulse Presence Relay High Sensitivity For Container Truck
| Place of Origin | China |
|---|---|
| Brand Name | JUTAI |
| Certification | CE |
| Model Number | LD-100 |
| Minimum Order Quantity | 1 |
| Price | Negotiable |
| Packaging Details | Carton Parcking(13.5*8.5*5cm)/0.3kg/unit |
| Delivery Time | 3-5 working days after receipt the payment |
| Payment Terms | T/T,L/C,D/A,D/P,Western Union,Paypal,MoneyGram,Alipay |
| Supply Ability | 10000pcs/month |
Product Details
| Power Supplu | 110-240v | Self-turning Range | 20-2000μH |
|---|---|---|---|
| Sensitivity | 6 Way Selectable/Highest0.010%DL/L/ Lowest 2.56%DL/L | Frequency | Four Step Switch Selectable20-80KHz |
| Operation Tempts | -40℃ To +70℃ / (-111°F To +158°F) | Fault Output | Blinks Slowly: May Indicate A Short Circuit Or Insufficient Number Of Turns Blinks Faster: May Indicate An Open Loop Or Excessive Number Of Turns |
| Response Times | Turn-on 10-90MS / Turn-off 10-90MS | Relay | Presence Relay / Fault Relay |
| Highlight | Loop Detector with Pulse Presence Relay,High Sensitivity 1ch Loop Detector,Loop Detector for Container truck |
||
Product Description

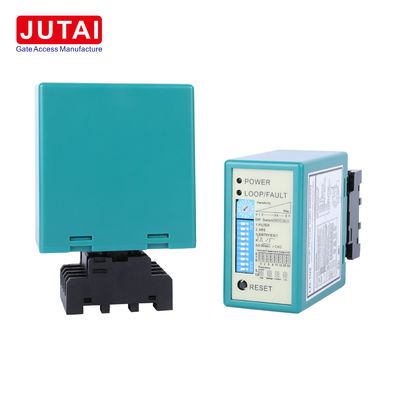

JUTAI LD-100 Compact Single Channel Vehicle Loop Detector
The JUTAI LD-100 Compact Single Channel Vehicle Loop Detector is designed for parking barrier gates, providing efficient identification and detection of various vehicles, including oversized vehicles, trucks, and motorcycles, for seamless automatic gate opening and closing.
Key Advantages
Compact Design
Compact and well-engineered housing allows seamless incorporation into any existing traffic detection system.
Diagnostic Capabilities
Comprehensive diagnostic capabilities ensure accurate diagnosis of loop and installation problems.
Selectable Presence Time
Output can be adjusted to limit detection output to fixed time (time > 30 minutes) while vehicle remains on loop.
Frequency Adjustment
Interference between adjacent loops/detectors can be eliminated by adjusting frequency setting.
Dual Output Relays
Presence Relay A and Pulse Relay B with programmable options via external switches.
Fault Detection
Integral fault relay provides output in event of loop fault condition.
Technical Specifications
| Specification | Value |
|---|---|
| Self-turning Range | 20-2000μH |
| Sensitivity | 16-way selectable / Highest 0.010% DL/L / Lowest 2.56% DL/L |
| Frequency | Four-step switch selectable 20-80KHz |
| Power Requirements | 110-240VAC (48 to 62Hz) |
| Operation Temperature | -40℃ to +70℃ / (-111°F to +158°F) |
| Response Times | Turn-on 10-90MS / Turn-off 10-90MS |
| Visual Indications | Power LED - Red Channel LED - Green |
| Relay Output | Presence relay / Fault relay |
| Humidity | Up to 95% relative humidity without condensation |
DIP Switch Settings
The LD-100 features comprehensive DIP switch configuration for optimal performance:
DIP 1 & 2: Special Functions
DIP 3 & 4: Relay B Output
DIP 5: Automatic Reset
DIP 6, 7 & 8: Relay A Delay
DIP 9 & 10: Frequency Selection
Loop Installation Guide
Product Comparison
Product Variants
Available in multiple configurations to suit different requirements:
- LD-100: Single channel, boxed, 1 type 11pin connects 100-240VAC (EU standard)
- LD-102: Single channel, boxed, 1 type 11pin connects 12-24VADC (EU standard)
- LD-105: Single channel, boxed, 2 type 11pin connects 100-240VAC (USA standard)
- LD-106: Single channel, boxed, 2 type 11pin connects 12-24VADC (USA standard)
Quality Assurance
Our production line ensures efficient mass production, rigorous quality control, and thorough pre-shipment testing to deliver loop detector products of the utmost perfection.
Certifications
Why Choose JUTAI?
Industry Experience
With over 15 years of expertise in manufacturing vehicle loop detectors, JUTAI has comprehensive market knowledge and understands product nuances.
Comprehensive Support
Benefit from our 2-year warranty and dedicated 24/7 after-sales service with online technical support.
Flexible Ordering
We accommodate both sample orders and large-scale OEM/ODM projects with custom solutions.
Quality Commitment
We guarantee swift replacement with new products in the rare event of any issues, prioritizing customer satisfaction.
Ordering Information
Minimum Order Quantity
Flexible ordering with sample orders and bulk orders available
Delivery Time
2 to 10 working days depending on order quantity and stock availability
Customization
Comprehensive OEM/ODM services available to meet exact requirements
