LD-100 Driveway Loop Detector Dual Relay Sensitivity 6 Way Selectable

  • LD-100 Driveway Loop Detector Dual Relay Sensitivity 6 Way Selectable
  • LD-100 Driveway Loop Detector Dual Relay Sensitivity 6 Way Selectable
  • LD-100 Driveway Loop Detector Dual Relay Sensitivity 6 Way Selectable
Place of Origin China
Brand Name JUTAI
Certification CE
Model Number LD-100
Minimum Order Quantity 1
Price Negotiable
Packaging Details Carton Parcking(13.5*8.5*5cm)/0.3kg/unit
Delivery Time 3-5 working days after receipt the payment
Payment Terms T/T, L/C, D/A, D/P, Western Union, Paypal, , MoneyGram, Alipay
Supply Ability 10000pcs/month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

WeChat: 0086 18588475571

skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Power Supplu 110-240v Self-turning Range 20-2000μH
Sensitivity 6 Way Selectable/Highest0.010%DL/L/ Lowest 2.56%DL/L Frequency Four Step Switch Selectable20-80KHz
Operation Tempts -40℃ To +70℃ / (-111°F To +158°F) Fault Output Blinks Slowly: May Indicate A Short Circuit Or Insufficient Number Of Turns
Blinks Faster: May Indicate An Open Loop Or Excessive Number Of Turns
Response Times Turn-on 10-90MS / Turn-off 10-90MS Relay Presence Relay / Fault Relay
Highlight

driveway loop detector

,

LD-100 Loop Detector

,

Loop Detector Dual Relay
Leave a Message
Product Description



LD-100 Loop Detector Dual-Relay For Any Coil Size 20~2000μH for truck Tractor oil tanker

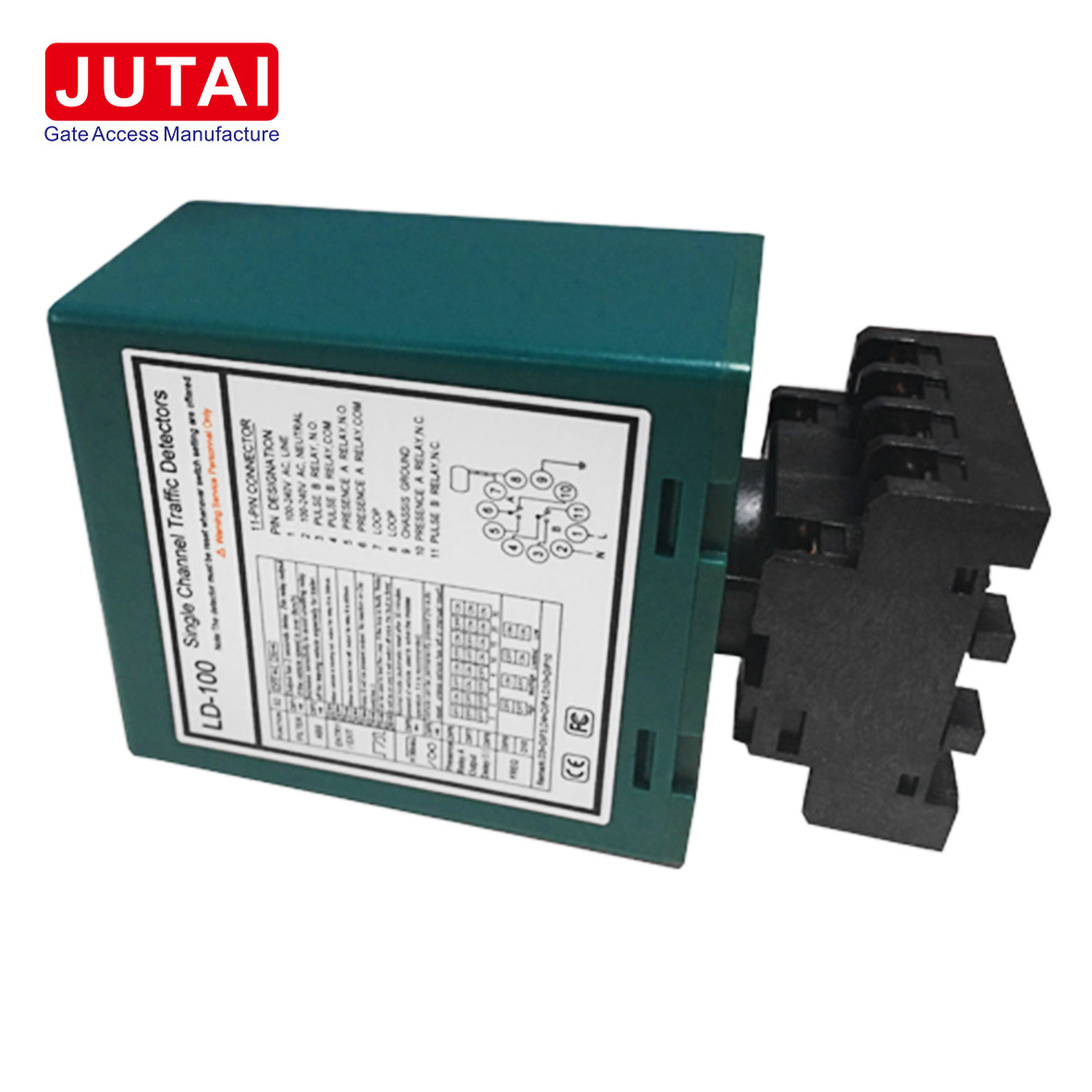

Product Name: JUTAI LD-100 Compact Single Channel Vehicle Loop Detector





Description:

Experience streamlined parking barrier control with the JUTAI LD-100 Advanced Vehicle Loop Detector. Engineered with precision and reliability in mind, this compact detector seamlessly integrates into any traffic detection system, ensuring effortless operation and optimal performance.



Advantages:

  1. Streamlined Design: The LD-100 features a compact and sleek housing, seamlessly integrating into existing traffic detection systems for hassle-free installation.
  2. Comprehensive Diagnostics: Advanced diagnostic capabilities enable accurate detection and troubleshooting of loop and installation issues, optimizing performance and reliability.
  3. Customizable Detection: Tailor detection output duration with selectable presence time, enhancing adaptability for diverse parking scenarios and operational needs.
  4. Interference Management: Detect and mitigate interference between adjacent loops/detectors with frequency adjustment, ensuring consistent and reliable operation in any environment.
  5. Dual Relay Outputs: Equipped with two separate output relays - Presence Relay A for adjustable presence output and Pulse Relay B for customizable pulse options, providing operational versatility and control.
  6. Fault Detection: Built-in integral fault relay promptly alerts in case of loop fault conditions, ensuring continuous monitoring and operational reliability for uninterrupted parking barrier control.

Discover the efficiency and reliability of the JUTAI LD-100 Advanced Vehicle Loop Detector, designed to enhance parking barrier control systems with seamless operation and optimal performance.


Product parameters:

Specification Value
Self-turning Range 20-2000μH
Sensitivity 16-way selectable / Highest 0.010% DL/L / Lowest 2.56% DL/L
Frequency Four-step switch selectable 20-80KHz
Power Requirements 110-240VAC (48 to 62Hz)
Operation Temp -40℃ to +70℃ / (-111°F to +158°F)
Fault Output Blinks slowly: may indicate a short circuit or insufficient number of turns <br> Blinks faster: may indicate an open loop or excessive number of turns
Response Times Turn-on 10-90MS / Turn-off 10-90MS
Visual Indications Power LED - Red <br> Channel LED - Green
Reset Reset by push button on the front of the enclosure
Relay Output Presence relay / Fault relay
Humidity Up to 95% relative humidity without condensation



Switch 2 (Dipswitch Settings)


1.DIP 1 & DIP 2 Setting Special Functions
LD-100 Driveway Loop Detector Dual Relay Sensitivity 6 Way Selectable 0

2.DIP 3 & DIP 4 Setting Relay B Output
LD-100 Driveway Loop Detector Dual Relay Sensitivity 6 Way Selectable 1

3. DIP 5 Setting Automatic Reset
LD-100 Driveway Loop Detector Dual Relay Sensitivity 6 Way Selectable 2

4. DIP 6 & DIP 7 & DIP 8 Setting Relay A Delay
LD-100 Driveway Loop Detector Dual Relay Sensitivity 6 Way Selectable 3

5. DIP 9 & DIP 10 Setting Frequency (40 K to 100 KHz). Used to avoid the interference

LD-100 Driveway Loop Detector Dual Relay Sensitivity 6 Way Selectable 4



Loop Installation:
LD-100 Driveway Loop Detector Dual Relay Sensitivity 6 Way Selectable 5

Trouble Shooting:

LD-100 Driveway Loop Detector Dual Relay Sensitivity 6 Way Selectable 6

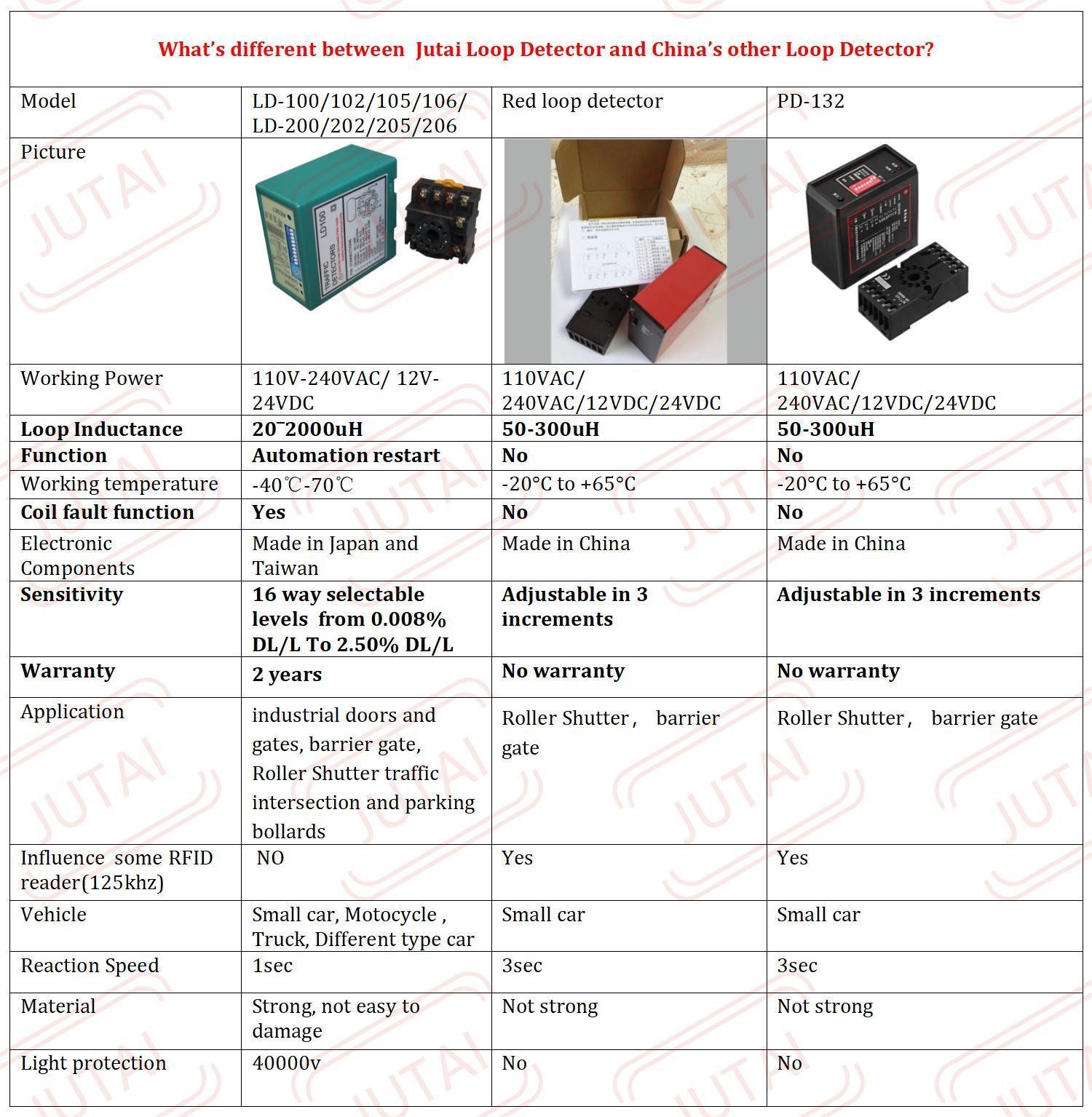

Compared to other brands

LD-100 Driveway Loop Detector Dual Relay Sensitivity 6 Way Selectable 7

Mass Production:

Our production line ensures efficient mass production, rigorous quality control, and thorough pre-shipment testing to deliver Loop detector products of the utmost perfection.

LD-100 Driveway Loop Detector Dual Relay Sensitivity 6 Way Selectable 8
LD-100 Driveway Loop Detector Dual Relay Sensitivity 6 Way Selectable 9

LD-100 single channel, boxed, 1 type 11pin connects 100-240VAC(EU standard)
LD-102 single channel, boxed, 1 type 11pin connects 12-24VADC(EU standard)
LD-105 single channel, boxed, 2 type 11pin connects 100-240VAC(USA standard)
LD-106 single channel, boxed, 2 type 11pin connects 12-24VADC(USA standard)

LD-100 Driveway Loop Detector Dual Relay Sensitivity 6 Way Selectable 10
LD-100 Driveway Loop Detector Dual Relay Sensitivity 6 Way Selectable 11
Certification:
LD-100 Driveway Loop Detector Dual Relay Sensitivity 6 Way Selectable 12
LD-100 Driveway Loop Detector Dual Relay Sensitivity 6 Way Selectable 13






FAQ:



Why Trust JUTAI?

  1. Industry Expertise: With over 15 years of experience in manufacturing vehicle loop detectors, JUTAI boasts comprehensive knowledge of the market. We've extensively evaluated brands from Europe and China, allowing us to understand the nuances and differences to provide you with the best solutions.

  2. Tailored Solutions: Our loop detector is meticulously designed to meet the specific requirements of your projects, ensuring optimal performance and reliability tailored to your needs.

What Sets JUTAI Apart?

  1. Win-Win Business Approach: At JUTAI, we prioritize fostering mutually beneficial business relationships, ensuring satisfaction for all parties involved.

  2. Warranty and Support: Benefit from a hassle-free experience with our 2-year warranty from the date of delivery. Our dedicated 24/7 after-sales service, coupled with online technical support, ensures prompt assistance whenever needed.

  3. Flexible Ordering: Whether you require small sample orders or large-scale OEM/ODM projects, we accommodate all your needs, providing flexibility in ordering to suit your requirements.

  4. Product Integrity: In the rare event of any product issues, we guarantee swift replacement with new products, prioritizing your satisfaction and ensuring product integrity.

  5. Market Protection: We prioritize the protection of our customers in the market, ensuring a secure and stable business environment for all parties involved.

MOQ (Minimum Order Quantity):

  1. Flexible Ordering: We welcome both sample orders and bulk orders, recognizing the importance of sample testing for new customers to evaluate our quality and service.

Delivery Timeframe:

  1. Timely Delivery: Expect your orders to be delivered within 2 to 10 working days, depending on the exact order quantity and stock availability, ensuring timely delivery to meet your project timelines.

Customization:

  1. Tailored Solutions: Our products can be customized to meet your exact requirements. Simply discuss your needs with our sales team, and we'll provide comprehensive OEM/ODM services to ensure your satisfaction and deliver the perfect solution for your project.
