Dual Channel Vehicle Loop Detector with 20-2000uh Sensing Range, Direction Recognition, and 40000V Lightning Protection
Product Details
| Power Requirements | 110-240VAC (48 To 63Hz) | Self-Turning Range | 20-2000uh |
|---|---|---|---|
| Sensitivity | 16-Way Selectable/ Highest 0.010%Dl/L/Lowest 2.56% | Operation Temp | -40 ~ +70℃ |
| Response Times | Turn-on 10-90ms/Turn-off 10-90ms | Specification | 13.6*8.6*5.2 |
| Highlight | double coil vehicle loop detector,double coil loop sensor detector,parking management loop sensor detector |
||
Product Description
Double Coil Vehicle Loop Detector For Vehicle Counting Detection Parking Management
Product Overview
Dual Channel Loop Detector for Parking Boom Barrier Gate 110-240VAC (48 to 63Hz) - Advanced vehicle detection system for parking management and access control applications.
Key Advantages
- Wide Sensing Range and High Sensitivity: Accurate detection of various vehicles with broad sensing range from 15 to 2000μH
- Automatic Reset Function: Enhances system stability by automatically resetting in case of malfunction
- Direction Recognition: Precise activation based on vehicle movement direction
- 40000V Lightning Protection: Robust protection ensures long-term durability
- Wide Operating Environment: Stable performance from -40°C to +70°C
Core Functionality
Vehicle Detection
Accurately detects vehicles using inductive sensing technology based on changes in inductance
Direction Recognition
Identifies specific vehicle movement directions for precise gate control
Automatic Reset
Eliminates manual intervention by automatically resetting during malfunctions
Relay Output
Provides relay output signals for gate control, traffic management, and vehicle counting
Applications
- Traffic Management Systems
- Gate Automation
- Parking Facilities Management
- Access Control Systems
- Traffic Light Control
- Vehicle Counting and Analysis

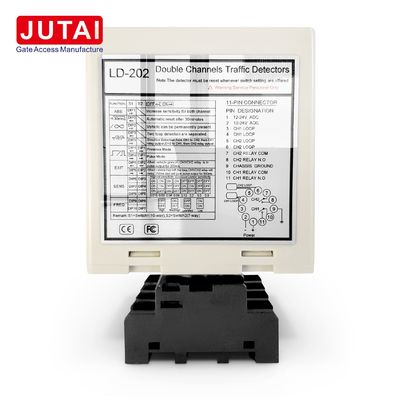

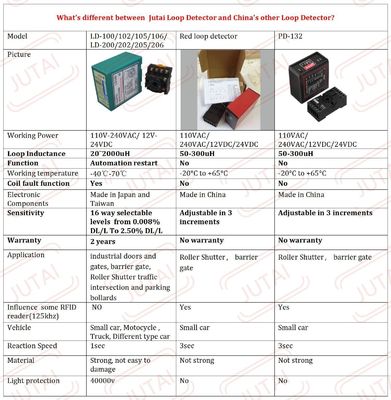

Product Images
Indicators and Switches
Power LED (RED): Illuminates when "Power ON"
CH1 Detecting LED:
- Continuous: Vehicle detection
- Slow Blinking: Loop short circuit or insufficient twists
- Fast Blinking: Loop open circuit or excessive twists
CH2 Detecting LED:
- Continuous: Vehicle detection
- Slow Blinking: Loop short circuit or insufficient twists
- Fast Blinking: Loop open circuit or excessive twists
Sensitivity Selection
Sensitivity and frequency adjustments using 7-way and 10-way dip switch settings:
- Dip switches 6, 7, 8 control CH1 sensitivity (0.8 to 0.015)
- Dip switches 3, 4, 5 control CH2 sensitivity (0.8 to 0.015)
Reset Button Note: The LD-200 must be reset every time a setting change is made to the Dip switches.
Installation Guidelines
- Use ferromagnetic wires for induction coil (up to 500 meters total length)
- Coil cutting size: Rectangle 1.0-2.0m length × 0.8-1.2m width
- Avoid right angles at corners
- Keep product plug and socket in vertical direction during installation
System Integration
JUTAI LD200/202 Double Channels Vehicle Loop Detector Series with direction recognition function for single-channel entry and exit applications.
Compatible Components
- JUTAI One door controller (Model: AC-11)
- JUTAI gate barrier (Model: BR-110)
- JUTAI long-range RFID reader (Model: PUHF-9)
- High-temperature resistance loop coils (Model: JTHT-11)
Operation Process
Entry Process
Simultaneous Loop Coil Activation: Both loop coils are pressed when car enters
UHF Reader Activation: LD-200/202 triggers UHF reader at entrance
Card ID Reading: Reader transmits ID to controller via Wiegand output
ID Verification and Gate Opening: Controller verifies ID and opens gate barrier
Vehicle Entry: Barrier arm automatically lowers after vehicle passes
Safety Assurance: LD-100/102 provides safety and anti-smashing functionality
Exit Process
UHF Reader Activation: LD-200/202 triggers inside UHF reader
ID Verification and Gate Opening: Controller verifies ID and opens exit barrier
Vehicle Exit: Barrier arm lowers automatically after vehicle passes
Safety Measures: LD-100/102 provides safety during exit process
Direction Recognition
Ensures double channels loop detector does not trigger signal again when car passes another UHF reader, maintaining accurate entry/exit records.
Independent Working Mode
The JUTAI LD-200/202 can function as two independent single-channel loop detectors for standard one-in and one-out parking lots:
- One loop coil triggers reader and reads card
- Other loop coil provides barrier anti-smashing function
- Cost-saving benefit by reducing hardware requirements
