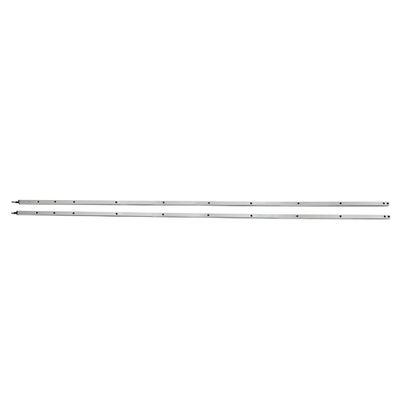

Safety Blanking Light Curtain Sensor For Inductrial Door Rapid Door Safety Control
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
WeChat: 0086 18588475571
skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Material | Aluminum Alloy | Feature | Corrosion Resistant |
|---|---|---|---|
| IP Rating | IP67 | Supply Voltage | DC12-24V |
| Sensing Distance | 8m | Operating Temperature | -20~60℃ |
| Operating Current | <50mA | Output | No/Nc, COM |
| Working Current | <20mA@DC12V | Specification | 150*2.1*1.5cm |
| Highlight | Safety Blanking Light Curtain Sensor,Inductrial Door Light Curtain Sensor,Rapid Door Safety Control Light Curtain Sensor |
||
Product Description
Safety Blanking Light Curtain Sensor for Inductrial Door Rapid Door Safety Control
Product Description: The Door Sensor Photocell Light Curtain by Shenzhen Jutai Comm Co., Ltd., delivers robust industrial door safety with its Strong Light Resistance Security Active Infrared Sensor. With an impressive 8m detection range and swift response time, this sensor ensures the utmost safety for industrial doors, even in challenging lighting environments. Providing reliable detection and monitoring, this active infrared sensor enhances security measures in industrial settings. Invest in workplace safety with this industrial-grade sensor, offering long-range safety sensing capabilities for optimal security.
Advantages and Features:
- Versatile Integration: This sensor is seamlessly integrated into all types of door control systems, ensuring compatibility and ease of use.
- Flexible Mounting Options: With direct integration into the door edge possible due to door blanking, installation is adaptable to various door configurations.
- Automatic Door Safety: The CL15-8L8 is a compact light curtain specifically designed for automatic doors and gates, providing reliable safety measures.
- Wide Application Range: Suitable for high-speed doors, sectional doors, rolling doors, vertical closing telescopic doors, and even freight elevators.
- Accurate Detection: Through-beam safety light curtains accurately detect people or objects passing through, preventing accidents and ensuring timely door opening signals.
- Output Options: The sensor offers NO/NC and COM output methods, enhancing flexibility in integration with door control systems.
- Efficient Operation: With a low working current of <20mA at DC12V and a working voltage range of DC12-24V, the sensor ensures energy-efficient operation.
Elevate workplace safety with the Door Sensor Photocell Light Curtain. Designed for industrial environments, this sensor offers robust security features, including an 8m detection range, flexible mounting options, and accurate detection capabilities. With its integration into all types of door control systems and wide application range, this sensor is a reliable choice for enhancing safety in industrial settings. Trust in the quality and effectiveness of the CL15-8L8 light curtain for optimal security and peace of mind.
|
Features
|
integrated in all types of door control systems
|
|
Mounting Type
|
Direct integration into the door edge due to door blanking
|
|
Description
|
automatic door safety light curtain sensor
|
|
Model Number
|
CL15-8L8 ( 8-beams, 150cm height )
|
|
Type
|
safety light curtain
|
|
Usage
|
High-speed doors
Sectional doors Rolling doors
Vertical closing telescopic doors
Freight elevators
|
|
Theory
|
Through-beam safety light curtains are used for fast doors and rolling shutter doors to prevent clipping (people or objects), and
can accurately detect passing people or objects to provide door opening signals to avoid potential safety hazards. |
|
Output
|
NO/NC, COM
|
|
Description
|
safety light curtain
|
|
Working current
|
<20mA@DC12V
|
|
Working voltage
|
DC12-24V
|
|
Detection range
|
maximum 8m
|
|
Protective height
|
Maximum1225mm(concealing mode), 1305mm(normal mode)
|
|
Output method
|
NO/NC, COM
|
|
Beams
|
8-beams
|
|
LED status
|
Receiver: red light(object blocked)
blue light(unblocked)
blue light flash( Emitter and receiver not aligned)
Transmitter: blue light constant(normal)
red light flash(voltage below 9v, above 28v)
|
|
Operating Temperature
|
-20 ~+70℃
|
|
Protection Level
|
IP67
|
|
Shell Material
|
Aluminum alloy
|
Enhance industrial door safety with our 1500mm Infrared Light Curtain sensor. Ideal for fast-speed doors with an 8m detecting range.
Enhance industrial door safety with the 1500mm Infrared Light Curtain sensor from Shenzhen Jutai Comm Co., Ltd. This sensor can detect up to 8m with fast speed, ensuring a secure environment in industrial settings. Invest in safety today!
