Blanking Anti Smashing Safety Light Curtain For Industrial Gate Automatic Door
Product Details
| Material | Aluminum Alloy | Feature | Corrosion Resistant |
|---|---|---|---|
| IP Rating | IP67 | Supply Voltage | DC12-24V |
| Sensing Distance | 8m | Operating Temperature | -20~60℃ |
| Operating Current | <50mA | Output | No/Nc, COM |
| Working Current | <20mA@DC12V | Specification | 150*2.1*1.5cm |
| Highlight | anti smashing safety light curtain,anti smashing safety light curtains,ip67 safety light curtain |
||
Product Description
Blanking Anti Smashing Safety Light Curtain For Industrial Gate Automatic Door
Product Overview
The Door Sensor Photocell Light Curtain by Shenzhen Jutai Comm Co., Ltd. represents the epitome of industrial door safety, boasting the Strong Light Resistance Security Active Infrared Sensor. With an impressive 8m detection range and rapid response time, this sensor ensures top-tier safety for industrial doors, even in challenging lighting conditions.
Elevate workplace safety with the Door Sensor Photocell Light Curtain. Excelling in industrial environments, this sensor delivers robust security features, including an extensive 8m detection range, flexible mounting options, accurate detection capabilities, advanced Blanking functionality, and a resilient IP67 waterproof rating.
Key Features & Advantages
| Advantages and Features | Description |
|---|---|
| Versatile Integration | Seamlessly integrates into all types of door control systems, ensuring compatibility and user-friendly operation. |
| Mounting Options | Simplifies installation with adaptable mounting options, including direct integration into the door edge. |
| Automatic Door Safety | Tailored specifically for automatic doors and gates, providing reliable safety measures. |
| Wide Application Range | Adaptable for use in various door types, including high-speed doors, sectional doors, rolling doors, etc. |
| Accurate Detection | Employs through-beam safety light curtains for precise detection of people or objects passing through. |
| Output Options | Offers versatile output methods such as NO/NC and COM, enhancing flexibility in integration. |
| Efficient Operation | Demonstrates energy-efficient operation with low working current and compatible voltage range. |
| Blanking Functionality | Features advanced Blanking functionality to prevent triggering of relay output during normal door closing. |
| IP67 Waterproof Rating | Engineered to withstand harsh environments with an IP67 waterproof rating for reliable operation. |
Technical Specifications
Model Number
CL15-8L8 (8-beams, 150cm height)
Type
Safety light curtain
Working Voltage
DC12-24V
Working Current
<20mA@DC12V
Detection Range
Maximum 8m
Protective Height
Maximum 1225mm (concealing mode), 1305mm (normal mode)
Beams
8-beams
Operating Temperature
-20 ~ +70℃
Protection Level
IP67
Shell Material
Aluminum alloy
Applications
- High-speed doors
- Sectional doors
- Rolling doors
- Vertical closing telescopic doors
- Freight elevators
Operating Principle
Through-beam safety light curtains are used for fast doors and rolling shutter doors to prevent clipping (people or objects), and can accurately detect passing people or objects to provide door opening signals to avoid potential safety hazards.

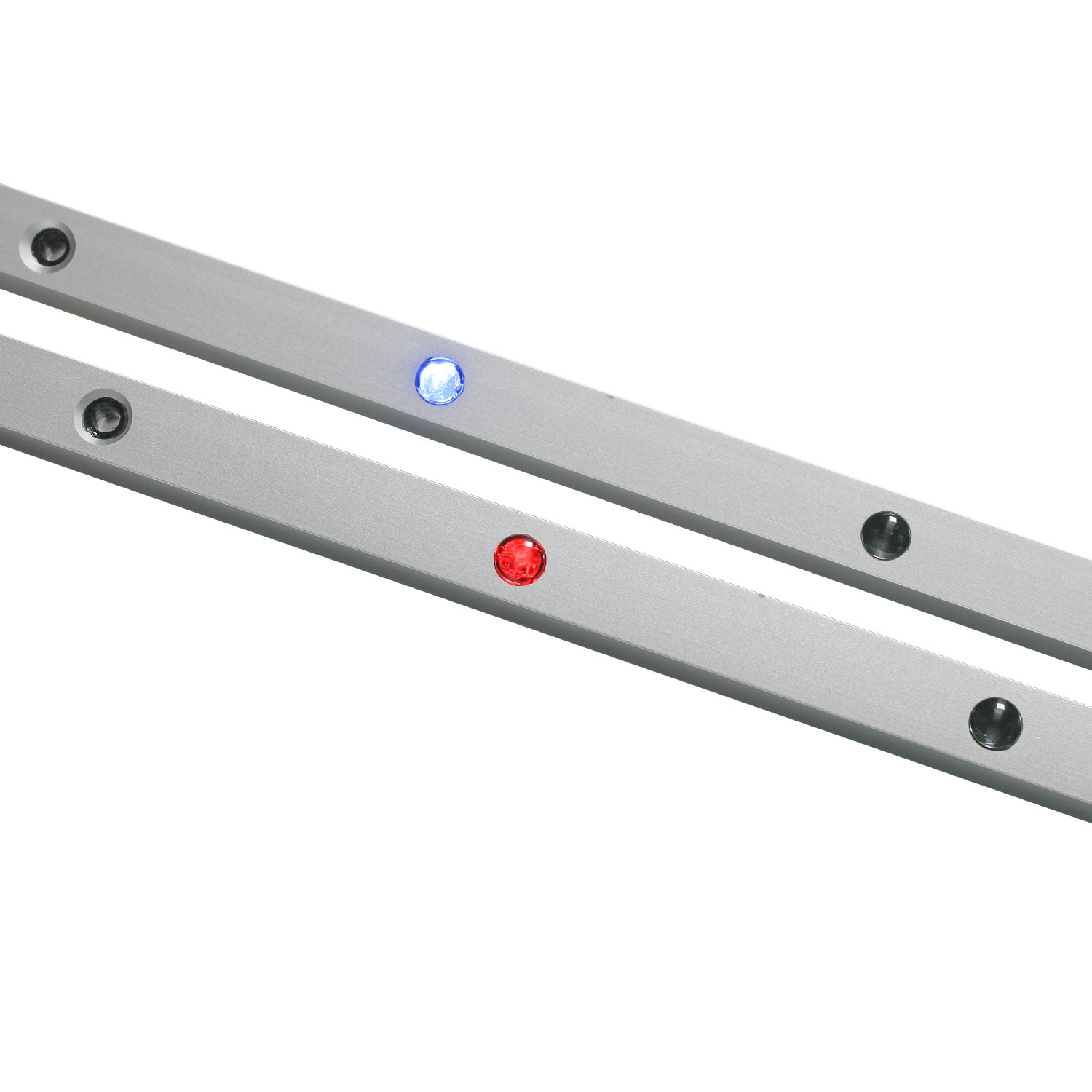

LED Status Indicators
Receiver
Red light (object blocked), blue light (unblocked), blue light flash (Emitter and receiver not aligned)
Transmitter
Blue light constant (normal), red light flash (voltage below 9v, above 28v)
Product Images
Safety Enhancement
Enhance industrial door safety with our 1500mm Infrared Light Curtain sensor. Ideal for fast-speed doors with an 8m detecting range, ensuring a secure environment in industrial settings. Invest in safety today with the quality and efficacy of the CL15-8L8 light curtain for unparalleled security and peace of mind.
