Industrial Gate 150cm 8 Group Beams Photocell Anti Pinch Safety Light Curtain 8m Range
Product Details
| Material | Aluminum Alloy | Feature | Corrosion Resistant |
|---|---|---|---|
| IP Rating | IP67 | Supply Voltage | DC12-24V |
| Sensing Distance | 8m | Operating Temperature | -20~60℃ |
| Operating Current | <50mA | Output | No/Nc, COM |
| Working Current | <20mA@DC12V | Specification | 150*2.1*1.5cm |
| Highlight | safety light curtain 8m range,8m range safety light curtains,150cm 8 group beams safety light curtain |
||
Product Description

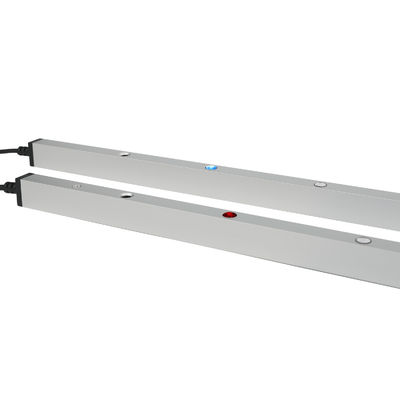

Industrial Gate 150cm 8 Group Beams Photocell Anti Pinch Safety Light Curtain 8m Range
Product Overview
The Door Sensor Photocell Light Curtain by Shenzhen Jutai Comm Co., Ltd., is meticulously crafted to ensure robust industrial door safety with its Strong Light Resistance Security Active Infrared Sensor. Boasting an impressive 8m detection range and swift response time, this sensor guarantees maximum safety for industrial doors, even in challenging lighting conditions. With its reliable detection and monitoring capabilities, it significantly enhances security measures in various industrial settings.
Key Features & Advantages
- Versatile Integration: Seamlessly integrates into all types of door control systems
- Flexible Mounting: Direct integration into door edge with door blanking
- Automatic Door Safety: Specifically designed for automatic doors and gates
- Wide Application Range: Suitable for high-speed doors, sectional doors, rolling doors, and freight elevators
- Accurate Detection: Through-beam safety light curtains detect people or objects passing through
- Multiple Output Options: NO/NC and COM output methods
- Energy Efficient: Low working current of <20mA at DC12V
- Blanking Functionality: Prevents false triggers during normal door operation
- IP67 Waterproof Rating: Built to withstand harsh environments
Technical Specifications
| Model Number | CL15-8L8 (8-beams, 150cm height) |
| Type | Safety Light Curtain |
| Working Voltage | DC12-24V |
| Working Current | <20mA @ DC12V |
| Detection Range | Maximum 8m |
| Protective Height | Maximum 1225mm (concealing mode), 1305mm (normal mode) |
| Output Method | NO/NC, COM |
| Beams | 8-beams |
| Operating Temperature | -20°C to +70°C |
| Protection Level | IP67 |
| Shell Material | Aluminum Alloy |
LED Status Indicators
| Component | Status | Indicator |
|---|---|---|
| Receiver | Object Blocked | Red Light |
| Unblocked | Blue Light | |
| Emitter/Receiver Not Aligned | Blue Light Flash | |
| Transmitter | Normal Operation | Blue Light Constant |
| Voltage Issue (below 9V, above 28V) | Red Light Flash |
Applications
Ideal for high-speed doors, sectional doors, rolling doors, vertical closing telescopic doors, and freight elevators. Through-beam safety light curtains prevent clipping of people or objects and provide accurate detection for door opening signals to avoid potential safety hazards.
Enhance industrial door safety with our 1500mm Infrared Light Curtain sensor. Ideal for fast-speed doors with an 8m detecting range, ensuring a secure environment in industrial settings. Invest in safety today!
