OEM ODM Light Curtain Sensor for Industrial Door Rapid Door Safety Control
Product Details
| Material | Aluminum Alloy | Feature | Corrosion Resistant |
|---|---|---|---|
| IP Rating | IP67 | Supply Voltage | DC12-24V |
| Sensing Distance | 8m | Operating Temperature | -20~60℃ |
| Operating Current | <50mA | Output | No/Nc, COM |
| Working Current | <20mA@DC12V | Specification | 150*2.1*1.5cm |
| Highlight | oem odm light curtain sensor,oem odm infrared light curtain,rapid door safety control light curtain sensor |
||
Product Description
OEM ODM Light Curtain Sensor for Industrial Door Rapid Door Safety Control
Aluminium Safety Light Curtain Sensor for Industrial Door Rapid Door Safety Control
The Safety Blanking Light Curtain from Shenzhen Jutai Comm Co., Ltd., is meticulously crafted to ensure robust industrial door safety, leveraging its Strong Light Resistance Security Active Infrared Sensor. Boasting an impressive 8m detection range and rapid response time, this sensor guarantees maximum safety for industrial doors, even in challenging lighting environments. With its dependable detection and monitoring capabilities, it substantially enhances security measures in industrial settings.
Key Features & Advantages
- Versatile Integration: Seamlessly integrates into all types of door control systems
- Flexible Mounting: Direct integration into door edge with door blanking capability
- Automatic Door Safety: Specifically designed for automatic doors and gates
- Wide Application Range: Suitable for high-speed doors, sectional doors, rolling doors, vertical closing telescopic doors, and freight elevators
- Accurate Detection: Through-beam safety light curtains precisely detect people or objects
- Multiple Output Options: NO/NC and COM output methods for flexible integration
- Energy Efficient: Low working current of <20mA at DC12V
- Smart Blanking Function: Prevents false triggers during normal door operation
- Durable Construction: IP67 waterproof rating and aluminum alloy housing
Technical Specifications
| Feature | Specification |
|---|---|
| Model Number | CL15-8L8 (8-beams, 150cm height) |
| Type | Safety Light Curtain |
| Usage | High-speed doors, Sectional doors, Rolling doors, Vertical closing telescopic doors, Freight elevators |
| Operating Principle | Through-beam safety light curtain for fast doors and rolling shutter doors to prevent clipping accidents |
| Output | NO/NC, COM |
| Working Current | <20mA @ DC12V |
| Working Voltage | DC12-24V |
| Detection Range | Maximum 8m |
| Protective Height | Maximum 1225mm (concealing mode), 1305mm (normal mode) |
| Beams | 8-beams |
| LED Status | Receiver: red light (object blocked), blue light (unblocked), blue light flash (misaligned) Transmitter: blue light constant (normal), red light flash (voltage issue) |
| Operating Temperature | -20°C to +70°C |
| Protection Level | IP67 |
| Shell Material | Aluminum Alloy |
Enhance industrial door safety with our 1500mm Infrared Light Curtain sensor. Ideal for fast-speed doors with an 8m detecting range, ensuring a secure environment in industrial settings. Invest in safety today!

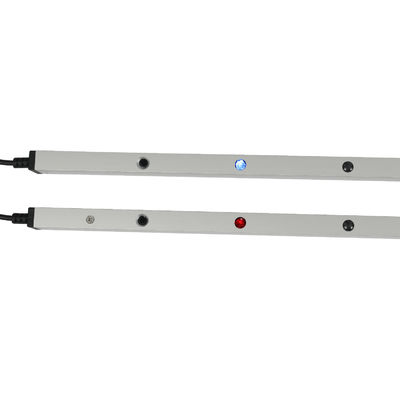

Product Images
