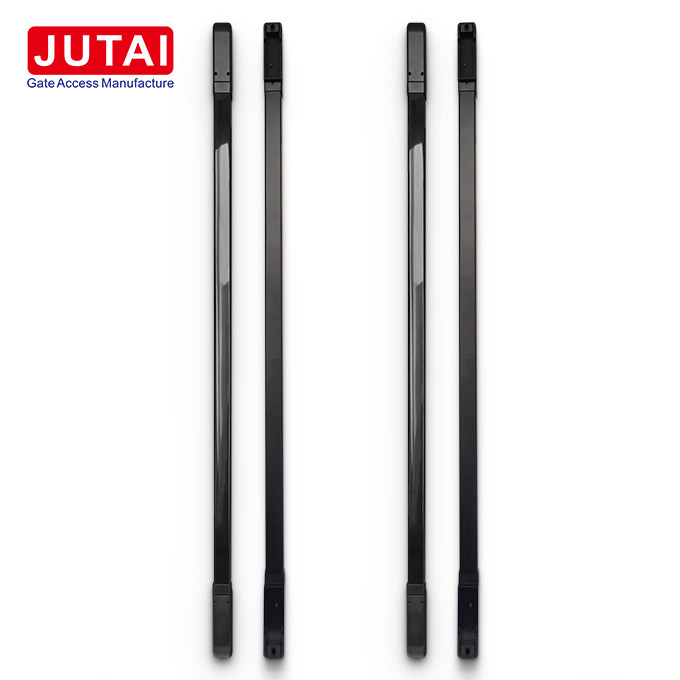

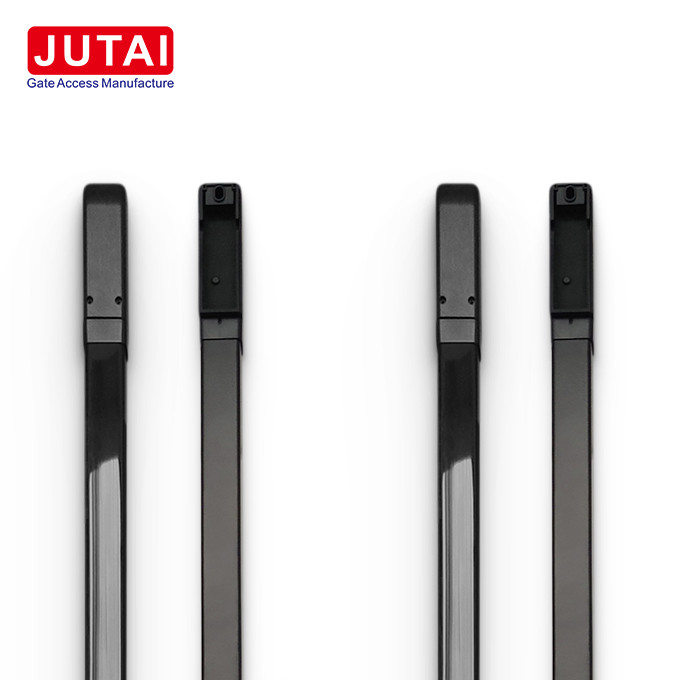

Industrial Gate Safety / Home Security Light Curtain Sensor IP65
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
WeChat: 0086 18588475571
skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| IP Rating | IP65 | HS Code | 8531100000 |
|---|---|---|---|
| Specification | 112*13*8.5 | Function Type | Infrared Range And Communication System |
| Detection Type | Photon Detector | Output Signal Type | Digital Type |
| Highlight | Home Security Light Curtain Sensor,Light Curtain Sensor IP65,Industrial Gate Safety Light Curtain Sensor |
||
Product Description
Industrial Gate Safety Light Curtain Sensor with No/Nc Output and 4 Beams 1m Long
Working principle:
Infrared beam sensors operate based on the principles of infrared radiation emission, reflection, and reception. The fundamental working principles are outlined as follows:
-
Infrared Emission: The sensor incorporates an infrared emitter that projects an infrared beam.
-
Beam Propagation: The emitted infrared beam travels along a defined path, creating a virtual beam.
-
Target Interaction: If there is a target object along the beam path, it interacts with the infrared light. The target's reflection, absorption, or scattering of the infrared light causes variations.
-
Reflection or Scattering: The sensor includes an infrared receiver designed to capture the reflected or scattered infrared light returning from the target.
-
Signal Processing: The received signal undergoes processing, analyzing features such as signal strength, frequency, or other characteristics to determine the presence, distance, or other relevant information about the target.
-
Output Results: The analyzed results are typically output as electrical or digital signals, triggering corresponding actions, alarms, or data recording.
The ultimate solution for industrial door protection, barrier gate safety, and home security. Our standard model stands at 1 meter tall and is equipped with 4 infrared beams, delivering unmatched functionality and dependability.
Key Features:
Durability:
- Designed to endure intense light interference and withstand outdoor conditions.
- IP65 waterproof rating ensures resilience against harsh environments.
- Detection range exceeding 15 meters guarantees extensive coverage.
Functionality:
Industrial Door Protection:
- Ensures safety by reopening the door automatically if an object is detected while the door is closing.
Barrier Gate Safety:
- Ideal for barrier gates, reopening the gate instantly upon sensing a person or vehicle during gate closure.
Home Security:
- Enhances home security with a relay output that activates upon detecting unauthorized entry, deterring intruders effectively.
Customization Options:

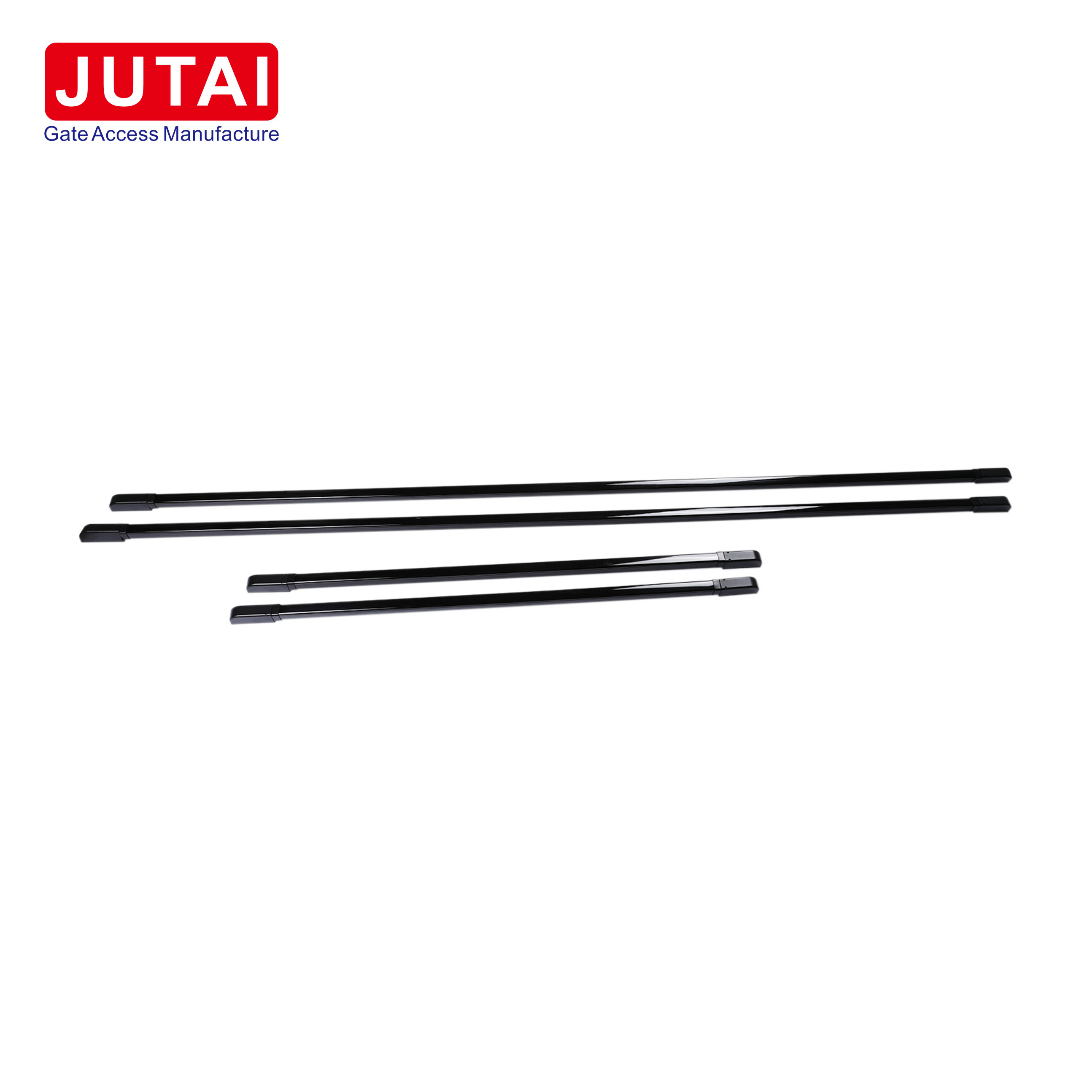

Our Safety Light Curtain Sensor can be tailored to various lengths and beam configurations to meet your specific requirements. Standard models include:
- PB3-4L15: 30cm height with 4 built-in infrared beams.
- PB10-4L15: 100cm height with 4 built-in infrared beams.
- PB20-8L15: 200cm height with 8 built-in infrared beams.
Experience peace of mind and improved safety with our Safety Light Curtain Sensor. Rely on our dependable, customizable solutions to protect your premises effectively.
Specification
| Model | PB20-16L15 |
| Technology | Infrared Optical Technique |
| Detection Mode | Presence detect |
| Number of Beams | 4 (Can be customized) |
| Length | 1m (Can be customized) |
| Detection Distance | 15m |
| Operating voltage | 12-24V |
| Transmitter Operating Current | <50mA |
| Receiver Operation Current | <50mA |
| Response Time | 50/100/150/200ms adjustable |
| Trigger Time | Block a beam of light,trigger in 2 seconds,block adjacent 2 beams or more,trigger immediately |
| Trigger Method | Single beam trigger or Multi-beam trigger(can selected) |
| Working Temperature | 20~60℃ |
| Relative Humidity | 90%RH In Max;(No condensation) |
| Alarm Output | Wired Output,relayOutput30VDC@2A,125VAC@1A |
| Output Way(Wired Model) | Wired transmission,(NO/NC) |
| Rotation Angle | 180 degrees Horizontal |
| IP level | IP65 |
| Material | Aluminum Alloy And PC Plastic |
Wiring Definition
Size
Installation
How to install JUTAI Infrared Curtain Photocell? We have also listed the installation drawings step by step for customers' reference, making the installation simple, easy and fast;
Operation Steps
-
Remove Covers and Connect Wires:
- Remove the top and bottom covers.
- Connect the wires and lead the thread end out through the threaded port.
-
Position and Mark Holes:
- Confirm the installation position.
- Align the transmitter and receiver in parallel.
- Mark the positions for the holes.
-
Drill and Fix:
- Use a percussion drill to create holes at the marked locations on the wall.
- Insert wall plugs into the holes and secure them with screws.
-
Mount Transmitter and Receiver:
- Use M3*25 screws to mount the transmitter and receiver.
- Connect the power supply and test the alignment.
- If needed, rotate the aluminum tube to adjust the angle.
- Once aligned, lock the rotating screw.
-
Replace Covers and Final Testing:
- Secure the top and bottom covers using M2*8 screws.
- Perform a final test to ensure proper operation.
FAQ
During the installation process, we have compiled answers to some common frequently asked questions. These answers address potential issues and commonly asked questions to save you time and ensure a smooth installation.
Package
Before introducing the functional advantages of our products, we also present the detailed product packaging details of Jutai infrared curtain photocell to you.
Advantages
JUTAI Curtain Photocell Advanced Function we list as followings
Using unique infrared technology, it can be used under direct sunlight; it has a stable detection distance of 20 meters.
