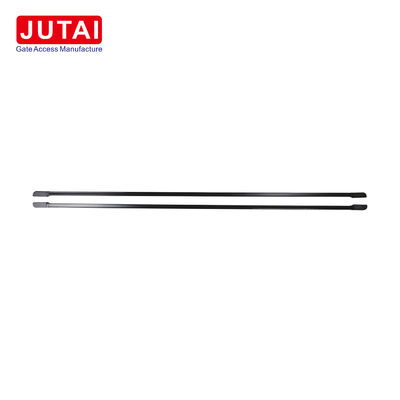

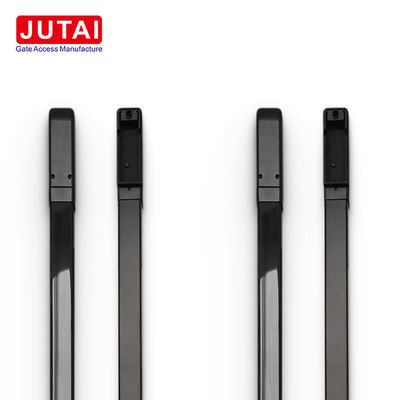

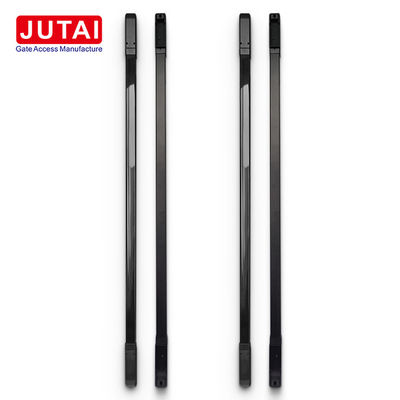

Industrial Gate Safety Accessories Infrared Light Curtain Sensor With No/Nc Output
Product Details
| IP Rating | IP65 | HS Code | 8531100000 |
|---|---|---|---|
| Specification | 112*13*8.5 | Function Type | Infrared Range And Communication System |
| Detection Type | Photon Detector | Output Signal Type | Digital Type |
| Highlight | light curtain sensor with no/nc output,nc output curtain light sensor,nc output light curtain sensor |
||
Product Description
Industrial Gate Safety Accessories Infrared Light Curtain Sensor With No/NC Output
Industrial Gate Safety Accessories Infrared Light Curtain Sensor with No/NC Output
Working Principle
Infrared beam sensors operate based on the principles of infrared radiation emission, reflection, and reception. The fundamental working principles are outlined as follows:
- Infrared Emission: The sensor incorporates an infrared emitter that projects an infrared beam.
- Beam Propagation: The emitted infrared beam travels along a defined path, creating a virtual detection line.
- Target Interaction: If a target object intersects the beam, it interacts with the infrared light through reflection, absorption, or scattering.
- Reflection or Scattering: The sensor includes an infrared receiver designed to capture the reflected or scattered infrared light returning from the target.
- Signal Processing: The received signal is processed to analyze features such as signal strength and frequency, determining the presence, distance, or other relevant information about the target.
- Output Results: The analyzed results are typically output as electrical or digital signals, triggering corresponding actions, alarms, or data recording.
Product Overview
The Safety Light Curtain is the ultimate solution for industrial door protection, barrier gate safety, and home security. Our standard model stands at 1 meter tall and is equipped with 4 infrared beams, delivering unmatched functionality and reliability.
Key Features
Durability:
- Engineered to withstand intense light interference and harsh outdoor conditions.
- Boasts an IP65 waterproof rating for excellent resilience.
- Offers a detection range of over 15 meters for extensive coverage.
Functionality
- Industrial Door Protection: Automatically reopens the door if an object is detected while the door is closing, ensuring safety.
- Barrier Gate Safety: Perfect for barrier gates, instantly reopening the gate upon detecting a person or vehicle during closure.
- Home Security: Enhances security by using a relay output that triggers upon detecting unauthorized entry, effectively deterring intruders.
Customization Options
Our Safety Light Curtain Sensor can be customized in various lengths and beam configurations to meet specific requirements. Standard models include:
- PB3-4L15: 30cm height with 4 built-in infrared beams
- PB10-4L15: 100cm height with 4 built-in infrared beams
- PB20-8L15: 200cm height with 8 built-in infrared beams
Conclusion
Experience peace of mind and enhanced safety with our Safety Light Curtain Sensor. Trust our reliable and customizable solutions to effectively safeguard your premises.
Specification
| Model | PB20-16L15 |
|---|---|
| Technology | Infrared Optical Technique |
| Detection Mode | Presence detect |
| Number of Beams | 4 (Can be customized) |
| Length | 1m (Can be customized) |
| Detection Distance | 15m |
| Operating voltage | 12-24V |
| Transmitter Operating Current | <50mA |
| Receiver Operation Current | <50mA |
| Response Time | 50/100/150/200ms adjustable |
| Trigger Time | Block a beam of light, trigger in 2 seconds, block adjacent 2 beams or more, trigger immediately |
| Trigger Method | Single beam trigger or Multi-beam trigger (can selected) |
| Working Temperature | 20~60℃ |
| Relative Humidity | 90%RH In Max; (No condensation) |
| Alarm Output | Wired Output, relay Output 30VDC@2A, 125VAC@1A |
| Output Way (Wired Model) | Wired transmission, (NO/NC) |
| Rotation Angle | 180 degrees Horizontal |
| IP level | IP65 |
| Material | Aluminum Alloy And PC Plastic |
Wiring Definition

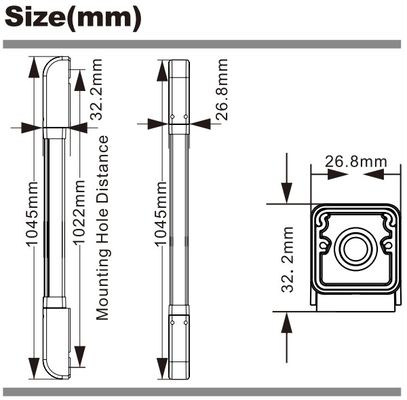

Size
Installation
How to install JUTAI Infrared Curtain Photocell? We have also listed the installation drawings step by step for customers' reference, making the installation simple, easy and fast.
Operation Steps
- Remove Covers and Connect Wires: Remove the top and bottom covers of the sensor. Connect the wires and lead the thread end out through the threaded port.
- Position and Mark Holes: Confirm the installation position of the sensor. Align the transmitter and receiver in parallel. Mark the positions for the holes on the wall.
- Drill and Fix: Use a percussion drill to create holes at the marked locations on the wall. Insert wall plugs into the holes and secure them with screws.
- Mount Transmitter and Receiver: Use M3*25 screws to mount the transmitter and receiver on the wall. Connect the power supply and test the alignment of the sensor. If needed, adjust the angle by rotating the aluminum tube. Once aligned, lock the rotating screw securely.
- Replace Covers and Final Testing: Secure the top and bottom covers of the sensor using M2*8 screws. Perform a final test to ensure proper operation of the sensor.
FAQ
During the installation process, we have compiled answers to some common frequently asked questions. These answers address potential issues and commonly asked questions to save you time and ensure a smooth installation.
Package
Before introducing the functional advantages of our products, we also present the detailed product packaging details of Jutai infrared curtain photocell to you.
Advantages
JUTAI Curtain Photocell Advanced Function we list as followings:
Using unique infrared technology, it can be used under direct sunlight; it has a stable detection distance of 20 meters.
Company Profile
JUTAI, a leading Motion Sensor Photoelectric Sensor manufacturer, stands out for its integration of research, development, production, sales, and distribution. Our foundation lies in innovation and unwavering commitment to quality, striving to deliver exceptional solutions to our valued customers. As we forge ahead in building our brand, we aspire to be your trusted production partner on your journey to establish and promote your own brand.
With over a decade of expertise in research and production, we boast a rich reservoir of knowledge in wireless communication technology, automatic door sensors, and wholesale distribution of barrier gates. Our core product portfolio encompasses a diverse range of offerings, including:
- Automatic door sensors
- Microwave radar sensors for automatic doors
- Infrared sensor series
- Loop detectors
- Short, medium, and long-range wireless RFID card readers
- Barrier gates
- Parking barrier gates
All JUTAI hardware products are meticulously designed to seamlessly integrate with access control systems, offering comprehensive solutions for access control, parking management, and parking guidance systems.
Recommended Products
