Aluminum Alloy And PC Plastic Sensor Light Curtain For Industrial Door

8 Beams 2m Safety Light Curtain Sensor with No/Nc Output for Industrial Door

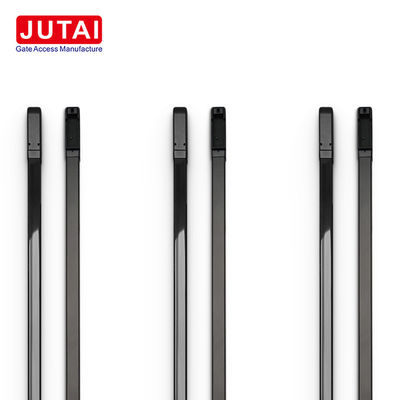

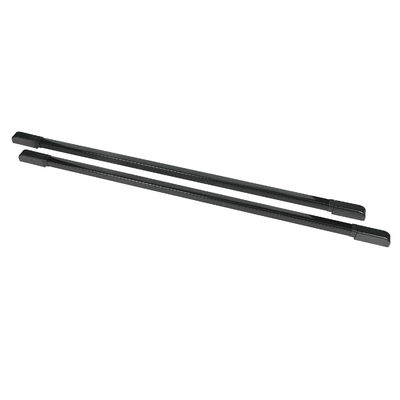

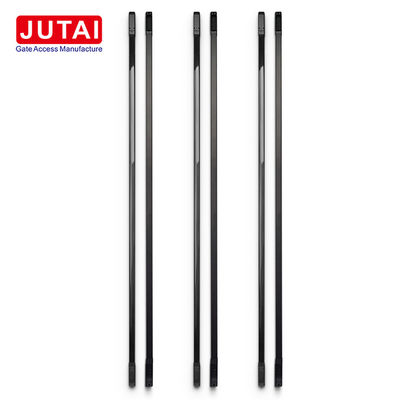

JUTAI Safety Light Curtain Sensor

Overview: Introducing the JUTAI Safety Light Curtain Sensor, an advanced safety solution engineered for industrial door protection, barrier gate safety, and residential security applications. This state-of-the-art sensor stands 2 meters tall and features 8 infrared beams, ensuring unparalleled functionality and reliability. With a robust IP65 waterproof rating and a detection range exceeding 15 meters, the JUTAI Safety Light Curtain Sensor is designed to withstand challenging environments and intense light interference.

Main Features:

• Stable Detection Distance: Capable of detecting objects up to 15 meters away with high accuracy.
• 180° Rotation Angle: Provides flexibility in installation and alignment.
• IP65 Protection Grade: Ensures durability and reliability in harsh outdoor conditions.
• Tamper-Proof Alarm Function: Enhances security by alerting any attempts at tampering.
• Standard Relay Signal Output Mode: Facilitates easy integration with various control systems.
• Customizable: Available in various lengths and beam configurations to meet specific requirements.

Technical Working Principle:

1. Infrared Emission:

   • The sensor utilizes a precision-engineered infrared emitter to project a focused infrared beam along a designated path.

2. Beam Propagation:

   • The emitted beam travels in a straight line, forming an invisible detection barrier that is highly sensitive to interruptions.

3. Target Interaction:

   • When an object intersects the beam, it causes changes in the infrared light due to reflection, absorption, or scattering.

4. Reflection or Scattering:

   • An advanced infrared receiver captures the reflected or scattered light, converting it into an electrical signal.

5. Signal Processing:

   • The captured signal undergoes sophisticated processing to analyze parameters such as signal strength, frequency modulation, and time-of-flight, enabling precise determination of the target's presence, distance, and other pertinent details.

6. Output Results:

   • The processed data is outputted as electrical or digital signals, which can trigger predefined actions such as alarms, system shutdowns, or data recording for further analysis.

Functionality:

• Industrial Door Protection:

  • The sensor detects any obstruction during the door's closing motion, automatically triggering the door to reopen, thereby preventing accidents and enhancing safety protocols.

• Barrier Gate Safety:

  • Optimized for barrier gates, the sensor swiftly detects any person or vehicle in the gate's path, ensuring immediate reopening to prevent collisions and enhance operational safety.

• Home Security:

  • Enhances home security by activating a relay output upon detecting unauthorized entry, serving as an effective deterrent against intruders and ensuring peace of mind.

Customization Options: The JUTAI Safety Light Curtain Sensor can be tailored to fit various application needs, with customizable lengths and beam configurations. Standard models include:

• PB3-4L15: Compact model with a height of 30cm and 4 infrared beams.
• PB10-4L15: Versatile model with a height of 100cm and 4 infrared beams.
• PB20-8L15: Extensive coverage model with a height of 200cm and 8 infrared beams.

Enhance your safety infrastructure with the JUTAI Safety Light Curtain Sensor. This cutting-edge sensor is designed to deliver comprehensive protection across industrial, commercial, and residential settings. Leveraging advanced infrared technology and customizable configurations, JUTAI provides reliable and effective solutions to safeguard your premises. Trust in JUTAI’s expertise and innovative approach to elevate your safety standards.
