Industrial Gate Safety Light Curtain Sensor With NO/NC Output 8 Beams 2m Long
Product Details
| Material | Aluminum Alloy And PC Plastic | Operating Temperature | -20~60℃ |
|---|---|---|---|
| IP Rating | IP65 | Theory | Infrared Light |
| Specification | 209*13*9cm | Supply Voltage | DC12-24V |
| Sensing Distance | 15m | Output Way | No/Nc |
| Highlight | safety light curtain sensor with no/nc output,nc output safety curtain sensor,nc output safety light curtain sensor |
||
Product Description
Industrial Gate Safety Light Curtain Sensor With NO/NC Output 8 Beams 2m Long
JUTAI Safety Light Curtain Sensor
JUTAI introduces an advanced Safety Light Curtain Sensor, designed to deliver superior protection for industrial doors, barrier gates, and home security systems. This state-of-the-art model, standing at 2 meters and equipped with 8 high-precision infrared beams, is engineered for maximum functionality and reliability. Built to endure harsh environments, it features an IP65 waterproof rating and a detection range extending beyond 15 meters.
Main Features
- Stable Detection Distance: Capable of detecting objects up to 15 meters away
- 180° Rotation Angle: Provides flexible installation options
- IP65 Protection Grade: Withstands severe weather conditions and intense light interference
- Tamper-Proof Alarm Function: Enhances security against tampering attempts
- Standard Relay Signal Output Mode: Ensures compatibility with various control systems
- Customizable: Length and number of beams can be tailored to specific needs
Working Principle
The JUTAI Safety Light Curtain Sensor operates based on infrared radiation principles:
- Infrared Emission: Utilizes sophisticated infrared emitter for precise beam projection
- Beam Propagation: Creates invisible detection barrier along predetermined path
- Target Interaction: Objects disrupt infrared light through reflection, absorption, or scattering
- Reflection or Scattering: Sensor captures altered light patterns
- Signal Processing: Advanced algorithms analyze received light parameters
- Output Results: Converts data into electrical/digital signals for predefined actions
Functionality
- Industrial Door Protection: Automatically reopens doors when objects are detected during closure
- Barrier Gate Safety: Provides immediate response by reopening gates upon detection
- Home Security: Activates relay output for unauthorized entry detection
Customization Options
Highly adaptable with customizable lengths and beam configurations. Standard models include:
- PB3-4L15: Compact model with 30cm height and 4 infrared beams
- PB10-4L15: Versatile model with 100cm height and 4 infrared beams
- PB20-8L15: Comprehensive coverage with 200cm height and 8 infrared beams
Technical Specifications
| Number of Beams | 4/8 (customizable options available) |
| Height | 30cm, 100cm, 200cm (customizable heights available) |
| Detection Distance | 15 meters |
| Working Voltage | DC 12-24V |
| Transmitter Operating Current | <50mA |
| Receiver Operation Current | <50mA |
| Response Time | 50/100/150/200ms (adjustable) |
| Trigger Time | Single beam: 2 seconds; Multiple beams: immediate |
| Induction Method | Single beam or Multi-beam trigger (selectable) |
| Working Temperature | -20°C to 60°C |
| Ambient Temperature | Up to 90% RH Max (No condensation) |
| Alarm Output | Relay Output 30 VDC @ 2A, 125VAC @ 1A |
| Output Way (Wired Model) | Wired transmission (NO/NC) |
| Rotation Angle | 180 degrees horizontal |
| IP Level | IP65 |
| Material | Aluminum Alloy and PC Plastic |
| OEM | Yes |

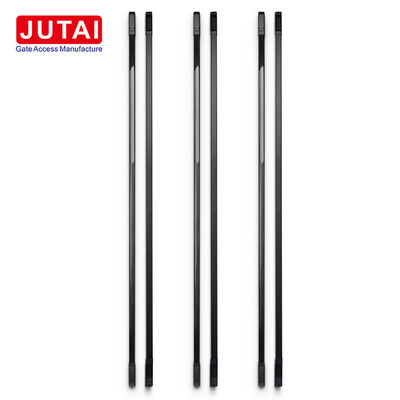

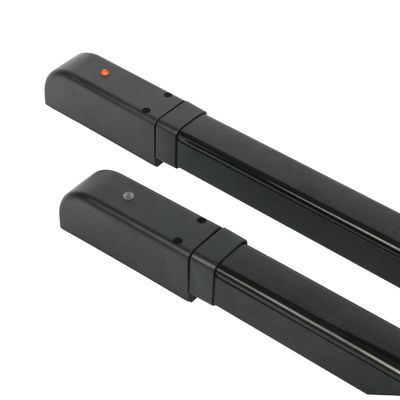

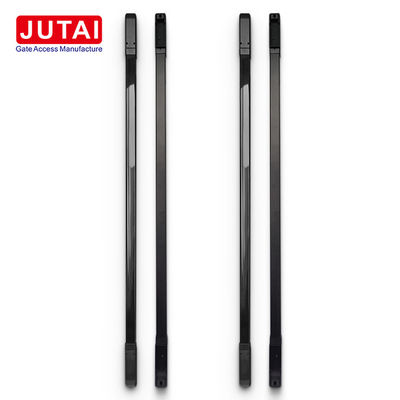

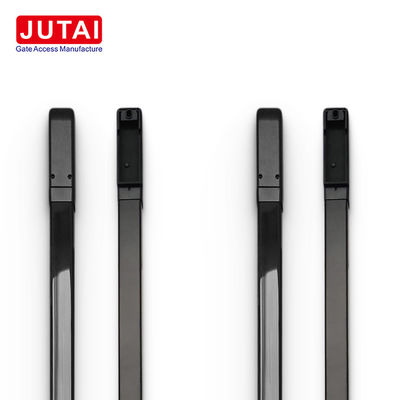

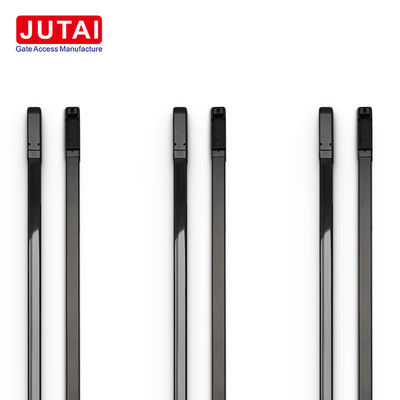

Product Images
Experience unparalleled safety and peace of mind with the JUTAI Safety Light Curtain Sensor. This innovative, dependable, and customizable solution provides comprehensive protection across industrial, commercial, and residential settings.
