Safety Light Sensor Anti Pinch Photocell 2m 8 Beams For Industrial PVC High Speed Door
Product Details
| Material | Aluminum Alloy And PC Plastic | Operating Temperature | -20~60℃ |
|---|---|---|---|
| IP Rating | IP65 | Theory | Infrared Light |
| Specification | 209*13*9cm | Supply Voltage | DC12-24V |
| Sensing Distance | 15m | Output Way | No/Nc |
| Highlight | safety light sensor anti pinch,anti pinch safety light barrier sensor,2m 8 beams safety light sensor |
||
Product Description
Safety Light Sensor Anti Pinch Photocell 2m 8 Beams For Industrial PVC High Speed Door
Product Overview
JUTAI Safety Light Curtain Sensor is a state-of-the-art solution engineered for industrial door protection, barrier gate safety, and home security applications. This advanced model stands at 2 meters tall and features 8 high-precision infrared beams, ensuring unmatched functionality and reliability. Designed to operate in the harshest environments, it boasts an IP65 waterproof rating and an extensive detection range exceeding 15 meters.
Key Features
- Stable Detection Distance: Reliable detection up to 15 meters
- 180° Rotation Angle: Allows flexible installation and optimal alignment
- IP65 Protection Grade: Ensures durability and resistance to dust and water
- Tamper-Proof Alarm Function: Provides additional security by detecting tampering attempts
- Standard Relay Signal Output Mode: Compatible with wide range of security systems
- Customizable Configurations: Length and number of beams can be tailored to specific requirements
Technical Working Principle
The JUTAI Safety Light Curtain Sensor operates on sophisticated infrared technology, encompassing the emission, propagation, interaction, reflection, and reception of infrared radiation.
- Infrared Emission: An infrared emitter projects a focused infrared beam along a predefined path
- Beam Propagation: The infrared beam travels uninterrupted, forming an invisible detection barrier
- Target Interaction: When an object intercepts the beam, it interacts with the infrared light
- Reflection or Scattering: The sensor's infrared receiver captures the reflected or scattered infrared light
- Signal Processing: The captured signal undergoes sophisticated processing to determine presence and characteristics
- Output Results: Processed data is converted into electrical or digital signals for system response
Applications
- Industrial Door Protection: Detects objects in door's path during closure, prompting automatic reopening
- Barrier Gate Safety: Swiftly detects and responds to persons or vehicles during gate operation
- Home Security: Triggers relay output upon detecting unauthorized entry, alerting security systems
Customization Options
JUTAI's Safety Light Curtain Sensor is available in various configurations to meet diverse application needs:
- PB3-4L15: Compact design with 30cm height and 4 infrared beams
- PB10-4L15: Versatile option with 100cm height and 4 infrared beams
- PB20-8L15: Comprehensive coverage with 200cm height and 8 infrared beams
Technical Specifications
| Number of Beams | 4/8 (or other customizable options) |
| Height | 30cm, 100cm, 200cm (or other customizable heights) |
| Detection Distance | 15 meters |
| Working Voltage | DC 12-24V |
| Transmitter Operating Current | <50mA |
| Receiver Operation Current | <50mA |
| Response Time | 50/100/150/200ms (adjustable) |
| Trigger Time | Blocks single beam: triggers in 2 seconds; blocks adjacent 2+ beams: triggers immediately |
| Induction Method | Single beam trigger or Multi-beam trigger (selectable) |
| Working Temperature | -20°C to 60°C |
| Ambient Temperature | Up to 90% RH Max (No condensation) |
| Alarm Output | Wired Output, Relay Output 30 VDC @ 2A, 125VAC @ 1A |
| Output Way (Wired Model) | Wired transmission (NO/NC) |
| Rotation Angle | 180 degrees horizontal |
| IP Level | IP65 |
| Material | Aluminum Alloy and PC Plastic |
| OEM | Yes |

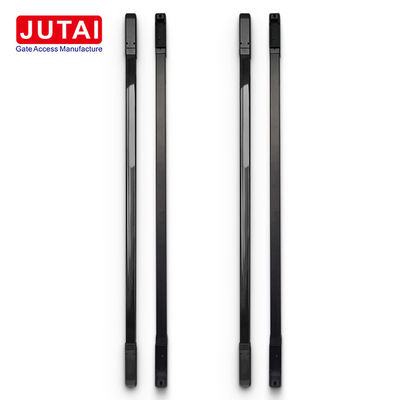

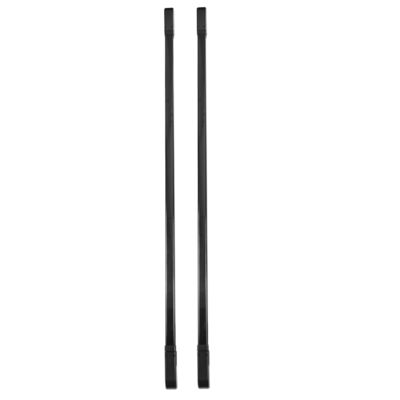

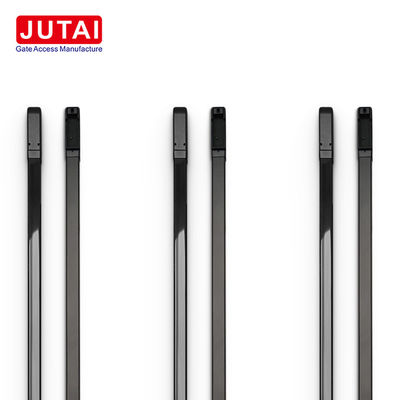

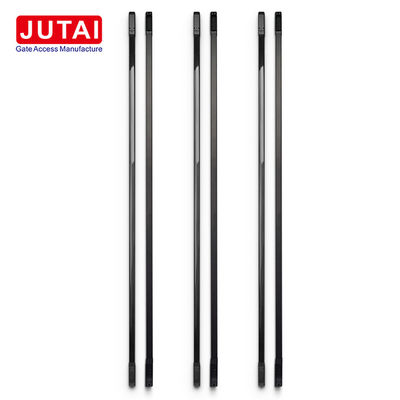

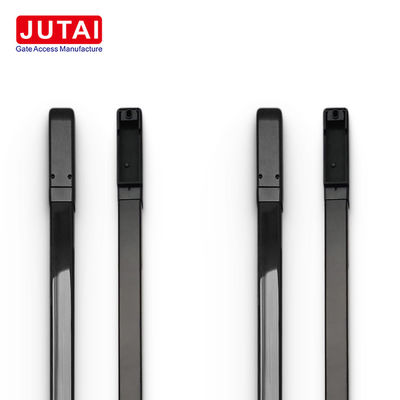

Product Images
Conclusion
Enhance your safety infrastructure with the JUTAI Safety Light Curtain Sensor. This reliable and highly adaptable sensor is designed to provide robust protection for industrial doors, barrier gates, and home security systems. With JUTAI's innovative technology and customizable solutions, you can ensure the highest level of safety and peace of mind for your premises.
