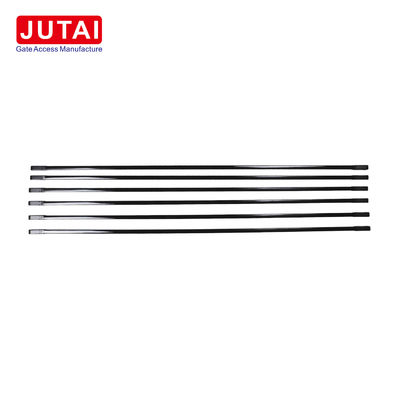

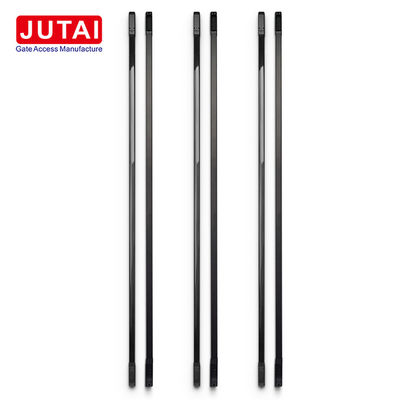

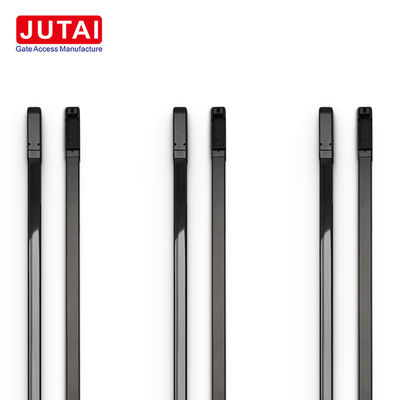

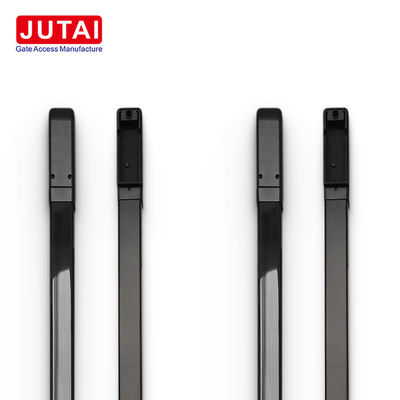

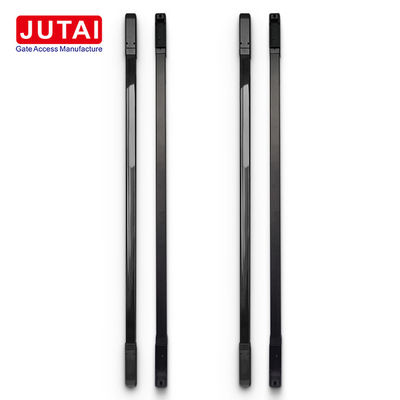

Black Aluminum Alloy Shell Anti Pinch 2m 8 Groups Safety Light Beams Curtain Sensor

Place of Origin	China
Brand Name	Jutai
Certification	CE
Model Number	PB20-8L15
Minimum Order Quantity	1
Price	Negotiation
Packaging Details	Cartoon
Delivery Time	5 - 8 working days
Payment Terms	T/T,L/C,D/A,D/P,Western Union,Paypal,,Alipay
Supply Ability	1000 pieces per month

Product Details

Material	Aluminum Alloy And PC Plastic	Operating Temperature	-20~60℃
IP Rating	IP65	Theory	Infrared Light
Specification	209139cm	Supply Voltage	DC12-24V
Sensing Distance	15m	Output Way	No/Nc
Highlight	Black Aluminum Alloy Shell Curtain Sensor , 2m 8 Groups Light Beams Curtain Sensor , Anti Pinch Light Beams Curtain Sensor

Leave a Message

Product Description

Black Aluminum Alloy Shell Anti Pinch 2m 8 Groups Safety Light Beams Curtain Sensor

Product Overview

Introducing the JUTAI Safety Light Curtain Sensor - an epitome of cutting-edge technology seamlessly integrated into a robust and adaptable solution. Tailored for industrial door protection, barrier gate safety, and home security, this sensor stands tall at 2 meters, fortified with 8 infrared beams to ensure unparalleled functionality and reliability.

Advanced Technological Features

Stable Detection Distance: 15 meters for precise and consistent monitoring
180° Rotation Angle: Enhanced adaptability to various installation environments
IP65 Protection Grade: Resilience against dust, water, and harsh outdoor conditions
Tamper-Proof Alarm Function: Additional protection against unauthorized interference
Standard Relay Signal Output Mode: Easy integration with existing security systems
Customization Options: Tailored lengths and beam configurations available

Working Principle

Infrared Emission: Creates a virtual detection barrier
Beam Propagation: Establishes a predefined detection zone
Target Interaction: Objects interact with infrared beams
Reflection or Scattering: Infrared receiver captures signals
Signal Processing: Advanced algorithms analyze object presence and characteristics
Output Results: Triggers appropriate responses based on predefined parameters

Applications

Industrial Door Protection: Swift detection ensures prompt reopening of doors upon detecting objects during closure.

Barrier Gate Safety: Facilitates instant gate reopening upon detecting objects or individuals during closure.

Home Security: Relay output functionality acts as reliable deterrent against unauthorized entry.

Technical Specifications

Parameter	Description
Number of Beams	4/8 (or other customizable options)
Height	30cm, 100cm, 200cm (or other customizable heights)
Detection Distance	15 meters
Working Voltage	DC 12-24V
Transmitter Operating Current	<50mA
Receiver Operation Current	<50mA
Response Time	50/100/150/200ms (adjustable)
Trigger Time	Blocks single beam: triggers in 2 seconds; blocks adjacent 2+ beams: triggers immediately
Induction Method	Single beam trigger or Multi-beam trigger (selectable)
Working Temperature	-20°C to 60°C
Ambient Temperature	Up to 90% RH Max (No condensation)
Alarm Output	Wired Output, Relay Output 30 VDC @ 2A, 125VAC @ 1A
Output Way (Wired Model)	Wired transmission (NO/NC)
Rotation Angle	180 degrees horizontal
IP Level	IP65
Material	Aluminum Alloy and PC Plastic
OEM	Yes
