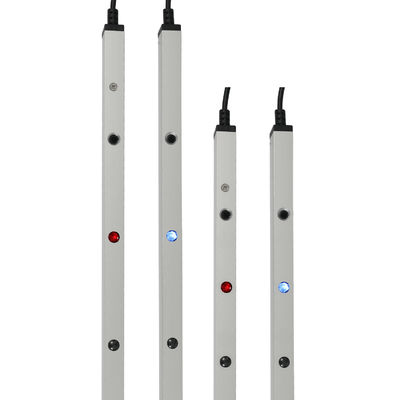

Aluminum Blanking Light Curtain Sensor 1.5m Length 8m Range 8 Beams IP67 Waterproof
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
WeChat: 0086 18588475571
skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Material | Aluminum Alloy | Feature | Corrosion Resistant |
|---|---|---|---|
| IP Rating | IP67 | Supply Voltage | DC12-24V |
| Sensing Distance | 8m | Operating Temperature | -20~60℃ |
| Operating Current | <50mA | Output | No/Nc, COM |
| Working Current | <20mA@DC12V | Specification | 150*2.1*1.5cm |
| Highlight | ip67 light curtain sensor,ip67 blanking light curtain,8m range light curtain sensor |
||
Product Description
The Blanking Infrared Light Curtain Sensor by Shenzhen Jutai Comm Co., Ltd. is meticulously designed to ensure robust industrial door safety with its Strong Light Resistance Security Active Infrared Sensor. Boasting an impressive 8m detection range and rapid response time, this sensor guarantees maximum safety for industrial doors, even in challenging lighting conditions. With reliable detection and monitoring capabilities, it significantly enhances security measures in various industrial settings. Invest in workplace safety with this top-tier industrial-grade sensor, offering long-range safety sensing capabilities for unparalleled security.
Advantages and Features:
Versatile Integration:
- Seamlessly integrates into all types of door control systems.
- Ensures compatibility and ease of use.
Flexible Mounting Options:
- Facilitates direct integration into the door edge through door blanking.
- Adaptable to various door configurations.
Automatic Door Safety:
- Specifically designed for automatic doors and gates.
- Provides reliable safety measures with the CL15-8L8 compact light curtain.
Wide Application Range:
- Suitable for high-speed doors, sectional doors, rolling doors, vertical closing telescopic doors, and freight elevators.
Accurate Detection:
- Through-beam safety light curtains accurately detect people or objects passing through.
- Prevents accidents and ensures timely door opening signals.
Output Options:
- Offers NO/NC and COM output methods.
- Enhances flexibility in integration with door control systems.
Efficient Operation:
- Low working current of <20mA at DC12V.
- Working voltage range of DC12-24V ensures energy-efficient operation.
Blanking Functionality:
- Features a Blanking function to avoid triggering relay output when no object passes through during normal door closing.
- Immediately outputs a signal to activate the relay and open the door if an object passes through during the door closing process.
IP67 Waterproof Rating:
- Built to withstand harsh environments.
- IP67 rated for waterproof protection, ensuring reliable operation even in wet conditions.
Elevate workplace safety with the Door Sensor Photocell Light Curtain. Tailored for industrial environments, this sensor offers robust security features, including an 8m detection range, flexible mounting options, accurate detection capabilities, Blanking functionality, and IP67 waterproof rating. Trust in the quality and effectiveness of the CL15-8L8 light curtain for optimal security and peace of mind.
|
Features
|
integrated in all types of door control systems
|
|
Mounting Type
|
Direct integration into the door edge due to door blanking
|
|
Description
|
automatic door safety light curtain sensor
|
|
Model Number
|
CL15-8L8 ( 8-beams, 150cm height )
|
|
Type
|
safety light curtain
|
|
Usage
|
High-speed doors
Sectional doors Rolling doors
Vertical closing telescopic doors
Freight elevators
|
|
Theory
|
Through-beam safety light curtains are used for fast doors and rolling shutter doors to prevent clipping (people or objects), and
can accurately detect passing people or objects to provide door opening signals to avoid potential safety hazards. |
|
Output
|
NO/NC, COM
|
|
Description
|
safety light curtain
|
|
Working current
|
<20mA@DC12V
|
|
Working voltage
|
DC12-24V
|
|
Detection range
|
maximum 8m
|
|
Protective height
|
Maximum1225mm(concealing mode), 1305mm(normal mode)
|
|
Output method
|
NO/NC, COM
|
|
Beams
|
8-beams
|
|
LED status
|
Receiver: red light(object blocked)
blue light(unblocked)
blue light flash( Emitter and receiver not aligned)
Transmitter: blue light constant(normal)
red light flash(voltage below 9v, above 28v)
|
|
Operating Temperature
|
-20 ~+70℃
|
|
Protection Level
|
IP67
|
|
Shell Material
|
Aluminum alloy
|
Enhance industrial door safety with our 1500mm Infrared Light Curtain sensor. Ideal for fast-speed doors with an 8m detecting range.
Enhance industrial door safety with the 1500mm Infrared Light Curtain sensor from Shenzhen Jutai Comm Co., Ltd. This sensor can detect up to 8m with fast speed, ensuring a secure environment in industrial settings. Invest in safety today!
