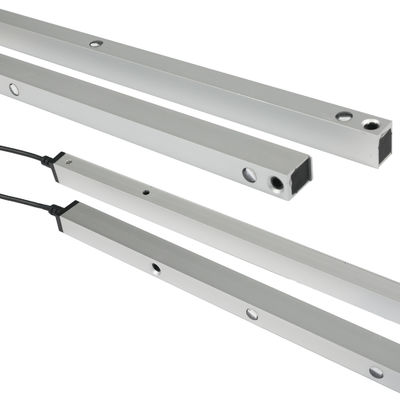

Waterproof Safety Light Curtains IP67 Aluminum 1.5m 8 Beams 8m Range Blanking Function
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
WeChat: 0086 18588475571
skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Material | Aluminum Alloy | Feature | Corrosion Resistant |
|---|---|---|---|
| IP Rating | IP67 | Supply Voltage | DC12-24V |
| Sensing Distance | 8m | Operating Temperature | -20~60℃ |
| Operating Current | <50mA | Output | No/Nc, COM |
| Working Current | <20mA@DC12V | Specification | 150*2.1*1.5cm |
| Highlight | safety light curtains ip67,ip67 infrared light curtain,8 beams safety light curtains |
||
Product Description
Waterproof Safety Light Curtain IP67 Aluminum 1.5m 8 Beams 8m Range Blanking Function
The meticulously crafted Blanking Infrared Light Curtain Sensor from Shenzhen Jutai Comm Co., Ltd. guarantees robust safety for industrial doors with its Strong Light Resistance Security Active Infrared Sensor. Featuring an impressive 8m detection range and rapid response time, this sensor ensures maximum safety even in challenging lighting conditions. With its dependable detection and monitoring capabilities, it significantly boosts security measures across various industrial settings. Invest in workplace safety with this premier industrial-grade sensor, delivering unmatched security with its long-range safety sensing capabilities.
Advantages and Features:
Versatile Integration:
- Seamlessly integrates into diverse door control systems, ensuring hassle-free compatibility.
Flexible Mounting Options:
- Facilitates seamless integration into the door edge via door blanking, adapting effortlessly to different door configurations.
Automatic Door Safety:
- Tailored for automatic doors and gates, providing steadfast safety measures through the CL15-8L8 compact light curtain.
Wide Application Range:
- Suitable for high-speed doors, sectional doors, rolling doors, vertical closing telescopic doors, and freight elevators.
Accurate Detection:
- Ensures precise detection of individuals or objects passing through, preempting accidents and ensuring prompt door opening signals.
Output Options:
- Provides NO/NC and COM output methods, amplifying integration flexibility with door control systems.
Efficient Operation:
- Operates with a low working current of <20mA at DC12V, ensuring energy-efficient functionality.
- Boasts a working voltage range of DC12-24V for optimal performance.
Blanking Functionality:
- Incorporates a Blanking function to prevent relay output triggers during normal door closing when no object passes through.
- Instantly activates the relay and opens the door if an object passes through during the door closing process.
IP67 Waterproof Rating:
- Engineered to endure harsh environments, featuring an IP67 waterproof rating for reliable operation even in wet conditions.
Enhance workplace safety with the Door Sensor Photocell Light Curtain. Tailored for industrial environments, this sensor offers robust security features, including an 8m detection range, versatile mounting options, precise detection capabilities, Blanking functionality, and IP67 waterproof rating. Rely on the quality and effectiveness of the CL15-8L8 light curtain for unparalleled security and peace of mind.
Examples of Suitable Door Types:
- High-Speed Doors:
- Perfect for environments demanding frequent access and swift operation, such as warehouses, manufacturing facilities, or logistics centers.
- Cold Storage Doors:
- Essential for preserving temperature-controlled environments in facilities like food processing plants, pharmaceutical warehouses, or cold storage facilities.
- Garage Doors:
- Widely used in residential, commercial, and industrial settings, providing security and convenience for vehicle access and storage.
|
Features
|
integrated in all types of door control systems
|
|
Mounting Type
|
Direct integration into the door edge due to door blanking
|
|
Description
|
automatic door safety light curtain sensor
|
|
Model Number
|
CL15-8L8 ( 8-beams, 150cm height )
|
|
Type
|
safety light curtain
|
|
Usage
|
High-speed doors
Sectional doors Rolling doors
Vertical closing telescopic doors
Freight elevators
|
|
Theory
|
Through-beam safety light curtains are used for fast doors and rolling shutter doors to prevent clipping (people or objects), and
can accurately detect passing people or objects to provide door opening signals to avoid potential safety hazards. |
|
Output
|
NO/NC, COM
|
|
Description
|
safety light curtain
|
|
Working current
|
<20mA@DC12V
|
|
Working voltage
|
DC12-24V
|
|
Detection range
|
maximum 8m
|
|
Protective height
|
Maximum1225mm(concealing mode), 1305mm(normal mode)
|
|
Output method
|
NO/NC, COM
|
|
Beams
|
8-beams
|
|
LED status
|
Receiver: red light(object blocked)
blue light(unblocked)
blue light flash( Emitter and receiver not aligned)
Transmitter: blue light constant(normal)
red light flash(voltage below 9v, above 28v)
|
|
Operating Temperature
|
-20 ~+70℃
|
|
Protection Level
|
IP67
|
|
Shell Material
|
Aluminum alloy
|
Enhance industrial door safety with our 1500mm Infrared Light Curtain sensor. Ideal for fast-speed doors with an 8m detecting range.
Enhance industrial door safety with the 1500mm Infrared Light Curtain sensor from Shenzhen Jutai Comm Co., Ltd. This sensor can detect up to 8m with fast speed, ensuring a secure environment in industrial settings. Invest in safety today!
