Anti-Cloning UHF RFID Reader with 9m Reading Distance and IP65 Waterproof Rating
Product Details
| Reading Distance | 1-9m | Frequency Range | 902-928MHz/860-868MHz |
|---|---|---|---|
| Antenna | Circular Polarization/Linear Polarization | Max Output Power | 30dBm (Adjustable) |
| Output Interface | Wiegand26/34, RS485 | PC Interface | RS232 |
| Working Temperature | -25~+70℃ | Installation | U-Shaped Pole |
| Encryption Version | Anti-Cloning | Product Size | 25.5*25.5*4.2cm |
| Interface | Serial Port, Wiegand | Certificate | CE |
| Highlight | UHF Reader 9m IP65,Anti clone UHF Reader,RFID reader 860 960 mhz 9m IP65 |
||
Product Description
Anti Clone UHF Reader RFID Reader 860-960 MHz 9m IP65 Customizable
Product Overview
Crafted by the adept team at Shenzhen Jutai Comm Co., Ltd., the PUHF9-8/9R2P (White/Gray) RFID UHF reader operates within the 902-928MHz or 860-868MHz frequency bands. It excels in long-range Wiegand reading, spanning up to 9 meters under free air conditions while considering on-site interference and reading angles.
This reader boasts multi-protocol compatibility, ensuring swift and efficient reads across various RFID systems. While it shines in UHF technology, it may face limitations with tinted solar films.
Supplied with a mounting bracket and power supply, the weather-resistant PET material housing ensures durability against sunlight and rain, making it an ideal choice for access control tracking systems and car parking applications.
Key Features & Advantages
Enhanced Reading Reach
With a reading range of up to 9 meters, this reader caters to diverse applications with added convenience.
Stand-Alone Capability
Supporting stand-alone use with ample offline storage capacity ensures smooth operation, even in areas with limited network connectivity.
Expert Engineering
Engineered by Jutai experts, this reader provides tailored protocols and solutions to effectively meet specific needs.
Advanced Encryption Technology
Incorporating exclusive advanced encryption technology ensures precise one-to-one identification without interference, enhancing security.
Interface Flexibility
Compatible with Serial Port and Wiegand interfaces, seamless integration with existing systems is facilitated for enhanced functionality.
Weather-Resistant Build
The weather-resistant PET material housing, along with the mounting bracket and power supply, guarantees durability against harsh environmental conditions.
Technical Specifications
| Function and Advantage | Details |
|---|---|
| Operating Frequency | Adjustable between 860-868MHz and 902-928MHz to suit different countries and regions. |
| Directional Antenna Technology | Recognizes only the front of the card reader, enhancing efficiency. |
| Versatile Usage | Can be used in a metal chassis or independently. |
| Variable Reading Distance | Reading distance ranges from 1 to 9 meters, depending on the antenna used. |
| Protocol Support | Supports eligible ISO18000-6B and ISO18000-6C (EPCG2) protocol passive RFID cards. |
| Interface Compatibility | Utilizes standard Wiegand 26/34 output interface for direct access to Wiegand interface systems. |
| Flexible Working Modes | Offers ground sensor mode or continuous mode operation. |
| RS232 Interface | Reserved RS232 interface for connection to a PC. |
| Waterproof Design | Boasts an IP65 waterproof grade, suitable for outdoor parking field systems. |
| Encryption Reader | Works with Jutai Encryption cards/tags, ensuring secure one-to-one passwords. |
Product Images

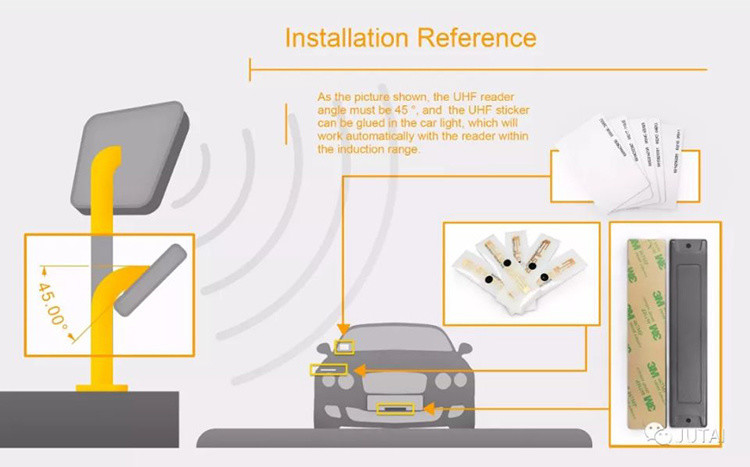

Installation
Certifications
