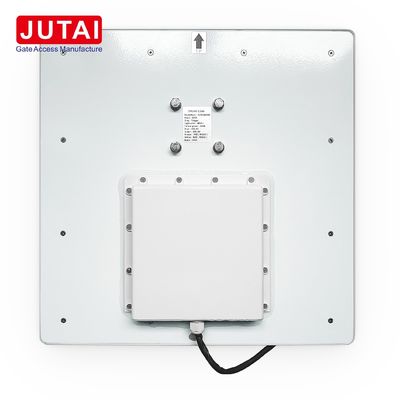

Nonlinear Encryption Long Range UHF RFID Reader 15m Max 30dBm Adjustable IP65 For Parking System Access

Place of Origin	China
Brand Name	JUTAI
Certification	CE
Model Number	PUHF12-8-9R2P
Minimum Order Quantity	1
Price	Negotiation
Packaging Details	Cartoon
Delivery Time	5 - 8 working days
Payment Terms	T/T,L/C,D/A,D/P,Western Union,Paypal,,Alipay
Supply Ability	1000 pieces per month

Product Details

Reading Distance	3-15m	Power Supply	<0.5W
Frequency Range	902-928MHz, 860-868MHz	Antenna	Directional Antenna Technology
Output Interface	Wiegand26/34	PC Interface	RS232/RS485
Card Type/	Is01800-6b, ISO1800-6c (EPC G2)	Waterproof	IP65
Support	Iot UHF Long Range Reader	Specification	45cm45cm 4cm
Highlight	Parking System Access Long Range UHF RFID Reader , Long Range UHF RFID Reader 30dBm , Nonlinear Encryption UHF 30dBm

Leave a Message

Product Description

Nonlinear Encryption Long Range UHF RFID Reader

Product Overview

Advanced Nonlinear Encryption UHF RFID Reader with 15m maximum range, 30dBm adjustable power, and IP65 rating designed for parking system access control applications.

Technical Specifications

Feature	Details
Power Supply	Current transformer, input 220V, output 9V/3A
Frequency Range	860-868MHz, 902-928MHz
Card Type	ISO18000-6B/6C (EPC GEN2)
Antenna	Circular polarization/linear polarization orientation
Max Output Power	30dBm (Adjustable)
Reading Distance	1-12m (Depending on the antenna)
Output Interface	Wiegand26/34, RS232, RS485
PC Interface	RS232
Waterproof	IP65
Working Temperature	-25°C to +70°C
Installation	U-shaped pole
Safety	With encryption function, safe and copy-proof
Reading Type	Single Tag/Multi-Tag for selection

Key Features & Advantages

Ultra-Long Reading Range: Up to 15 meters for enhanced convenience and coverage
Independent Use: Supports stand-alone operation with large offline storage capacities
Expert Engineering: Custom protocols and solutions tailored to specific requirements
Advanced Encryption Technology: Precise one-to-one identification without cloning risk
Versatile Connectivity: Compatible with Serial Port and Wiegand interfaces
Weatherproof Design: PET material housing ensures durability against sunlight and rain

Wiring Configuration

Wire Color	Function
Red	DC+ 9-12V
Blue	Wiegand D1
Light Pink	RS485 A+
Brown	TXD (RS232)
Black	0V (Ground)
Green	Wiegand D0
Yellow Green	RS485 B-
White	RXD (RS232)
Black	0V (Ground)
Yellow	Short Cut to Loop Signal
