Long Range UHF RFID Card Reader 15M Long Range 12dB Wiegand RS232 485 IP65 TID Encryption

Place of Origin	China
Brand Name	JUTAI
Certification	CE
Model Number	PUHF12-8-9R2P
Minimum Order Quantity	1
Price	Negotiation
Packaging Details	Cartoon
Delivery Time	5 - 8 working days
Payment Terms	T/T,L/C,D/A,D/P,Western Union,Paypal,,Alipay
Supply Ability	1000 pieces per month

Product Details

Reading Distance	3-15m	Power Supply	<0.5W
Frequency Range	902-928MHz, 860-868MHz	Antenna	Directional Antenna Technology
Output Interface	Wiegand26/34	PC Interface	RS232/RS485
Card Type/	Is01800-6b, ISO1800-6c (EPC G2)	Waterproof	IP65
Support	Iot UHF Long Range Reader	Specification	45cm45cm 4cm
Highlight	UHF RFID Card Reader 15M , UHF RFID Card Reader 12dB , long range rfid reader IP65 TID Encryption

Leave a Message

Product Description

Long Range UHF RFID Card Reader 15M Long Range 12dB Wiegand RS232 485 IP65 TID Encryption

Product Overview

The Ultra-Long Range UHF RFID Reader with Advanced Encryption Technology, also known as the PUHF12-8-9R2P, is a marvel of RFID engineering from Shenzhen Jutai Comm Co., Ltd. This reader operates within the 860-868MHz and 902-928MHz frequency bands, ensuring exceptional performance in long-range Wiegand reading, reaching distances of up to 15 meters in free air conditions while considering on-site interference and card reading angles.

Technical Specifications

Feature	Details
Power Supply	Current transformer, input 220V, output 9V/3A
Frequency Range	860-868MHz, 902-928MHz
Card Type	ISO18000-6B/6C (EPC GEN2)
Antenna	Circular polarization/linear polarization orientation
Max Output Power	30dBm (Adjustable)
Reading Distance	1-12m (Depending on the antenna)
Output Interface	Wiegand26/34, RS232, RS485
PC Interface	RS232
Waterproof	IP65
Working Temperature	-25°C to +70°C
Installation	U-shaped pole
Safety	With encryption function, safe and copy-proof
Reading Type	Single Tag/Multi-Tag for selection

Wire Connections

Wire Color	Function
Red	DC+ 9-12V
Blue	Wiegand D1
Light Pink	RS485 A+
Brown	TXD (RS232)
Black	OV (Ground)
Green	Wiegand D0
Yellow Green	RS485 B-
White	RXD (RS232)
Black	OV (Ground)
Yellow	Short Cut to Loop Signal

Key Features & Advantages

Ultra-Long Reading Range: Capable of reading tags from distances of up to 15 meters
Independent Stand-Alone Capability: Large offline storage capabilities
Expert Engineering: Custom protocols and solutions tailored to specific requirements
Advanced Encryption Technology: Precise one-to-one identification without interference
Interface Flexibility: Compatible with Serial Port and Wiegand interfaces
Weatherproof Design: IP65-rated weatherproof PET material housing
Easy Installation: Designed for easy mounting on U-shaped poles
Enhanced Safety: Advanced encryption function for protection against cloning

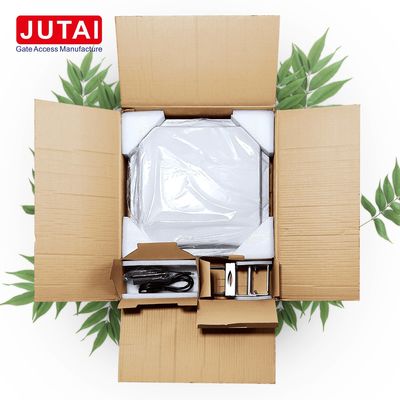

Product Images
