24GHz Doppler Microwave Radar Motion Sensor For Industrial Fast Speed Gates
| Place of Origin | China |
|---|---|
| Brand Name | JUTAI |
| Certification | FDA, E-MARK, CE, ISO, FCC, RoHS, DOT, ASTM, AS/NZS, CCC, GS |
| Model Number | RVP42-9ME |
| Minimum Order Quantity | 1 |
| Price | Negotiation |
| Packaging Details | Cartoon |
| Delivery Time | 5-8 days |
| Payment Terms | T/T, L/C, D/A, D/P, Western Union, Paypal, , MoneyGram, Alipay |
| Supply Ability | 1000 pieces per month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
WeChat: 0086 18588475571
skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Output | 2 Relays Output. Max.48 VAC/DC. Max.Current 1A | Power Supply | 12-28VAC, 12-36VDC |
|---|---|---|---|
| Frequency | 24.125GHz | Detection Height | 2m To 9m |
| HS Code | 9031809090 | Package Size | 28.00cm * 13.00cm * 10.00cm |
| Highlight | 24GHz microwave radar motion sensor,fast speed gates microwave radar motion sensor,24GHz doppler motion sensor |
||
Product Description
24GHz Microwave Doppler High Stability Motion Detect Radar Sensor For Industrial Fast Speed Gates
Product Description
Model: RP42-9ME/RVP42-9MG

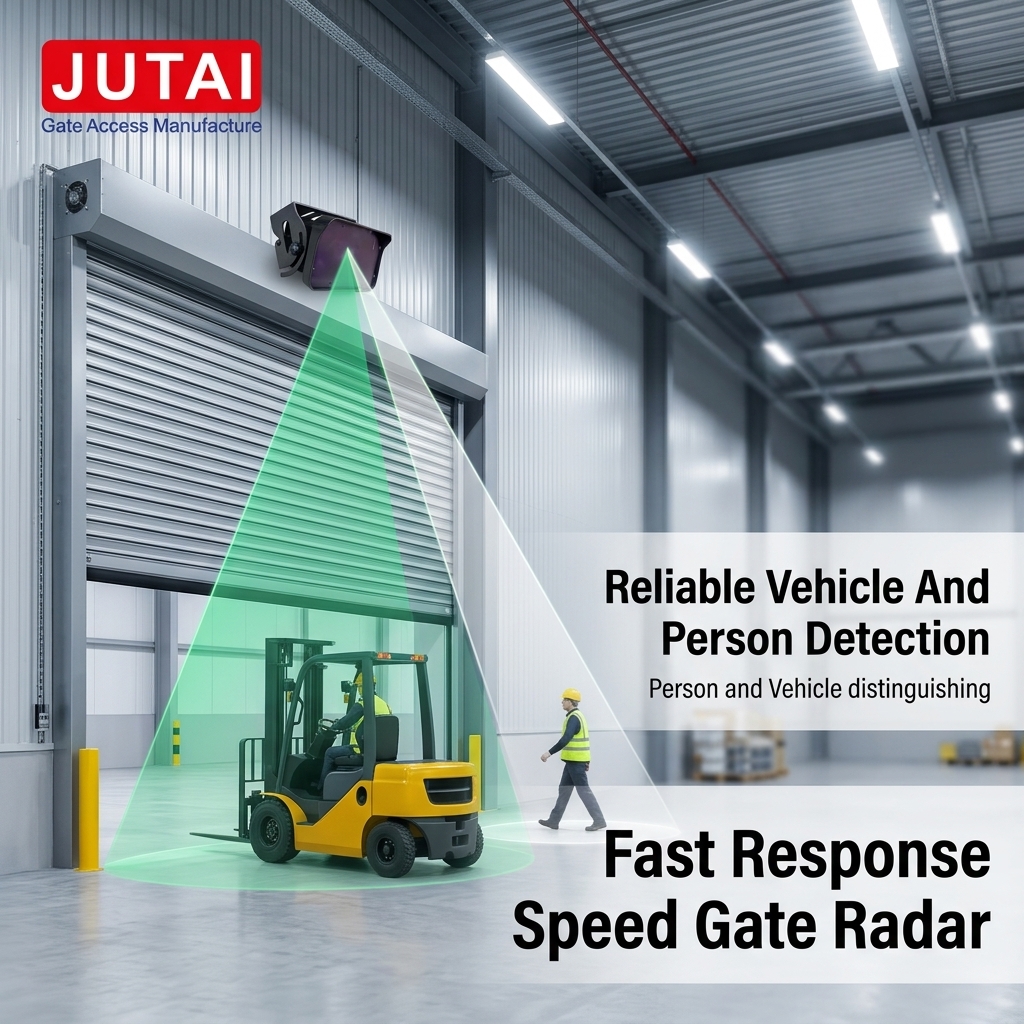

The RP42-9ME/RVP42-9MG is a high-performance motion radar detector designed for vehicle and human detection, specifically developed for industrial doors, garage doors, cold storage doors, road gates, and other industrial applications. It features dual relays for vehicle detection and pedestrian detection, and can activate the corresponding relay output as needed.
Additionally, the RVP12-9ME/RVP42-9MG includes recognition and filter functions for horizontally moving vehicles or pedestrians.
Detection Area
Adjustable Detection Zones:
- Narrow or Wide Detection Areas: Suitable for all types of installations.
- Narrow Setting: Easily set by clicking the narrow lens onto the radar module.
- Position Adjustment: Turn the module left or right and tilt it up or down to quickly and easily adjust for various applications.
- Sensitivity Adjustment: Use the sensitivity potentiometer to fine-tune the detection area.
Dual Relay Outputs
Fully Customizable Radar Motion Sensor:
- Vehicle-Detection Relay: Activates upon detecting a vehicle.
- Person-Detection Relay: Activates in response to human presence.
- Combined Mode: Both vehicle and person detection relays are active.
- Custom Settings: Configure the sensor to activate only the vehicle-detection mode if required.
Direction Recognition
Configurable Detection Directions:
- Forward Motion: Activates upon approaching the sensor.
- Reverse Motion: Triggers when moving away from the sensor.
- Bidirectional Sensing: Detects both forward and backward motion.
Energy Savings
Efficiency and Pest Control:
- Selective Activation: Limits activation to approaching traffic only.
- Automatic Door Control: The door remains open only during usage and closes automatically when traffic departs.
Seamless Operation
Enhanced Workflow Efficiency:
- Hands-Free Operation: Open doors without manual intervention.
- Flexible Installation: Suitable for both new installations and retrofitting for dock and pedestrian doors.
- Customizable Detection Modes: Filter settings for pedestrian, forklift, and parallel traffic detection.
- Traffic Distinction: Differentiates between approaching and departing vehicles.
JUTAI Opening Sensor for Industrial Doors
Suitable for Various Applications:
- Doppler Radar Technology: Senses industrial doors through Doppler radar.
- Customizable Sensing Area: Adjust the sensing area to activate only specific functions.
- Dual-Channel Relay: One channel for vehicle detection and the second for human detection.
Product Parameters
| Feature | Details |
|---|---|
| Application Technology | Doppler radar |
| Transmission Frequency | 24.125GHz |
| Transmission Power | <20dBm |
| Detection Height | 2.0m~9.0m |
| Angle Adjustment | 0°-90° longitudinal |
| Detection Speed | 5cm/s~25km/s |
| Detection Area (30° Angle) | 3.0m3.5m @ height: 2m / 6.5m8.5m @ height: 9m |
| Operation Current | <100mA |
| Power Frequency | 50Hz |
| Temperature Range | -30 ºC~+60 ºC |
| Relative Humidity | 0% to 95%, no condensation |
| Protection Grade | IP65 |
| Relay Output | 24VDC @ 1A / 125VAC @ 0.5A |
| External Dimensions | 164mm x 111mm x 94.5mm |
| Cable Length | 7m |
| Sensor Weight | 650g |
| Operation Voltage | 12~36VADC |
The RP42-9ME/RVP42-9MG radar sensor provides a robust and adaptable solution for industrial door applications, offering high customization, reliable detection, and energy-efficient operation.
Detection Area Adjustment Customizable Detection Zones
Our microwave sensors provide both narrow and wide detection areas to accommodate diverse installation needs. Follow these steps to adjust and optimize the detection area for the best performance:
Narrow Detection Setting:
- Configuration: Attach the narrow lens to the radar module to activate narrow detection.
- Position Adjustment: Rotate the module left or right and tilt it up or down to fine-tune the detection area.
Wide Detection Setting:
- Configuration: Use the default setting without the narrow lens for broad area detection.
Sensitivity Adjustment:
- Control: Adjust the sensitivity potentiometer to refine the detection area.
Benefits:
- Ease of Adjustment: No additional setup devices are needed.
- Quick and Simple Configuration: Effortless setup for various applications.
By offering flexible detection area settings and straightforward adjustments, our microwave sensors deliver reliable performance tailored to your specific requirements.
Dual Relay Configuration
Discover our radar motion sensor equipped with dual relay functionality, designed for versatile and precise detection:
Vehicle Detection Relay:
- Function: Engages upon detecting a vehicle.
Person Detection Relay:
- Function: Activates in response to human presence.
Combined Mode:
- Function: Simultaneously activates both vehicle and person detection relays.
Customization Options:
- Exclusive Vehicle Detection Mode:
- Description: Activates only the vehicle detection relay while deactivating the person detection relay.
Tailor the settings to meet the specific requirements of your project, ensuring optimal performance and precise detection.
Direction Recognition
Directional Detection Settings
- Forward Motion: Activates upon approaching the sensor.
- Reverse Motion: Triggers when moving away from the sensor.
- Bidirectional Sensing: Detects both forward and backward motion.
Efficient Energy Management
- Optimized Energy Consumption: The system activates only when traffic is detected, ensuring the door remains open only during use and automatically closes when traffic departs.
- Enhanced Pest Control: Limits the time the door is open, reducing the risk of pests entering.
Seamless Operation
- Effortless Door Operation: Enables smooth door operation without manual intervention.
- Versatile Application: Suitable for new installations and retrofitting, ideal for dock and pedestrian doors with automated functionality.
Customizable Detection Modes
- Tailored Detection Settings: Filter settings for pedestrian, forklift, and parallel traffic.
- Accurate Distinction: Differentiates between approaching and departing vehicles.
Convenient Remote Control
- Remote Control / Bluetooth App Settings: Provides convenient parameter adjustment and management.
- Enhanced Operational Efficiency: Simplifies adjustments and improves ease of use.
Remote Control / Bluetooth APP Programming Features
Experience seamless programming and configuration with our remote control and Bluetooth app, allowing users to make quick and safe adjustments from the ground:
-
Mounting Height Setting: Easily adjust the mounting height of the sensor for optimal detection coverage.
-
Relay Parameter Setting: Fine-tune relay parameters to suit specific requirements, ensuring precise operation.
-
Detection Area Setting: Customize the detection area according to the installation environment for accurate sensing.
-
Relay Holding Time Setting: Set the duration for which the relay remains active after detection, optimizing door operation.
-
Direction Recognition Setting: Configure the sensor to recognize the direction of movement, enhancing functionality in directional applications.
-
Crossing Traffic Setting: Adjust settings to accommodate crossing traffic, allowing smooth operation in complex environments.
-
Anti-Interference Function Setting: Activate anti-interference functions to minimize false triggers and ensure reliable performance.
-
Manual Industrial Door Opening Setting: Enable manual override for industrial door opening, providing flexibility in emergency situations.
-
Exit Configuration Mode: Exit the configuration mode easily after programming is complete, ensuring smooth transition to operational mode.
-
Reset: Reset the sensor to default settings when necessary, simplifying troubleshooting and setup procedures.
Solutions
Applications of Automatic Industry Door Sensor Types Radar Sensor
-
Factory Entrances:
- Enhance security and efficiency with our radar sensor, tailored for use at factory entrances.
-
Industrial Safety:
- Ensure safety with pedestrian and parallel traffic rejection capabilities, making it ideal for busy industrial environments.
-
Parking Garage Management:
- Optimize parking garage operations with our advanced detection technology.
-
Access Control:
- Enable barrier arm activation for seamless access control in various settings.
