Microwave Sensor For High Speed Rolling Shutter Doors / Industrial Stacking Door
| Place of Origin | China |
|---|---|
| Brand Name | JUTAI |
| Certification | FDA, E-MARK, CE, ISO, FCC, RoHS, DOT, ASTM, AS/NZS, CCC, GS |
| Model Number | RVP42-9ME |
| Minimum Order Quantity | 1 |
| Price | Negotiation |
| Packaging Details | Cartoon |
| Delivery Time | 5-8 days |
| Payment Terms | T/T,L/C,D/A,D/P,Western Union,Paypal,,Alipay |
| Supply Ability | 1000 pieces per month |
Product Details
| Output | 2 Relays Output. Max.48 VAC/DC. Max.Current 1A | Power Supply | 12-28VAC, 12-36VDC |
|---|---|---|---|
| Frequency | 24.125GHz | Detection Height | 2m To 9m |
| HS Code | 9031809090 | Package Size | 28.00cm * 13.00cm * 10.00cm |
| Highlight | high speed rolling shutter doors microwave sensor,industrial stacking door microwave sensor,Industrial gate microwave sensor |
||
Product Description

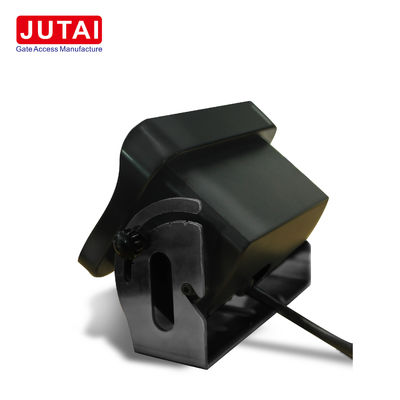

Microwave Sensor For High Speed Rolling Shutter Doors / Industrial Stacking Door
Product Overview
The RP42-9ME/RVP42-9MG is an advanced motion radar detector designed specifically for vehicle and human detection in industrial settings such as doors, gates, and road barriers. Equipped with dual relays for vehicle and pedestrian detection, this detector offers customizable relay outputs to suit various requirements.
Key Features
- Dual relay outputs for vehicle and pedestrian detection
- Recognition and filtering function for horizontally moving vehicles or pedestrians
- Adjustable detection area with narrow and wide settings
- Direction recognition for forward, backward, or both motions
- Energy-saving automatic operation
- Touchless operation using Doppler radar technology
- Easy installation with no external setup device required

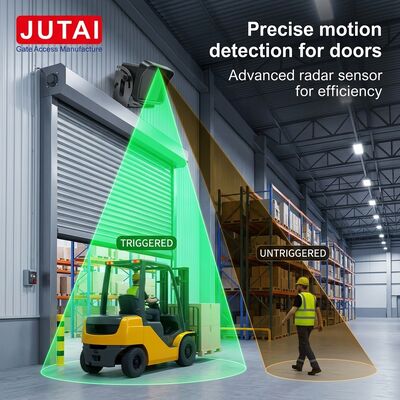

Detection Area Adjustment
- Microwave range offers both narrow and wide detection areas
- Configure narrow setting by attaching narrow lens to radar module
- Adjust detection area by turning module left/right and tilting up/down
- Fine-tune detection area with sensitivity potentiometer
Technical Specifications
| Application Technology | Doppler radar |
|---|---|
| Transmission Frequency | 24.125GHz |
| Transmission Power | <20dBm |
| Detection Height | 2.0m~9.0m |
| Angle Adjustment | 0°-90° longitudinal |
| Detection Speed | 5cm/s~25km/s |
| Operation Current | <100mA |
| Power Frequency | 50Hz |
| Temperature Range | -30°C to +60°C |
| Relative Humidity | 0% to 95%, no condensation |
| Protection Grade | IP65 |
| External Dimensions | 164mm x 111mm x 94.5mm |
| Cable Length | 7m |
| Sensor Weight | 650g |
| Operation Voltage | 12~36VADC |
Applications
Ideal for various industrial door applications including fast doors, stacking doors, garage doors, dock doors, and pedestrian doors with automated functionality.
Product Advantages
- Doppler radar technology enables touchless operation
- Customizable sensing areas for precise detection
- Built-in 2-channel relay for vehicle and human detection
- Enhanced functionality and versatility
- Energy efficiency and improved workflow optimization
- Accurate filtering for pedestrian, forklift, and parallel traffic
