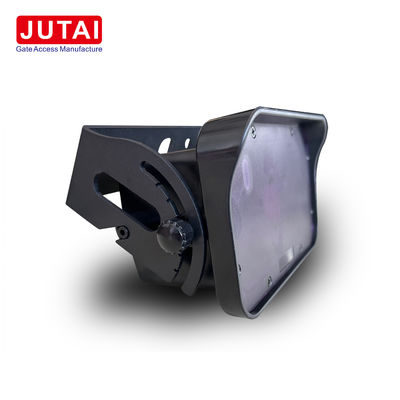

24.125GHz Industrial Door Opening Sensor with Dual Relay Outputs and Direction Recognition for Industrial Applications
| Place of Origin | China |
|---|---|
| Brand Name | JUTAI |
| Certification | FDA, E-MARK, CE, ISO, FCC, RoHS, DOT, ASTM, AS/NZS, CCC, GS |
| Model Number | RVP42-9ME |
| Minimum Order Quantity | 1 |
| Price | Negotiation |
| Packaging Details | Cartoon |
| Delivery Time | 5-8 days |
| Payment Terms | T/T,L/C,D/A,D/P,Western Union,Paypal,MoneyGram,Alipay |
| Supply Ability | 1000 pieces per month |
Product Details
| Output | 2 Relays Output. Max.48 VAC/DC. Max.Current 1A | Power Supply | 12-28VAC, 12-36VDC |
|---|---|---|---|
| Frequency | 24.125GHz | Detection Height | 2m To 9m |
| HS Code | 9031809090 | Package Size | 28.00cm * 13.00cm * 10.00cm |
| Highlight | door entry sensor 24.125GHz,12-36VDC door entry sensor,door opening sensor 24.125GHz |
||
Product Description
12-36VDC Industrial Door Opening Sensor Door Entry Sensor 24.125GHz
Automatic Gate Activation Detector 24GHz Radar Sensor For Industrial Fast Speed Door
Our Advantages
JUTAI RP42-9ME Industrial Door Opening Sensor
- Advanced Detection Technology: Employs cutting-edge Doppler radar technology to detect both vehicles and human presence. Tailored for industrial doors, garage doors, cold storage doors, road gates, and various industrial applications.
- Flexible Detection Area Adjustment: Adjustable detection zones with options for narrow or wide detection areas. Easy configuration with narrow lens attachment, left/right rotation, and tilt adjustments. Fine-tune sensitivity using potentiometer.
- Dual Relay Outputs for Customization: Equipped with dual relays offering customizable configurations for vehicle and pedestrian detection. Options include activating vehicle-detection relay, person-detection relay, or both simultaneously.
- Direction Recognition and Energy Efficiency: Direction recognition capabilities enable activation based on forward, reverse, or bidirectional motion. Enhances energy efficiency by limiting activation to approaching traffic.
- Streamlined Workflow Efficiency: Hands-free operation eliminates manual intervention. Suitable for both new installations and retrofitting. Customizable detection modes for pedestrian, forklift, and parallel traffic detection.
JUTAI Industrial Door Opening Sensor Advantages
- Remote control programming for quick and safe parameter adjustments
- Bluetooth connectivity with mobile app for simplified parameter setting
- Adjustable detection area, detection height, and installation angle
- High and low-temperature resistance for reliable performance in diverse outdoor environments
Product Parameters
| Feature | Details |
|---|---|
| Application Technology | Doppler radar |
| Transmission Frequency | 24.125GHz |
| Transmission Power | <20dBm |
| Detection Height | 2.0m~9.0m |
| Angle Adjustment | 0°-90° longitudinal |
| Detection Speed | 5cm/s~25km/s |
| Detection Area (30° Angle) | 3.0m x 3.5m @ height: 2m / 6.5m x 8.5m @ height: 9m |
| Operation Current | <100mA |
| Power Frequency | 50Hz |
| Temperature Range | -30 ºC~+60 ºC |
| Relative Humidity | 0% to 95%, no condensation |
| Protection Grade | IP65 |
| Relay Output | 24VDC @ 1A / 125VAC @ 0.5A |
| External Dimensions | 164mm x 111mm x 94.5mm |
| Cable Length | 7m |
| Sensor Weight | 650g |
| Operation Voltage | 12~36VADC |
The RP42-9ME/RVP42-9MG radar sensor delivers a versatile solution for industrial door applications, boasting high customization, reliable detection capabilities, and energy-efficient operation.
Direction Recognition
Solutions
The JUTAI RP42-9ME Industrial Door Opening Sensor represents the epitome of advanced detection technology, offering unparalleled versatility, efficiency, and customization options for industrial door applications. With its innovative features and robust design, it ensures seamless operation and enhanced security for various industrial environments.
