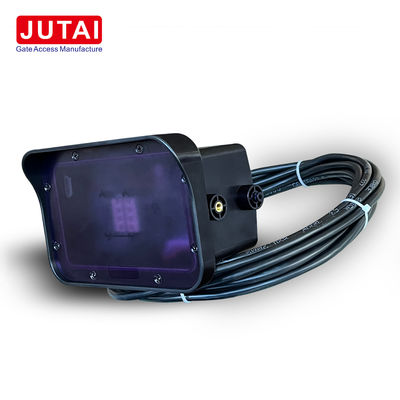

24.125GHz Radar Sensor with Dual Relay Outputs and IP65 Protection for Industrial Fast Speed Doors
| Place of Origin | China |
|---|---|
| Brand Name | JUTAI |
| Certification | FDA, E-MARK, CE, ISO, FCC, RoHS, DOT, ASTM, AS/NZS, CCC, GS |
| Model Number | RVP42-9ME |
| Minimum Order Quantity | 1 |
| Price | Negotiation |
| Packaging Details | Cartoon |
| Delivery Time | 5-8 days |
| Payment Terms | T/T,L/C,D/A,D/P,Western Union,Paypal,MoneyGram,Alipay |
| Supply Ability | 1000 pieces per month |
Product Details
| Output | 2 Relays Output. Max.48 VAC/DC. Max.Current 1A | Power Supply | 12-28VAC, 12-36VDC |
|---|---|---|---|
| Frequency | 24.125GHz | Detection Height | 2m To 9m |
| HS Code | 9031809090 | Package Size | 28.00cm * 13.00cm * 10.00cm |
| Highlight | Automatic Gate Activation Detector,Fast Speed Door 24GHz Radar Sensor,Industrial 24GHz Radar Sensor |
||
Product Description
Automatic Gate Activation Detector 24GHz Radar Sensor For Industrial Fast Speed Door
The RP42-9ME/RVP42-9MG is a high-performance motion radar detector designed for both vehicle and human detection, specifically engineered for industrial applications including fast-speed doors, garage doors, cold storage doors, and road gates.
Key Features & Advantages
Advanced Detection Technology
- Dual relay outputs for vehicle and pedestrian detection
- Recognition and filtering functions for horizontally moving vehicles or pedestrians (RVP12-9ME/RVP42-9MG variant)
- 24.125GHz Doppler radar technology for precise motion detection
Flexible Detection Configuration
- Adjustable narrow or wide detection areas suitable for all installation types
- Easy configuration with narrow lens attachment for focused detection
- Simple position adjustment via left/right rotation and tilt adjustment
- Fine-tune sensitivity using the built-in potentiometer
Intelligent Operation Modes
- Vehicle-detection relay activates upon detecting vehicles
- Person-detection relay triggers for human presence
- Combined mode activates both vehicle and person detection relays
- Configurable for exclusive vehicle-detection mode when required
Direction Recognition Capabilities
- Forward motion detection for approaching traffic
- Reverse motion detection for departing traffic
- Bidirectional sensing for comprehensive coverage
Operational Benefits
Energy Efficiency: Selective activation only with approaching traffic reduces energy consumption and prevents unnecessary door operation.
Automatic Control: Ensures doors remain open during usage and close automatically when traffic departs, optimizing workflow efficiency.
Hands-Free Operation: No manual intervention required, suitable for both new installations and retrofitting on dock and pedestrian doors.
Traffic Distinction: Advanced filtering capabilities differentiate between pedestrian, forklift, and parallel traffic detection.
Technical Specifications
| Feature | Details |
|---|---|
| Application Technology | Doppler radar |
| Transmission Frequency | 24.125GHz |
| Transmission Power | <20dBm |
| Detection Height | 2.0m~9.0m |
| Angle Adjustment | 0°-90° longitudinal |
| Detection Speed | 5cm/s~25km/s |
| Detection Area (30° Angle) | 3.0m x 3.5m @ height: 2m / 6.5m x 8.5m @ height: 9m |
| Operation Current | <100mA |
| Power Frequency | 50Hz |
| Temperature Range | -30 ºC~+60 ºC |
| Relative Humidity | 0% to 95%, no condensation |
| Protection Grade | IP65 |
| Relay Output | 24VDC @ 1A / 125VAC @ 0.5A |
| External Dimensions | 164mm x 111mm x 94.5mm |
| Cable Length | 7m |
| Sensor Weight | 650g |
| Operation Voltage | 12~36VADC |
Product Images

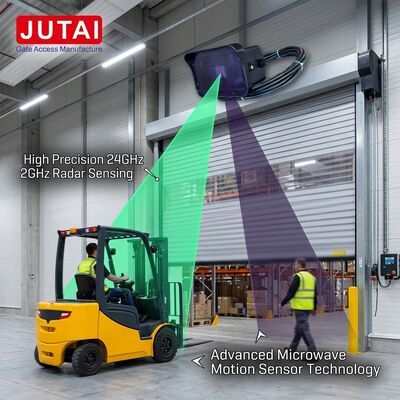

Direction Recognition Features
Application Solutions
The RP42-9ME/RVP42-9MG radar sensor delivers a versatile solution for industrial door applications, boasting high customization, reliable detection capabilities, and energy-efficient operation.
