Radar Vehicle Detection Systems For Barrier Gates Safety Anti Smashing 1-6m Detection
Product Details
| Operating Frequency | 24.150GHz | Input Voltage | 10-24VDC |
|---|---|---|---|
| Relay Contact | 1A@24VDC/AC | Relay Control Time | 1-6s Adjustable |
| Operating Temperature | -40℃~+70℃ | Waterproof | IP67 |
| Detection Range | 1-6m | Specification | 11.8*9.8*2.6cm |
| Highlight | barrier gates vehicle detection sensor,barrier gates radar vehicle detection systems,anti smashing vehicle detection sensor |
||
Product Description

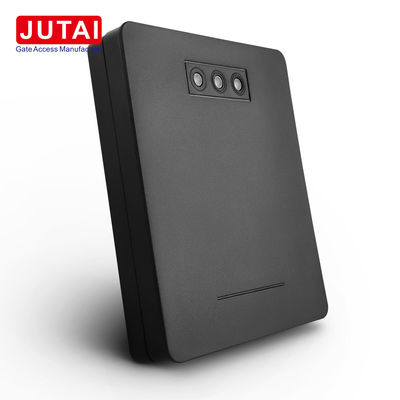

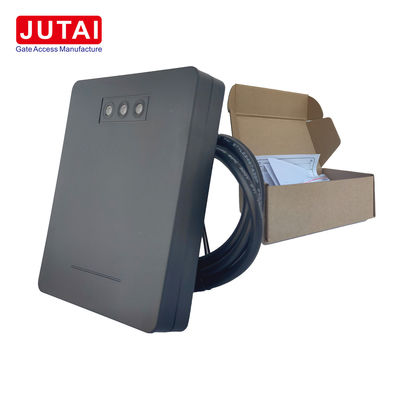

Radar Vehicle Detection Systems For Barrier Gates Safety Anti Smashing 1-6m Detection
Product Overview
The RD24-6M Barrier Gate Radar Sensor is engineered specifically for barrier gates, ensuring safe passage by detecting pedestrians or vehicles during gate closure. It seamlessly integrates with various barrier gate types, including straight arm, 90° arm, 180° arm, and fence arm gates.
Key Features
- Versatile Compatibility: Compatible with diverse barrier gate configurations to meet various application requirements
- Adjustable Detection Range: Easily tailor the detection range from 1 to 6 meters to suit different installation scenarios
- Multiple Detection Modes: Switch between pedestrian and vehicle detection modes or exclusively target vehicles, offering flexibility for access control needs
- Customizable Relay Output Hold Time: Tailor the relay output hold time from 1 to 6 seconds for precise gate opening durations
- High Sensitivity: Delivers exceptional sensitivity for accurate and swift detection of pedestrians and vehicles, ensuring reliable safety measures
Key Advantages
- K-Band Microwave Technology: Relies on precise K-band microwave technology for accurate detection and reliable performance
- Wide Coverage and High Resolution: Provides extensive coverage with detailed accuracy for enhanced security
- Versatile Application Activation: Efficiently activates automatic doors, industrial gates, and traffic barriers across various environments
- Easy Installation: Effortlessly mounts at heights of up to 20 feet (6 meters), ensuring convenient setup
- Adjustable Sensitivity Levels: Customizable sensitivity levels enable optimization for specific operational requirements
- Directional Detection: Programmable detection direction enhances adaptability for different usage scenarios
Technical Specifications
| Technology | Microwave Doppler Radar |
|---|---|
| Operating Frequency | 24.150 GHz |
| Input Voltage | 10-24 VDC ±10% |
| Detection Mode | Motion |
| Working Current | <150 mA |
| Output Power (EIRP) | <20 dBm |
| Relay Pulse Mode | 1-6s (Adjustable) |
| Detection Angle (Horizontal) | 0-28° |
| Detection Angle (Vertical) | 0-60° |
| Detection Range | 1-6M (3.3-19.7FT) |
| Dimensions | 1189826mm (0.390.320.09 FT) |
| Operation Temperature | -40℃ ~ +70℃ |
| Detectable Speed | 20-90 ms |
| Housing Materials | ABS |
| Relay Control Time | 1-6s Adjustable |
| Degree of Protection | IP65 |
Product Images
