xProduct Details
| Operating Frequency | 24.150GHz | Input Voltage | 10-24VDC |
|---|---|---|---|
| Relay Contact | 1A@24VDC/AC | Relay Control Time | 1-6s Adjustable |
| Operating Temperature | -40℃~+70℃ | Waterproof | IP67 |
| Detection Range | 1-6m | Specification | 11.8*9.8*2.6cm |
| Highlight | IP65 Radar Sensor for Parking Boom,Anti Collision Parking Boom Radar Sensor,IP65 Barrier Gate Control Radar Sensor |
||
Product Description
IP65 Anti Collision Radar Sensor for Parking Boom Barrier Gate Control

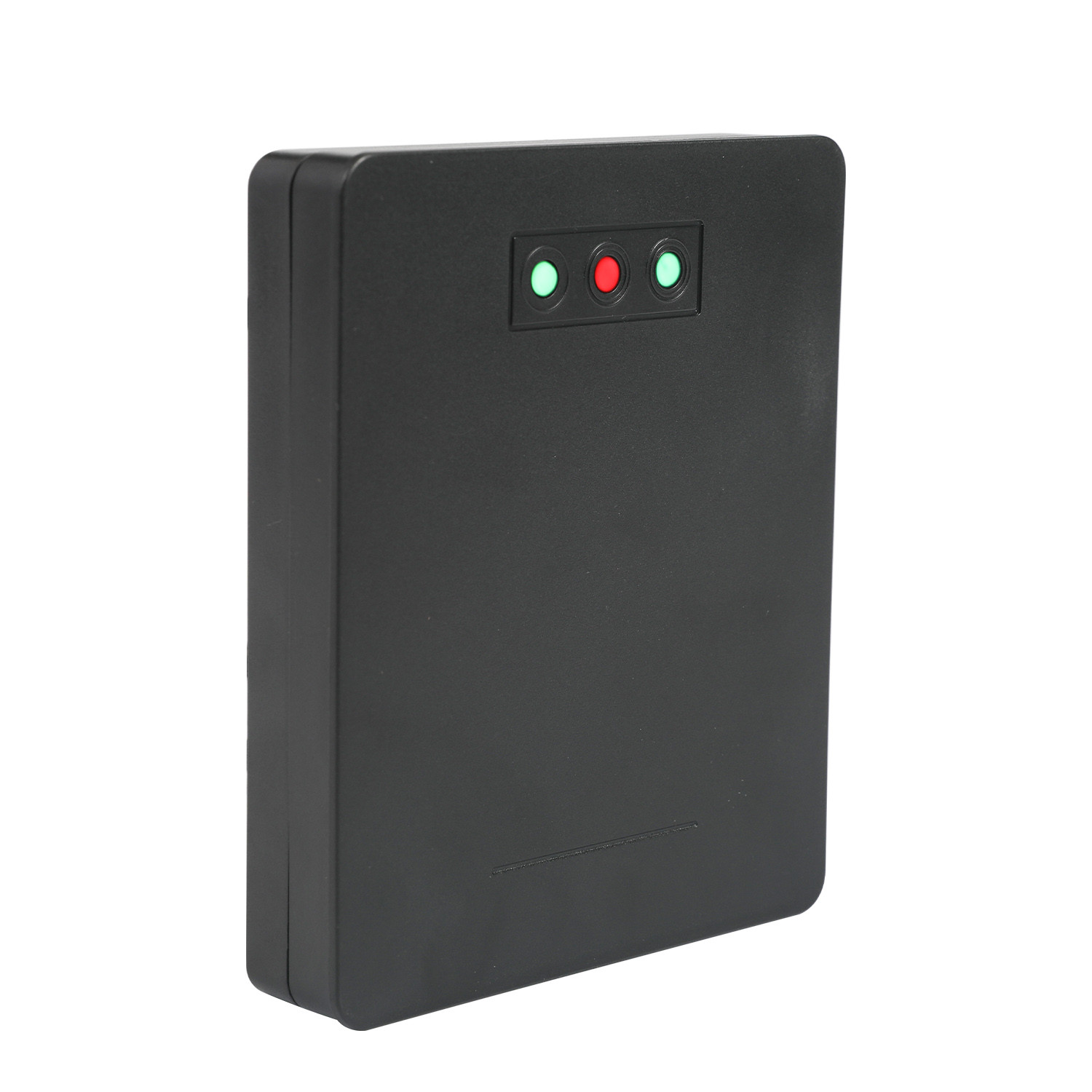

Introducing the RD24-6M Barrier Gate Radar Sensor
The RD24-6M Barrier Gate Radar Sensor is an advanced security solution designed specifically for barrier gates, ensuring the secure and efficient detection of pedestrians and vehicles. It seamlessly integrates with various barrier gate types, including straight arm, 90° arm, 180° arm, and fence arm gates, providing unparalleled versatility and reliability.
Key Features
| Feature | Description |
|---|---|
| Versatile Compatibility | Compatible with diverse barrier gate configurations to meet various application requirements. |
| Adjustable Detection Range | Easily tailor the detection range from 1 to 6 meters to suit different installation scenarios. |
| Multiple Detection Modes | Switch between pedestrian and vehicle detection modes or exclusively target vehicles. |
| Customizable Relay Output Hold Time | Tailor the relay output hold time from 1 to 6 seconds for precise gate opening durations. |
| High Sensitivity | Delivers exceptional sensitivity for accurate and swift detection of pedestrians and vehicles. |
Key Advantages
| Advantage | Description |
|---|---|
| K-Band Microwave Technology | Utilizes precise K-band microwave technology for accurate detection and reliable performance. |
| Wide Coverage and High Resolution | Provides extensive coverage with detailed accuracy for enhanced security. |
| Versatile Application Activation | Efficiently activates automatic doors, industrial gates, and traffic barriers in various environments. |
| Easy Installation | Effortlessly mounts at heights of up to 20 feet (6 meters), ensuring convenient setup. |
| Adjustable Sensitivity Levels | Customizable sensitivity levels enable optimization for specific operational requirements. |
| Directional Detection | Programmable detection direction enhances adaptability for different usage scenarios. |
Specification
| Parameter | Specification |
|---|---|
| Technology | Microwave Doppler Radar |
| Operating Frequency | 24.150 GHz |
| Input Voltage | 10-24 VDC ±10% |
| Detection Mode | Motion |
| Working Current | <150 mA |
| Output Power (EIRP) | <20 dBm |
| Relay Pulse Mode | 1-6s (Adjustable) |
| Detection Angle (Horizontal) | 0-28° |
| Detection Angle (Vertical) | 0-60° |
| Detection Range | 1-6 meters (3.3-19.7 feet) |
| Dimensions | 1189826 mm (0.390.320.09 feet) |
| Operating Temperature | -40°C ~ +70°C |
| Detectable Speed | 20-90 ms |
| Housing Materials | ABS |
| Relay Control Time | 1-6s Adjustable |
| Degree of Protection | IP65 |
Applications
- Boom Barrier Gate Safety Application
- Sliding Gate
- Gate Opener System
- Security Alarms and Warning System
- Home Security
- Gate Operator Safety Accessories
Conclusion
The RD24-6M Barrier Gate Radar Sensor offers a dependable solution for barrier gate safety management. Featuring adaptable compatibility, customizable settings, versatile detection modes, and heightened sensitivity, it ensures secure passage through barrier gates. This sensor delivers precise detection and reliable performance, making it an essential component in modern security systems.
About JUTAI
JUTAI is a pioneering leader in the development of advanced security and safety technologies. With a robust R&D team and extensive industry experience, we are committed to delivering high-quality, innovative solutions that meet the evolving needs of our clients. Our dedication to customization and excellence ensures that we can tailor our products to fit your specific requirements, providing the most effective and reliable security solutions available.
