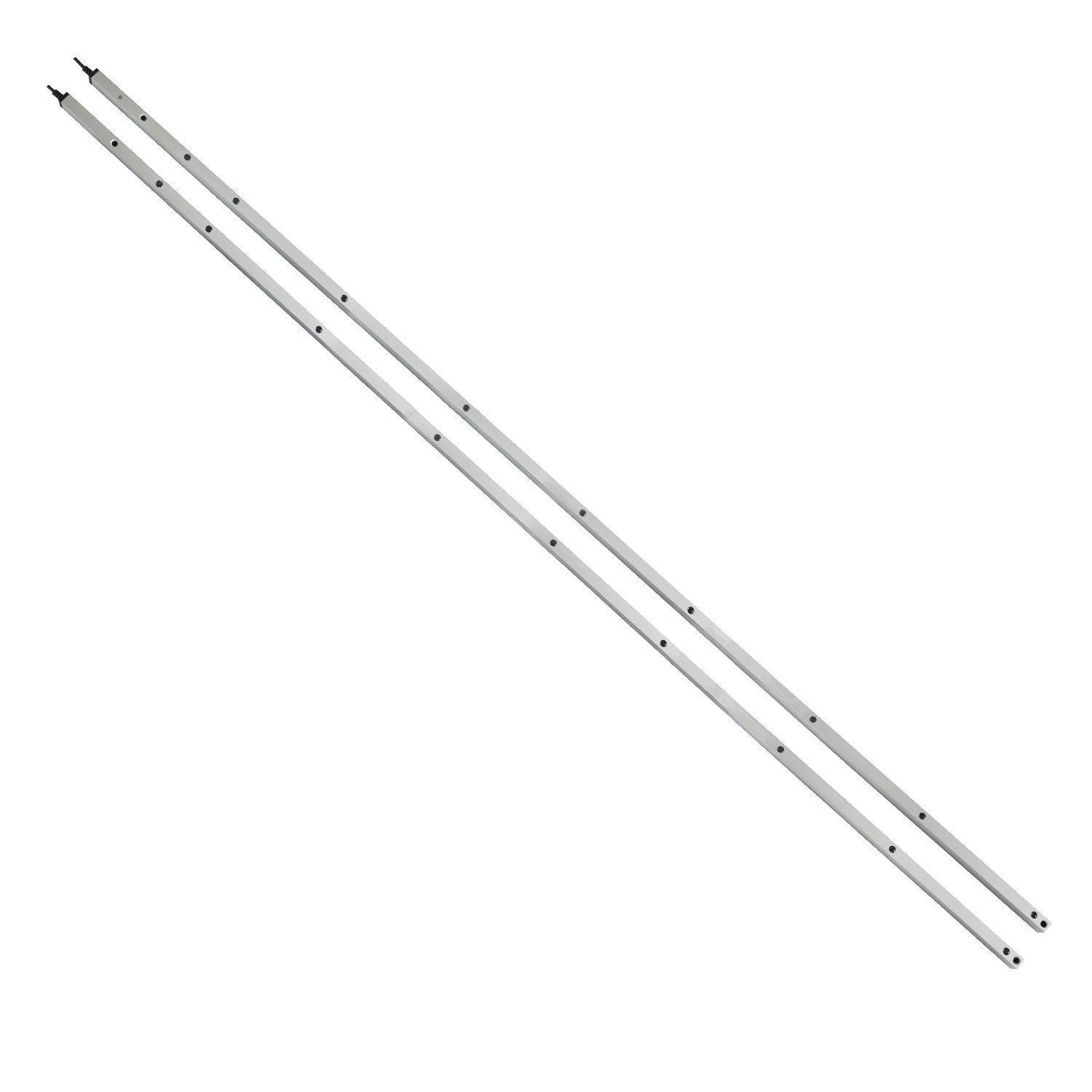

Slim Model Light Curtain Blanking 8m Detection Range With Relay Output

Product Description

The Door Sensor Photocell Light Curtain by Shenzhen Jutai Comm Co., Ltd.

Introducing the Blanking Light Curtain, a state-of-the-art safety solution designed to prevent accidents and ensure secure operation of industrial doors. Utilizing advanced technology and robust construction, this sensor offers strong light resistance and active infrared detection, making it ideal for safeguarding industrial door operations in challenging lighting environments. The sensor boasts an impressive 8-meter detection range and rapid response time, ensuring reliable safety monitoring and enhanced security measures. Invest in the future of workplace safety with this industrial-grade sensor, engineered for optimal performance and long-range safety sensing capabilities.

Advantages and Features

• Versatile Integration: This sensor seamlessly integrates into all types of door control systems, ensuring easy and compatible use across various platforms.
• Flexible Mounting Options: Designed with adaptability in mind, this sensor can be directly integrated into the door edge, allowing for straightforward installation even with door blanking configurations.
• Automatic Door Safety: The CL15-8L8 is a compact light curtain specifically engineered for automatic doors and gates, providing robust safety measures to prevent accidents.
• Wide Application Range: Suitable for high-speed doors, sectional doors, rolling doors, vertical closing telescopic doors, and freight elevators, making it versatile for numerous industrial applications.
• Accurate Detection: Utilizing through-beam technology, these safety light curtains accurately detect the presence of people or objects, ensuring timely door opening signals and accident prevention.
• Output Options: Offers NO/NC and COM output methods, providing flexibility for integration with various door control systems.
• Efficient Operation: With a low working current of less than 20mA at DC12V and a working voltage range of DC12-24V, this sensor ensures energy-efficient operation without compromising performance.

Key Specifications

• Model: CL15-8L8
• Technology: Active Infrared Sensor with Strong Light Resistance
• Detection Range: 8 meters
• Response Time: Swift and reliable
• Working Current: <20mA at DC12V
• Working Voltage: DC12-24V
• Output Methods: NO/NC and COM
• Applications: High-speed doors, sectional doors, rolling doors, vertical closing telescopic doors, freight elevators

Installation and Application

1. Remove Covers and Connect Wires:

   • Detach the sensor’s top and bottom covers.
   • Establish wire connections and route the thread end through the designated threaded port.

2. Position and Mark Holes:

   • Confirm the installation position by aligning the transmitter and receiver in parallel.
   • Accurately mark hole positions on the wall.

3. Drill and Fix:

   • Use a percussion drill to create holes at the marked locations.
   • Insert wall plugs into the drilled holes and secure them with screws.

4. Mount Transmitter and Receiver:

   • Affix the transmitter and receiver onto the wall using M3*25 screws.
   • Connect the power supply and test the sensor alignment.
   • Adjust the angle if needed by rotating the aluminum tube.
   • Once aligned, securely tighten the rotating screw.

5. Replace Covers and Final Testing:

   • Secure the sensor’s top and bottom covers with M2*8 screws.
   • Perform a final test to ensure the sensor functions correctly.

Elevate Workplace Safety

Enhance the safety and security of your industrial operations with the Door Sensor Photocell Light Curtain. This advanced sensor is designed to provide reliable and accurate detection, flexible installation options, and efficient operation. Suitable for a wide range of applications, the CL15-8L8 light curtain is the ideal choice for enhancing safety in industrial environments. Trust in the quality and effectiveness of Shenzhen Jutai Comm Co., Ltd.'s innovative sensor solutions for optimal security and peace of mind.

Enhance industrial door safety with our 1500mm Infrared Light Curtain sensor. Ideal for fast-speed doors with an 8m detecting range.

Enhance industrial door safety with the 1500mm Infrared Light Curtain sensor from Shenzhen Jutai Comm Co., Ltd. This sensor can detect up to 8m with fast speed, ensuring a secure environment in industrial settings. Invest in safety today!
