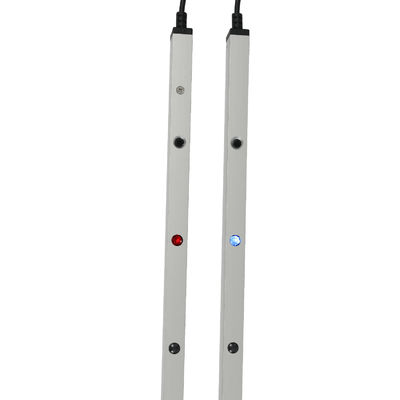

1500mm Length Blanking Infrared Light Curtain 8m Detecting Range Fast Door Sensor
Product Details
| Material | Aluminum Alloy | Feature | Corrosion Resistant |
|---|---|---|---|
| IP Rating | IP67 | Supply Voltage | DC12-24V |
| Sensing Distance | 8m | Operating Temperature | -20~60℃ |
| Operating Current | <50mA | Output | No/Nc, COM |
| Working Current | <20mA@DC12V | Specification | 150*2.1*1.5cm |
| Highlight | infrared light curtain 8m detecting range,1500mm infrared curtain,1500mm infrared light curtain |
||
Product Description
1500mm Length Blanking Infrared Light Curtain 8m Detecting Range Fast Door Sensor
The 1500mm Length Blanking Infrared Light Curtain with 8m detecting range is an advanced safety device designed specifically for fast door applications in industrial settings.
Product Overview
The Blanking Light Curtain by Shenzhen Jutai Comm Co., Ltd. is an advanced safety device designed to enhance the security and functionality of industrial doors. Featuring a robust active infrared sensor with strong light resistance, this sensor ensures reliable operation even in challenging lighting conditions. With an impressive detection range of up to 8 meters and a rapid response time, it provides a critical layer of protection for industrial settings.
Technical Features and Benefits
- Seamless System Integration: Designed for easy integration with various door control systems
- Adaptable Installation: Direct integration into the door edge for different door configurations
- Compact and Efficient: CL15-8L8 model delivers reliable safety in minimal footprint
- Broad Application Scope: Ideal for high-speed doors, sectional doors, rolling doors, and freight elevators
- Precise Detection Capabilities: Utilizes through-beam technology for accurate detection
- Flexible Output Options: Multiple output methods (NO/NC and COM) for system integration
- Energy Efficiency: Low current consumption of less than 20mA at DC12V
Key Specifications
- Model: CL15-8L8
- Technology: Active Infrared Sensor with Strong Light Resistance
- Detection Range: 8 meters
- Response Time: Fast and reliable
- Working Current: <20mA at DC12V
- Working Voltage: DC12-24V
- Output Methods: NO/NC and COM
Detailed Specifications
| Features | Integrated in all types of door control systems |
|---|---|
| Mounting Type | Direct integration into the door edge due to door blanking |
| Model Number | CL15-8L8 (8-beams, 150cm height) |
| Type | Safety light curtain |
| Usage | High-speed doors, Sectional doors, Rolling doors, Vertical closing telescopic doors, Freight elevators |
| Theory | Through-beam safety light curtains are used for fast doors and rolling shutter doors to prevent clipping (people or objects), and can accurately detect passing people or objects to provide door opening signals to avoid potential safety hazards. |
| Output | NO/NC, COM |
| Working Current | <20mA@DC12V |
| Working Voltage | DC12-24V |
| Detection Range | Maximum 8m |
| Protective Height | Maximum 1225mm (concealing mode), 1305mm (normal mode) |
| Beams | 8-beams |
| LED Status | Receiver: red light (object blocked) blue light (unblocked) blue light flash (Emitter and receiver not aligned) Transmitter: blue light constant (normal) red light flash (voltage below 9v, above 28v) |
| Operating Temperature | -20 ~ +70℃ |
| Protection Level | IP67 |
| Shell Material | Aluminum alloy |
Installation Guidelines
- Remove Covers and Connect Wires: Detach the top and bottom covers, establish wire connections and route through threaded port
- Position and Mark Holes: Align transmitter and receiver in parallel and mark hole positions
- Drill and Fix: Use percussion drill to create holes, insert wall plugs and secure with screws
- Mount Transmitter and Receiver: Attach to wall using M3*25 screws, connect power supply and test alignment
- Replace Covers and Final Testing: Reattach covers with M2*8 screws and conduct final functionality test
Enhance industrial door safety with our 1500mm Infrared Light Curtain sensor. Ideal for fast-speed doors with an 8m detecting range, ensuring a secure environment in industrial settings.
