110-240V Single Channel Delay Protection Function Induction Loop Detector Sensor 2000uH

110-240V Single Channel Delay Protection Function Induction Loop Detector Sensor 2000μH

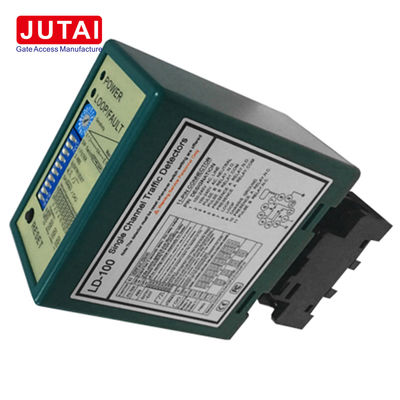

Product Name: JUTAI LD-100 Parking Barrier Gate Loop Detector (Loop Sensor)

Product Description

The JUTAI LD-100 Parking Barrier Gate Loop Detector is a cutting-edge solution designed to enhance the efficiency and reliability of parking barrier gate systems. Expertly engineered, this loop sensor is adept at identifying and detecting a wide range of vehicles, from oversized trucks to motorcycles, ensuring smooth and automatic gate operations. It is an indispensable tool for optimizing parking management systems.

Advantages

Wide Sensing Range and High Sensitivity

• Comprehensive Detection: Capable of accurately detecting various vehicles within a sensing range of 15 to 2000μH.
• Enhanced Sensitivity: High sensitivity ensures dependable performance, crucial for diverse parking environments.

Automatic Reset Function

• Self-Resetting Capability: The detector features an automatic reset function that activates in case of a malfunction, promoting system stability and reducing the need for manual intervention.

Multiple Detection Level Selection

• Customizable Detection Levels: Offers 16 selectable levels ranging from 0.008% DL/L to 2.50% DL/L, allowing adjustments to suit specific application requirements and ensuring optimal detection accuracy.

40000V Lightning Protection

• Robust Protection: Equipped with advanced lightning protection up to 40000V, this detector is shielded against lightning strikes, significantly enhancing its durability and operational lifespan.

Wide Operating Environment Range

• Versatile Performance: Designed to operate effectively in a wide temperature range from -40°C to +70°C, ensuring reliable function even in extreme weather conditions.

Key Specifications

• Model: LD-100
• Sensing Range: 15 to 2000μH
• Sensitivity: High, with 16 adjustable levels (0.008% DL/L to 2.50% DL/L)
• Lightning Protection: Up to 40000V
• Operating Temperature: -40°C to +70°C
• Application: Suitable for parking barrier gates, capable of detecting a variety of vehicles including oversized trucks and motorcycles

Installation Guidelines

1. Positioning and Connection:

   • Choose an appropriate location for the loop detector, ensuring it is placed where it can accurately detect vehicles.
   • Connect the loop detector to the barrier gate control system, following the provided wiring instructions.

2. Calibration and Testing:

   • Calibrate the detector by selecting the appropriate detection level based on the specific needs of your application.
   • Test the system to ensure accurate vehicle detection and proper gate operation.

3. Final Adjustments:

   • Make any necessary adjustments to the sensitivity settings to optimize performance.
   • Conduct a final test to confirm the system's reliability and effectiveness.

Enhance Parking Management Systems

The JUTAI LD-100 Parking Barrier Gate Loop Detector is an essential component for modern parking management systems. Its wide sensing range, high sensitivity, and robust features such as automatic reset and lightning protection ensure reliable and efficient operation. Adaptable to various environmental conditions, this loop detector is the perfect solution for enhancing the functionality and security of parking barrier gates.

Product parameters:

Switch 2 (Dipswitch Settings)


1.DIP 1 & DIP 2 Setting Special Functions


2.DIP 3 & DIP 4 Setting Relay B Output


3. DIP 5 Setting Automatic Reset


4. DIP 6 & DIP 7 & DIP 8 Setting Relay A Delay


5. DIP 9 & DIP 10 Setting Frequency (40 K to 100 KHz). Used to avoid the interference



Loop Installation:


Trouble Shooting:

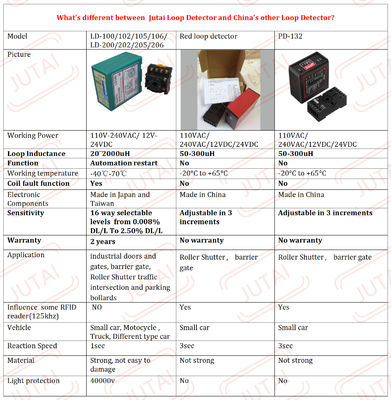

Compared to other brands



Mass Production:

Our production line ensures efficient mass production, rigorous quality control, and thorough pre-shipment testing to deliver Loop detector products of the utmost perfection.




LD-100 single channel, boxed, 1 type 11pin connects 100-240VAC(EU standard)
LD-102 single channel, boxed, 1 type 11pin connects 12-24VADC(EU standard)
LD-105 single channel, boxed, 2 type 11pin connects 100-240VAC(USA standard)
LD-106 single channel, boxed, 2 type 11pin connects 12-24VADC(USA standard)



Certification:




Company Overview

Shenzhen Jutai Comm Co., Ltd. is a leader in the field of advanced safety and detection solutions, boasting a strong research and development capability. Our commitment to innovation and excellence allows us to offer customizable products that meet the specific needs of our clients. Trust in our expertise to deliver reliable, high-performance solutions tailored to your unique requirements.

JUTAI is a high-tech, privately-owned enterprise specializing in the production, research, development, and sales of security products. Our company excels in developing integrated systems for access control, parking management, traffic lights, and more, creating a unified intelligent platform.

We lead the industry with innovative technologies in infrared detection and radar sensing devices. At JUTAI, we are committed to providing premium products, comprehensive system solutions, and excellent technical support. Our R&D philosophy focuses on diligence and continuous improvement, aiming to exceed industry standards and offer safer, more convenient services.

Our success is rooted in the success of our customers. Guided by principles of innovation, transcendence, and excellence, we strive to deliver cutting-edge solutions that enhance everyday living.


FAQ:

1. How can we trust you? JUTAI is a professional manufacturer of vehicle loop detectors with over 15 years of experience. We have tested all brands from Europe and China, understanding the differences. Our loop detector is suitable for your projects.

2. Why choose us? We aim for a Win-Win Business Situation!!!

   • JUTAI loop detector comes with a 2-year warranty from the date of delivery.
   • 24/7 after-sales service, with online support for any technical issues.
   • We accept small or big orders (OEM/ODM).
   • Replacement of new products in case of any product problem.
   • Market protection for customers.

3. What is your MOQ? We accept sample orders or big orders. We understand new customers may want to test samples to assess our quality and service.

4. What is your delivery time? Around 2 to 10 working days depending on the exact order quantity and stock availability.

5. Can your products be customized? Yes, certainly. Please discuss your exact requirements with our sales team, as we provide OEM/ODM services.
