Turn On / Off 10-90MS Gate Barrier Loop Detector For Parking Management System
| Place of Origin | China |
|---|---|
| Brand Name | JUTAI |
| Certification | CE |
| Model Number | LD-100 |
| Minimum Order Quantity | 1 |
| Price | Negotiable |
| Packaging Details | Carton Parcking(13.5*8.5*5cm)/0.3kg/unit |
| Delivery Time | 3-5 working days after receipt the payment |
| Payment Terms | T/T, L/C, D/A, D/P, Western Union, Paypal, , MoneyGram, Alipay |
| Supply Ability | 10000pcs/month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
WeChat: 0086 18588475571
skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Power Supplu | 110-240v | Self-turning Range | 20-2000μH |
|---|---|---|---|
| Sensitivity | 6 Way Selectable/Highest0.010%DL/L/ Lowest 2.56%DL/L | Frequency | Four Step Switch Selectable20-80KHz |
| Operation Tempts | -40℃ To +70℃ / (-111°F To +158°F) | Fault Output | Blinks Slowly: May Indicate A Short Circuit Or Insufficient Number Of Turns Blinks Faster: May Indicate An Open Loop Or Excessive Number Of Turns |
| Response Times | Turn-on 10-90MS / Turn-off 10-90MS | Relay | Presence Relay / Fault Relay |
| Highlight | 10-90ms gate barrier loop detector,10-90ms barrier gate loop detector,parking management system barrier gate loop detector |
||
Product Description
Single Channel Vehicle Loop Detector for boom barrier gate Parking Management System
Product Name: JUTAI LD-100 Parking Barrier Gate Loop Detector (Loop Sensor)
Product Description
The JUTAI LD-100 Parking Barrier Gate Loop Detector is an advanced technology solution crafted to boost the efficiency and reliability of parking barrier gate systems. This state-of-the-art loop sensor is adept at identifying a wide range of vehicles, from oversized trucks to motorcycles, ensuring smooth and automatic gate operations. It is a vital tool for optimizing modern parking management systems.
Advantages
| Feature | Description |
|---|---|
| Wide Sensing Range and High Sensitivity | Comprehensive Detection: Accurately identifies vehicles within a sensing range of 15 to 2000μH.<br>Enhanced Sensitivity: High sensitivity ensures reliable performance in diverse environments. |
| Automatic Reset Function | Self-Resetting Capability: Automatically resets in case of a malfunction, enhancing system stability and minimizing the need for manual intervention. |
| Multiple Detection Level Selection | Customizable Detection Levels: Provides 16 selectable levels from 0.008% DL/L to 2.50% DL/L, allowing fine-tuning for optimal detection accuracy. |
| 40000V Lightning Protection | Robust Protection: Features advanced lightning protection up to 40000V, safeguarding the detector against lightning strikes and extending its operational lifespan. |
| Wide Operating Environment Range | Versatile Performance: Designed to operate effectively across a wide temperature range from -40°C to +70°C, ensuring reliable function even in extreme weather conditions. |
Installation Guidelines
| Step | Instructions |
|---|---|
| Positioning and Connection | Choose Location: Select an optimal location for the loop detector to ensure accurate vehicle detection.<br>Connect: Follow the wiring instructions to connect the loop detector to the barrier gate control system. |
| Calibration and Testing | Calibrate: Choose the appropriate detection level based on specific requirements.<br>Test: Verify accurate vehicle detection and proper gate operation. |
| Final Adjustments | Adjust Sensitivity: Optimize performance by fine-tuning the sensitivity settings.<br>Confirm Reliability: Conduct a final test to ensure the system's reliability and effectiveness. |
Key Specifications
| Specification | Details |
|---|---|
| Model | LD-100 |
| Sensing Range | 15 to 2000μH |
| Sensitivity | High, with 16 adjustable levels (0.008% DL/L to 2.50% DL/L) |
| Lightning Protection | Up to 40000V |
| Operating Temperature | -40°C to +70°C |
| Application | Ideal for parking barrier gates, capable of detecting a variety of vehicles, including oversized trucks and motorcycles |
Switch 2 (Dipswitch Settings)
1.DIP 1 & DIP 2 Setting Special Functions
2.DIP 3 & DIP 4 Setting Relay B Output
3. DIP 5 Setting Automatic Reset
4. DIP 6 & DIP 7 & DIP 8 Setting Relay A Delay
5. DIP 9 & DIP 10 Setting Frequency (40 K to 100 KHz). Used to avoid the interference
Loop Installation:
Trouble Shooting:

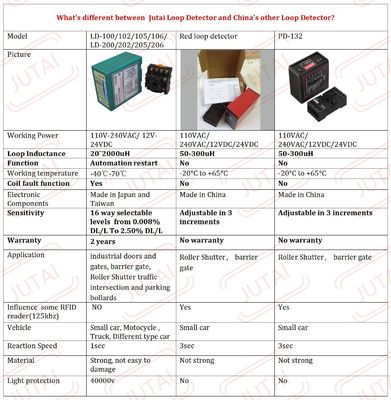

Compared to other brands
Mass Production:
Our production line ensures efficient mass production, rigorous quality control, and thorough pre-shipment testing to deliver Loop detector products of the utmost perfection.

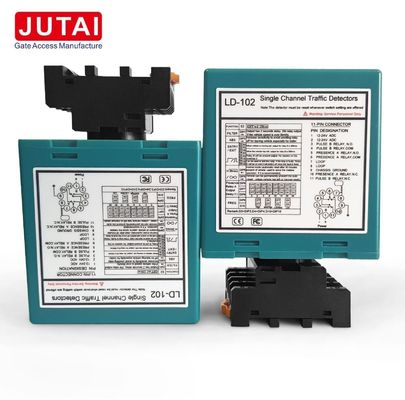

LD-100 single channel, boxed, 1 type 11pin connects 100-240VAC(EU standard)
LD-102 single channel, boxed, 1 type 11pin connects 12-24VADC(EU standard)
LD-105 single channel, boxed, 2 type 11pin connects 100-240VAC(USA standard)
LD-106 single channel, boxed, 2 type 11pin connects 12-24VADC(USA standard)
Enhance Parking Management Systems
The JUTAI LD-100 Parking Barrier Gate Loop Detector is a vital component for modern parking management systems. Its extensive sensing range, high sensitivity, and robust features like automatic reset and lightning protection ensure reliable and efficient operation. Adaptable to various environmental conditions, this loop detector significantly enhances the functionality and security of parking barrier gates.
