IP65 Safety Grating UV Resistant Outdoor 30 Meter Detection Residential Safety Monitoring

Place of Origin	China
Brand Name	JUTAI
Certification	CE
Model Number	PB10-4L15
Minimum Order Quantity	1
Price	Negotiation
Packaging Details	Cartoon
Delivery Time	5 - 8 working days
Payment Terms	T/T, L/C, D/A, D/P, Western Union, Paypal, , MoneyGram, Alipay
Supply Ability	1000 pieces per month

IP Rating

IP65

HS Code

8531100000

Specification

112*13*8.5

Function Type

Infrared Range And Communication System

Detection Type

Photon Detector

Output Signal Type

Digital Type

Highlight

IP65 Outdoor Safety Grating

30 Meter Safety Grating Residentia Monitoring

Residential UV Resistant Safety Grating

Working Principle

Infrared beam sensors operate by emitting, propagating, and receiving infrared radiation to detect objects. Here's a detailed breakdown of their functionality:

Infrared Emission:
An infrared emitter generates a focused beam of infrared light.

Beam Propagation:
The emitted beam travels through a predetermined path, creating an invisible detection line.

Target Interaction:
When an object crosses this path, it interacts with the beam through reflection, absorption, or scattering of the infrared light.

Reflection or Scattering:
The infrared receiver within the sensor captures the reflected or scattered light from the object.

Signal Processing:
The sensor processes the received signal, analyzing parameters such as signal strength and frequency to determine the presence, distance, or other relevant characteristics of the object.

Output Results:
The analyzed data is converted into electrical or digital signals, which can then trigger specific actions, alarms, or data logging.

Product Overview

Our Safety Light Curtain provides thorough protection for industrial doors, barrier gates, and home security systems. The standard model, which stands at 1 meter tall with 4 infrared beams, delivers outstanding performance and reliability.

Key Features

Durability:
Designed to endure significant light interference and harsh outdoor environments, with an IP65 waterproof rating ensuring high resilience.

Detection Range:
The device offers a detection range of over 15 meters, providing wide-area coverage.

Functionality:

Industrial Door Protection:
Automatically reopens the door if an object is detected during closure, ensuring safety.
Barrier Gate Safety:
Ideal for barrier gates, reopening promptly if a person or vehicle is detected during closure.
Home Security:
Enhances security by triggering a relay output upon detecting unauthorized entry, effectively deterring intruders.

Customization Options

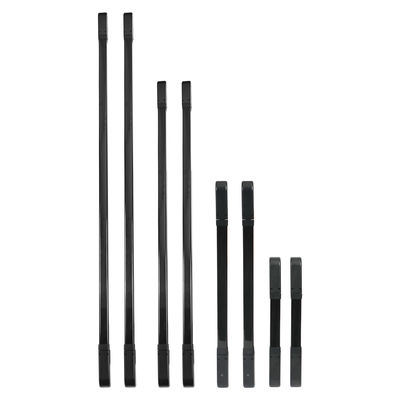

Our Safety Light Curtain Sensor can be customized in various lengths and beam configurations to meet specific requirements.

Conclusion

Enhance your peace of mind and safety with our Safety Light Curtain Sensor. Rely on our dependable and customizable solutions to effectively safeguard your premises.

Specification

Model: PB20-16L15
Technology: Infrared Optical Technique
Detection Mode: Presence detect
Number of Beams: 4 (Customizable)
Length: 1m (Customizable)
Detection Distance: 15m
Operating Voltage: 12-24V
Transmitter Operating Current: <50mA
Receiver Operation Current: <50mA
Response Time: 50/100/150/200ms adjustable
Trigger Time: Blocks a beam of light and triggers in 2 seconds; blocking adjacent 2 beams or more triggers immediately
Trigger Method: Single beam trigger or Multi-beam trigger (selectable)
Working Temperature: -20~60℃
Relative Humidity: Up to 90%RH (non-condensing)
Alarm Output: Wired Output, relay Output 30VDC@2A, 125VAC@1A
Output Way (Wired Model): Wired transmission (NO/NC)
Rotation Angle: 180 degrees horizontal
IP Level: IP65
Material: Aluminum Alloy and PC Plastic
