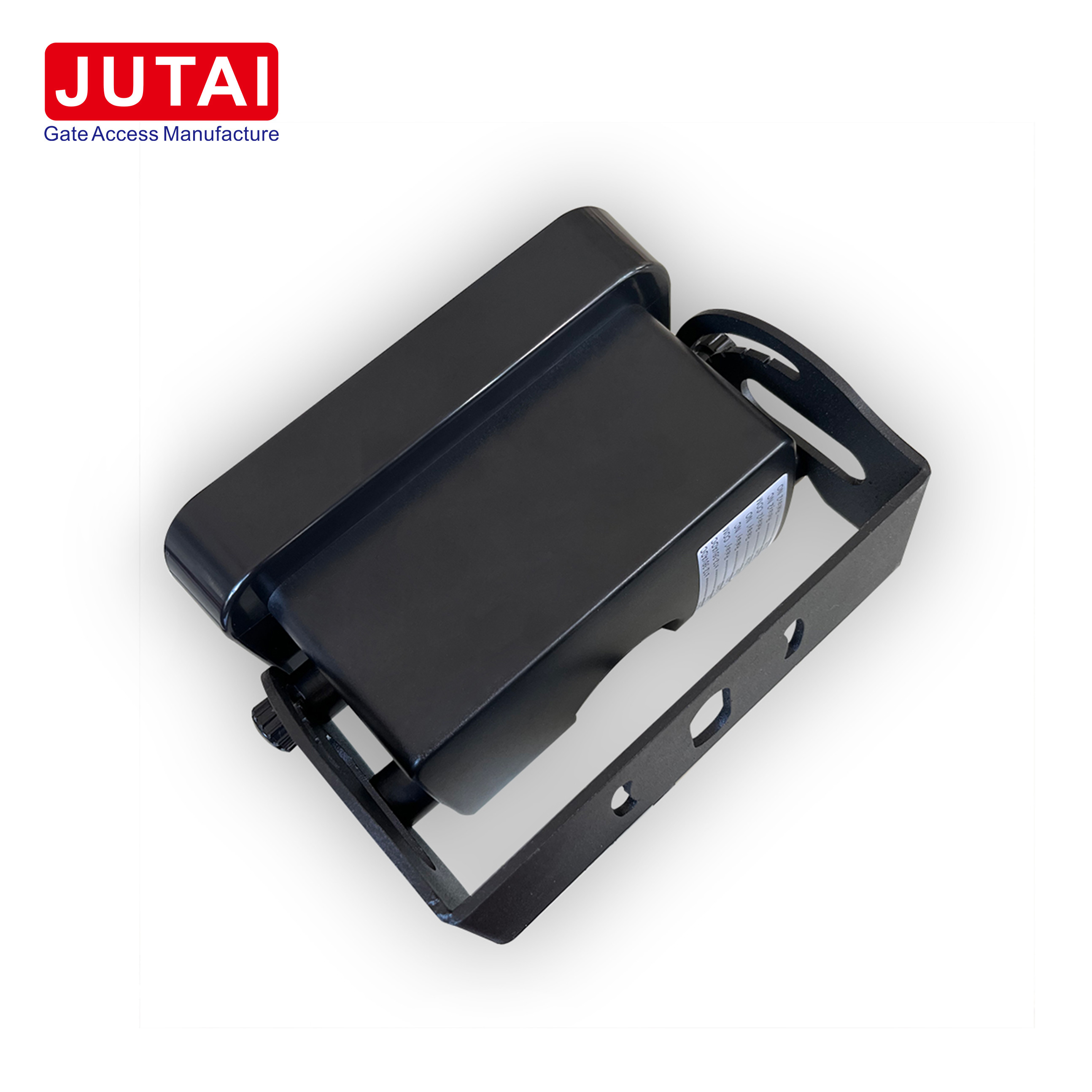

Microwave Doppler Radar IP65 Automatic Industrial Doors Gates Barriers Vehicle Detection

Place of Origin	China
Brand Name	JUTAI
Certification	FDA, E-MARK, CE, ISO, FCC, RoHS, DOT, ASTM, AS/NZS, CCC, GS
Model Number	RVP42-9ME
Minimum Order Quantity	1
Price	Negotiation
Packaging Details	Cartoon
Delivery Time	5-8 days
Payment Terms	T/T, L/C, D/A, D/P, Western Union, Paypal, , MoneyGram, Alipay
Supply Ability	1000 pieces per month

Output

2 Relays Output. Max.48 VAC/DC. Max.Current 1A

Power Supply

12-28VAC, 12-36VDC

Frequency

24.125GHz

Detection Height

2m To 9m

HS Code

9031809090

Package Size

28.00cm * 13.00cm * 10.00cm

Highlight

IP65 Microwave Doppler Radar

Vehicle Detection Microwave Doppler Radar

1. Precision Detection Technology:

Advanced Microwave Motion Radar: Ensures accurate detection of vehicles and pedestrians in industrial settings.
Tailored for Industrial Applications: Ideal for garage doors, cold storage facilities, road gates, and more.

2. Dual Relay System:

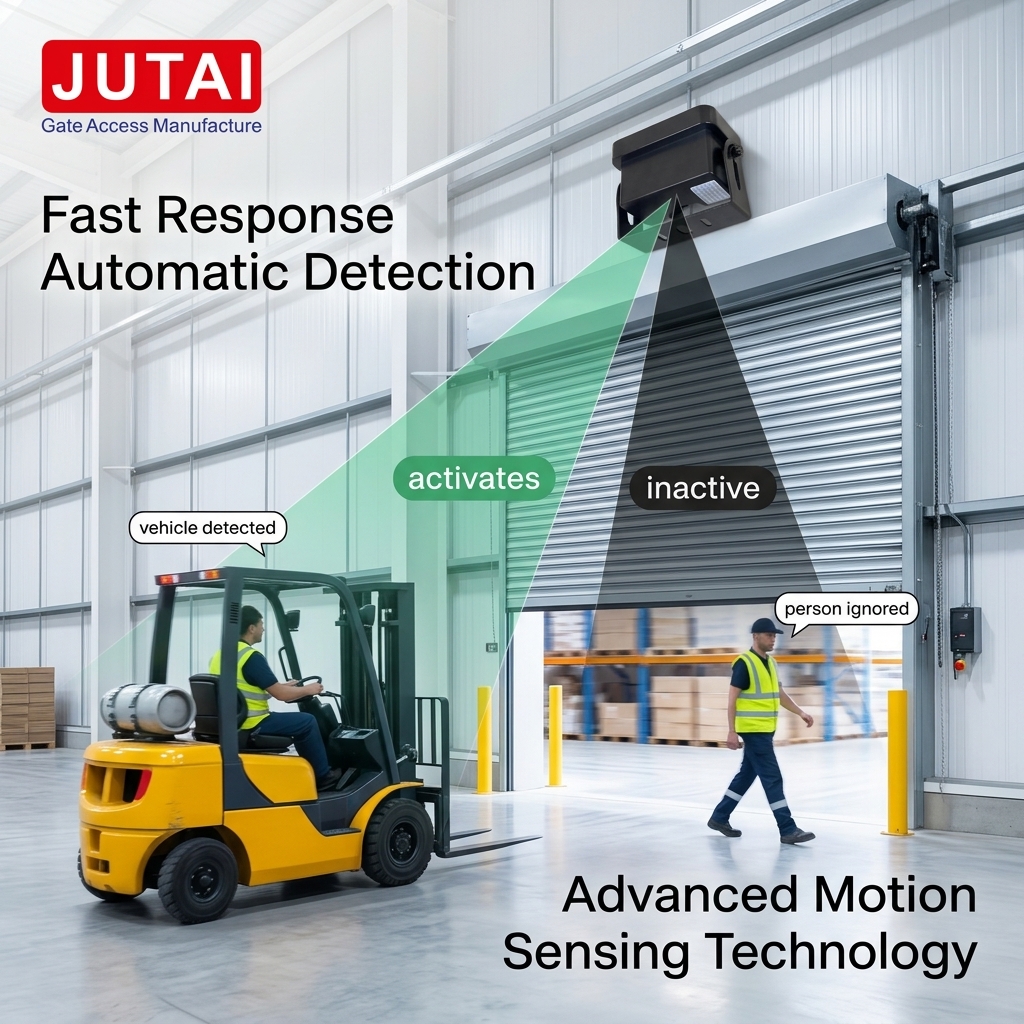

Vehicle and Pedestrian Detection: Dual relays activate corresponding outputs based on motion type.
Customizable Settings: Exclusive vehicle-detection mode or combined mode options available.

3. Adjustable Detection Zones:

Versatile Installation: Narrow and wide settings accommodate various installation types.
Precise Sensitivity Adjustment: Fine-tune detection area sensitivity for optimal performance.

4. Direction Recognition:

Configurable Sensing Directions: Forward, reverse, or bidirectional sensing options.
Accurate Motion Detection: Ensures reliable detection of approaching and departing traffic.

5. Energy Efficiency and Automation:

Selective Activation: Enhances energy efficiency by activating only with approaching traffic.
Automatic Door Control: Seamless operation with hands-free opening and closing functionality.

6. Easy Installation and Durability:

User-Friendly Design: Suitable for new installations and retrofitting onto existing doors.
Durable Construction: IP65 protection rating ensures resilience in harsh industrial environments.

7. Customizable Sensing Area:

Tailored Function Activation: Adjust detection height, speed, and area for specific application requirements.
Enhanced Versatility: Fine-tune sensor parameters for optimal performance in diverse industrial settings.

Feature Details:

Application Technology: Utilizes Doppler radar technology for precise detection.
Transmission Frequency: Operates at a frequency of 24.125GHz for efficient signal transmission.
Transmission Power: Ensures transmission power is kept below 20dBm for safety and regulatory compliance.
Detection Height: Offers adjustable detection height ranging from 2.0m to 9.0m to cater to varying installation requirements.
Angle Adjustment: Allows for longitudinal angle adjustment from 0° to 90° for optimal coverage.
Detection Speed: Capable of detecting motion ranging from 5cm/s to 25km/s, ensuring accurate detection across a wide range of speeds.
Detection Area (30° Angle): Provides a detection area of 3.0m x 3.5m at a height of 2m, and 6.5m x 8.5m at a height of 9m, offering flexibility to cover different-sized spaces.
Operation Current: Operates at a low current consumption of less than 100mA for energy efficiency.
Power Frequency: Works at a standard power frequency of 50Hz for compatibility with most power systems.
Temperature Range: Designed to withstand extreme temperatures ranging from -30 ºC to +60 ºC, ensuring reliable operation in harsh environments.
Relative Humidity: Withstands relative humidity levels from 0% to 95% without condensation, suitable for a variety of environmental conditions.
Protection Grade: Boasts an IP65 protection rating, offering protection against dust and water ingress, making it suitable for outdoor use.
Relay Output: Provides relay outputs of 24VDC @ 1A or 125VAC @ 0.5A for seamless integration with door control systems.
External Dimensions: Compact dimensions of 164mm x 111mm x 94.5mm ensure easy installation in various locations.
Cable Length: Comes with a generous cable length of 7m for convenient connectivity.
Sensor Weight: Lightweight design weighing only 650g facilitates easy handling and installation.
Operation Voltage: Operates within a voltage range of 12V to 36VADC, ensuring compatibility with different power sources.

Elevate your industrial door automation with the RP42-9ME/RVP42-9MG Microwave Motion Radar Sensor, offering precision detection, seamless operation, and customizable features tailored to your needs.
